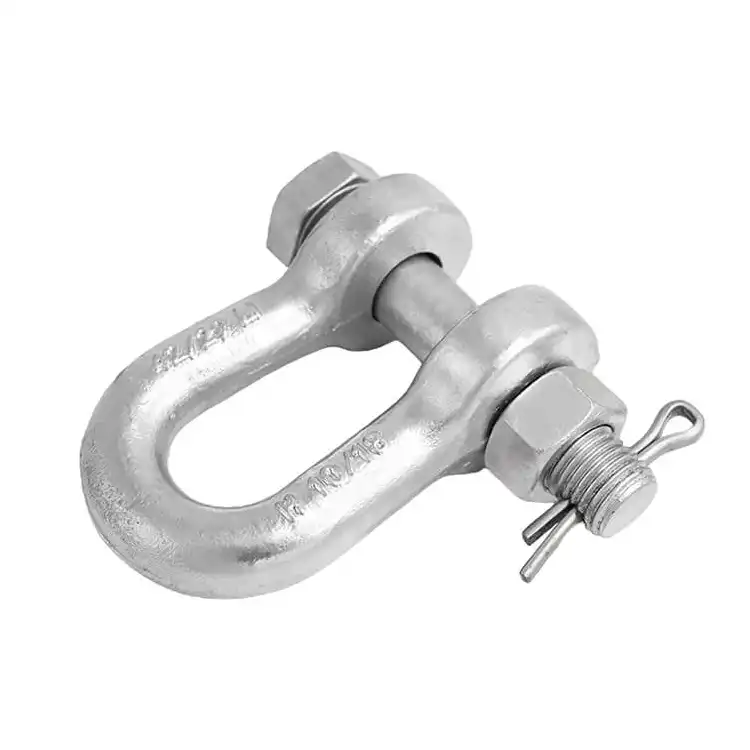

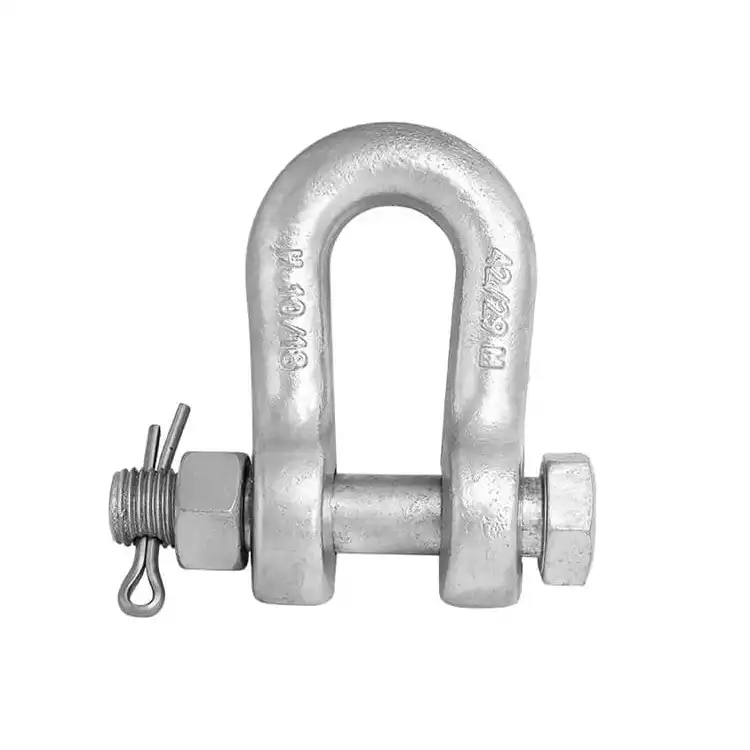

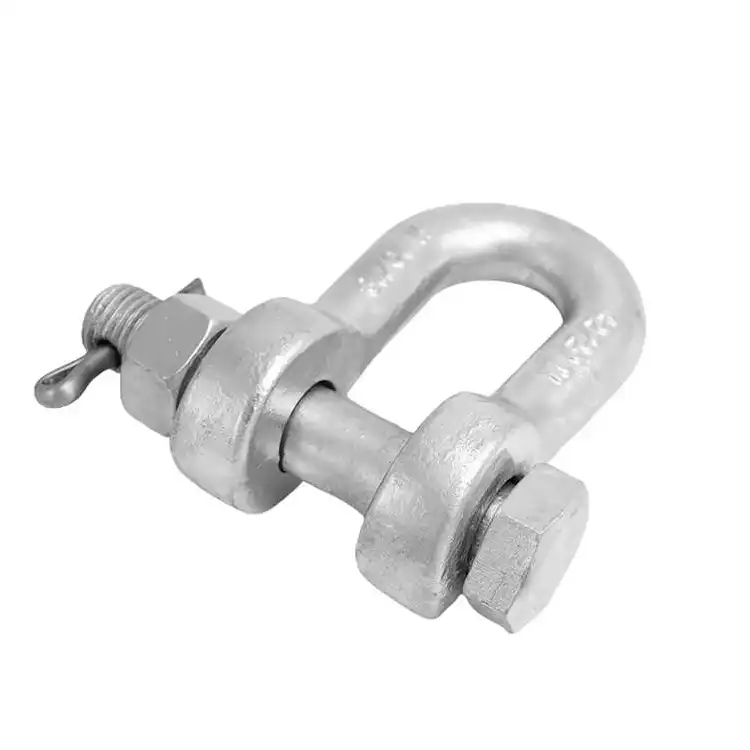

Forged Electric Power Shackle

Forged Electric Power Shackle - Professional Grade Connecting Hardware for Power Transmission

When your power transmission infrastructure demands reliability under extreme conditions, our Forged Electric Power Shackle delivers unmatched performance. Manufactured by Qingdao RuiRui Machinery Manufacturing Co., Ltd. since 2008, these enterprise-grade components highlight drop-forged carbon steel development with grain-aligned inside structure for predominant ductile quality. With 17+ a long time of OEM/ODM mastery, our shackles accomplish resistances of ±0.005mm through exactness CNC machining and experience 100% ISO 9001:2015 certified quality review. Each unit withstands loads from 70kN to 120kN, particularly built for high-voltage transmission lines (132kV to 800kV) where disappointment is not an alternative. Factory-direct estimating conveys 20-30% taken a toll reserve funds compared to traders.

What Makes Our Electric Power Connecting Hardware Superior?

You face real challenges in maintaining grid integrity. Traditional cast iron fittings fail when you need them most. Our forged steel solution eliminates those risks.

The Forging Advantage

Drop-forging changes crude carbon steel into a component where metal grain streams actually with the shape. This prepare expels inner porosity totally. You get reliable fabric thickness throughout.

Cast choices contain minuscule discuss pockets. These gotten to be break start focuses beneath cyclic stacking. Our manufacturing handle compresses the steel structure. The result? Components that stand up to weakness disappointment indeed after a long time of wind-induced vibration.

Built for Extreme Environments

Your infrastructure operates in punishing conditions. Sub-zero alpine installations. Salt-laden coastal substations. High-wind desert corridors.

Our Forged Electric Power Shackle handles them all. The ductile steel composition maintains toughness down to -40°C. No brittle fracture when ice loading peaks. The non-porous forged surface accepts galvanization uniformly, creating an 85+ micron protective barrier against C4-level corrosivity.

Technical Specifications

Where Your Operations Benefit Most

High-Voltage Transmission Networks

Connecting separators strings to the grid tower cross-arms requires outright unwavering quality. Our shackles serve as the basic load-bearing interface in 500kV to 800kV transmission ventures. They retain energetic loads from conductor running and aeolian vibration without push concentration failures.

Dead-End and Tension Towers

Alpine establishments confront concurrent ice stacking and tall winds. The predominant affect sturdiness of our produced steel makes grapple focuses that keep up basic astuteness when temperatures dive. No disastrous, delicate break amid winter storms.

Coastal Substation Applications

Salt shower quickens cleft erosion in cast fittings. Our thick-finished surface, combined with premium galvanization anticipates intergranular assault. You keep up long-term electrical coherence in saline situations without untimely substitution cycles.

Renewable Energy Integration

Wind cultivate substations produce overwhelming mechanical stresses. Large-scale cable terminations and busbar bolsters involvement energetic stacking from turbine vibrations. The upgraded weakness life of grain-aligned steel handles these cyclic stresses all through the installation's 25+ year lifespan.

Why Choose Qingdao RuiRui for Your Shackle Requirements?

Factory-Direct Manufacturing Control

We control the entire production chain. Raw material selection. Forging operations. CNC precision machining. Heat treatment. Surface finishing. No middlemen increasing costs or extending lead times.

You work directly with our engineering team. Design optimization happens in real-time. DFM analysis identifies potential issues before production begins.

One-Stop Production Capability

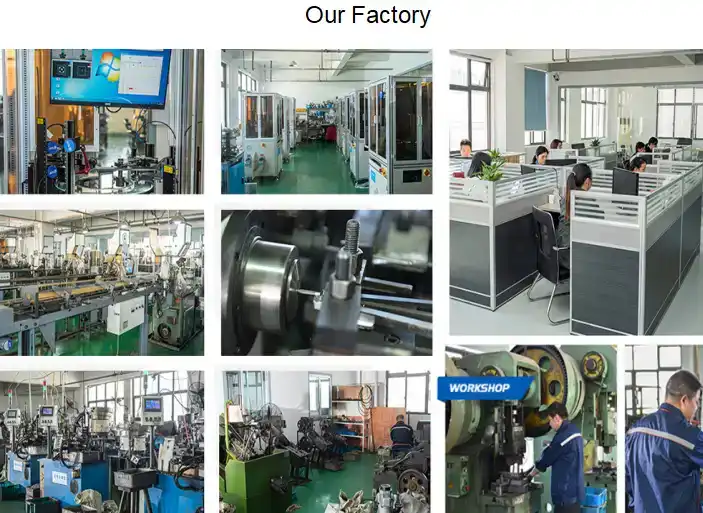

Our Qingdao facility houses 20+ CNC machines including 3/4/5-axis centers. Swiss-type lathes handle complex geometries. Multi-axis turning completes components in single setups.

Quality inspection occurs at every stage. Raw material certification. First article inspection. Batch sampling per AQL standards. CMM verification. Only products meeting full specifications reach your loading dock.

Proven OEM/ODM Experience

Since 2008, we've manufactured custom hardware solutions for utility contractors, grid operators, and transmission equipment distributors across 40+ countries. Our R&D team assists with design modifications to meet regional standards and environmental specifications.

Strategic Location Advantage

Located in Qingdao with direct port access, we offer flexible shipping terms: EXW, FOB, or DDP. Our logistics network ensures your components arrive on schedule, whether you're upgrading existing lines or executing new construction projects.

Frequently Asked Questions

Q1: Why must I specify forged shackles rather than cast alternatives for transmission lines above 132kV?

Cast iron contains internal porosity that creates weak points. High-voltage lines operate as critical grid arteries where failure causes extensive outages. Forging aligns the steel grain structure, doubling fatigue resistance against wind vibration. The safety factors required for spans carrying 132kV and higher make forged construction mandatory in most utility specifications.

Q2: What does the '70kN' or '120kN' marking indicate?

This represents the Minimum Failing Load (MFL). Your shackle is guaranteed to withstand tensile forces up to that threshold before mechanical failure. Select the rating based on your span length, conductor weight, and anticipated ice/wind loading per regional design standards.

Q3: How do I verify adequate galvanization for harsh coastal environments?

Request an ISO 1461 certification with your order. For C4 (high corrosivity) locations, specify a mean coating thickness of at least 85 microns. This provides 20+ years of corrosion protection in salt spray conditions. We provide full material certification and coating thickness reports with every shipment.

Q4: Can I weld these shackles during installation to save time?

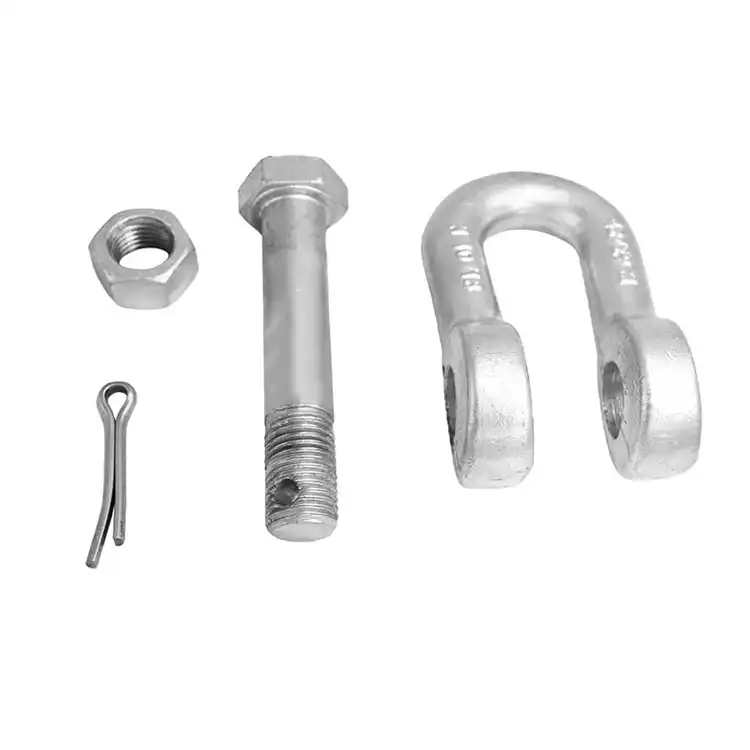

Never weld forged heat-treated steel in field installations. Welding creates heat-affected zones (HAZ) that alter the crystalline structure. These zones become brittle and prone to cracking under load. Always secure shackles using the supplied bolts, nuts, and cotter pins according to installation specifications.

Q5: What causes premature shackle failure in operational lines?

Beyond extreme overloading, the leading cause is wear from loose fittings. Constant friction between the pin and body creates abrasion that reduces cross-sectional area. Ensure proper torque specifications during installation. Also, hydrogen embrittlement can occur if high-strength steel undergoes improper acid pickling during galvanization—another reason to source from certified manufacturers with controlled processes.

Q6: Do you offer custom load ratings or dimensions?

Absolutely. Our engineering team provides complete OEM/ODM services. Submit your CAD files (STEP, IGES, X_T formats) for free DFM analysis. We'll recommend design optimizations and provide quotations within 48 hours. Zero MOQ for prototype development allows you to test custom specifications before committing to production volumes.

Q7: What documentation do you provide for utility contractor compliance?

Every order includes material test certificates (MTC), dimensional inspection reports, and ISO 9001:2015 quality documentation. For OEM clients, we provide PPAP and FAIR reports meeting automotive-grade quality standards. Full traceability ensures you meet regulatory requirements and internal procurement specifications.

Get Your Custom Quote Today

Need reliable connecting hardware for your next transmission project? Our engineering team is ready to assist with technical specifications and competitive factory-direct Forged Electric Power Shackle pricing.

Contact us now: kshdhardware@qdkshd.com

Qingdao RuiRui Machinery Manufacturing Co., Ltd. - Your trusted partner for precision-forged power transmission hardware since 2008.
