Forged Master Link

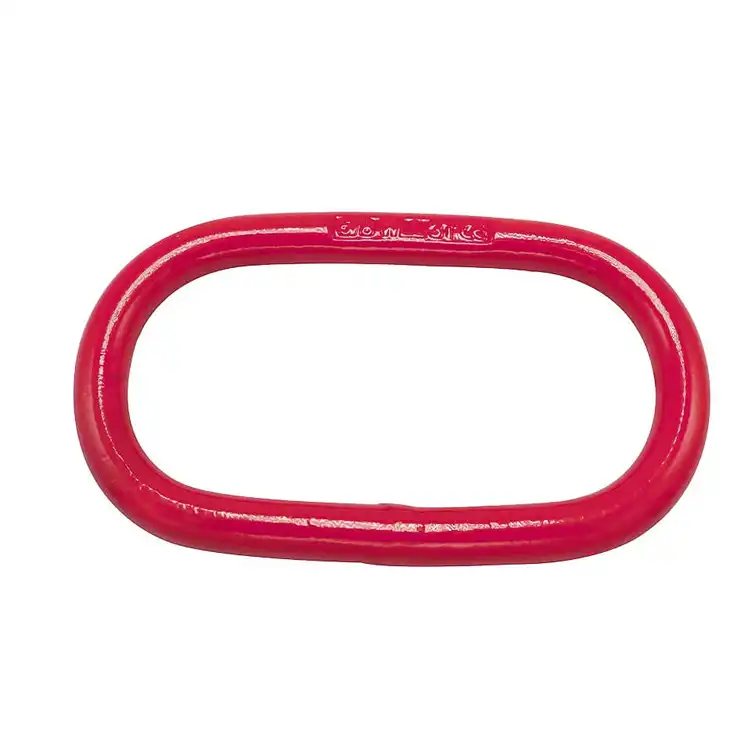

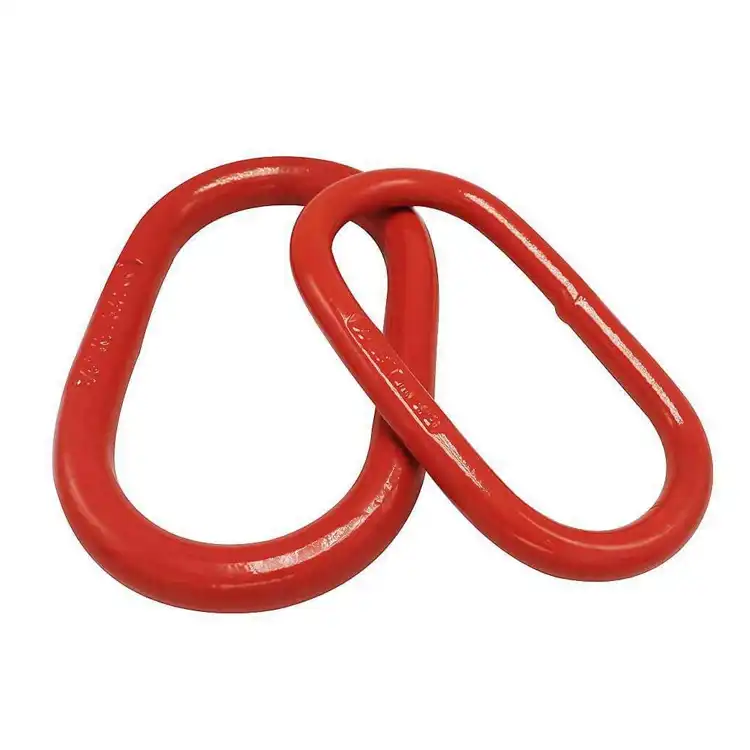

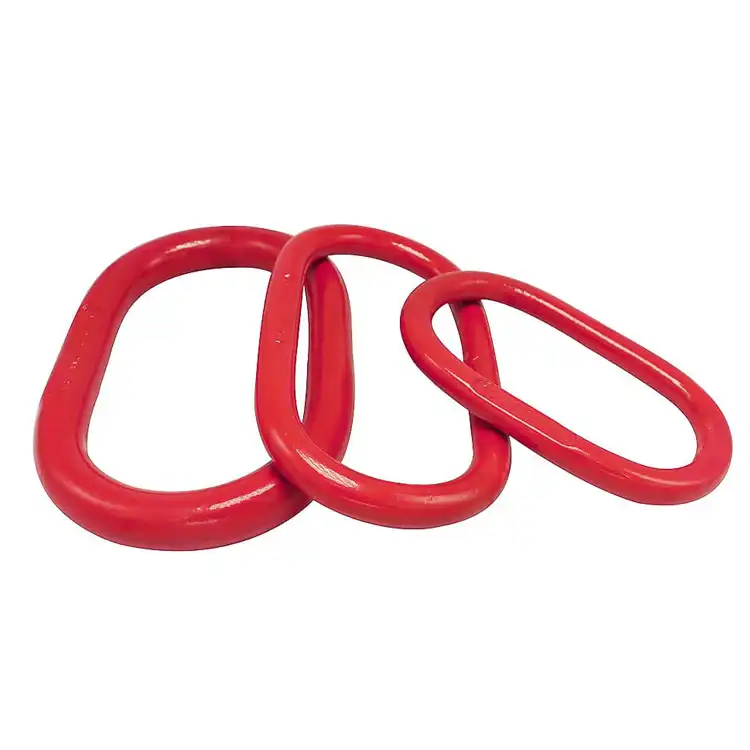

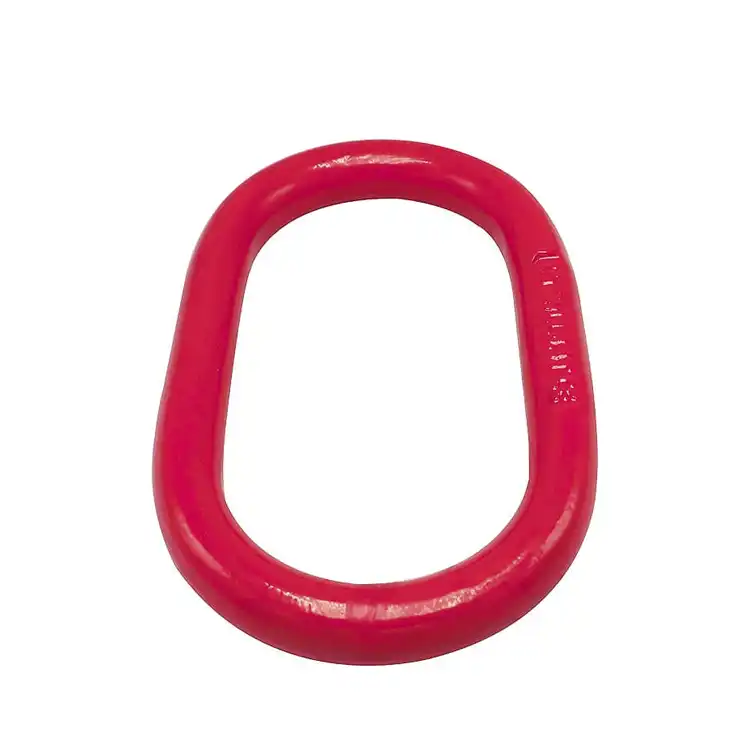

Forged Master Link – Premium Drop-Forged Rigging Component for Heavy-Duty Lifting

When your lifting operations demand absolute reliability, our Forged Master Link delivers enterprise-grade performance you can trust. Manufactured by Qingdao RuiRui Machinofacture Co., Ltd with over 17 a long time of accuracy designing mastery, each connect experiences closed-die manufacturing to make nonstop grain stream structures that outflank welded options. Created from high-grade amalgam steel with a powder-plastified surface wrap up, our joins meet EN 1677-4 and ASME B30.26 measures. With a least 4:1 security calculate and confirmation stack testing at 2.5x the Working Stack Constrain (WLL), you get components designed to kill heat-affected zone brittleness and anticipate disastrous disappointments. Supported by our ISO 9001:2015 certified generation office and 12-month guarantee, each item passes 100% assessment some time recently shipment.

Why Choose Our Drop-Forged Master Links?

Uncompromising Structural Integrity

Your fixing framework is as it were as solid as its weakest association. That's why we fabricate each connect through exactness drop-forging or maybe than casting or welding. This handle adjusts the inside grain structure to coordinate the link's form, giving you up to 25% higher lifting capacity compared to cast choices of the same size.

You won't discover welded joints in our items. Each piece comes from a single billet of amalgam steel, killing the hazard of weld crease disappointments that torment cheaper choices. This nonstop structure handles stun stacking and high-cycle weariness situations where welded joins fail.

Superior Load Distribution

In multi-leg sling configurations, the master link serves as your apex connection point. Our designs feature balanced geometry that distributes force evenly across all attachment points. This prevents the dangerous "weak link syndrome" that occurs when loads concentrate unevenly.

Whether you're connecting wire rope, chain, or synthetic slings, our Forged Master Link interfaces securely with oversized crane hooks while maintaining load integrity throughout your bridle assembly.

Temperature & Environment Resilience

Your operations do not halt when conditions get extreme. Our joint experience in Charpy V-notch impact testing at -40°C guarantees the steel remains pliable rather than shattering under pressure in extreme cold. The standard working range runs from -40°C to 200°C, with archived WLL diminishments given for raised temperature applications.

The powder-plastified wrap-up gives extraordinary erosion resistance without compromising the tempered quality of the base fabric. Not at all like post-manufacturing galvanising that can influence warm treatment, our surface coating preparation keeps up full basic integrity.

Technical Specifications

Parameter	Specification
Material	Alloy Steel (Grade 80/100)
Manufacturing Process	Closed-Die Drop Forging
Surface Treatment	Powder Plastified
Safety Factor	Minimum 4:1 (5:1 for DNV offshore)
Proof Load Testing	2.5x Working Load Limit (WLL)
Operating Temperature	-40°C to 200°C (standard)
Impact Strength	42J at -40°C (Charpy V-Notch)
Standards Compliance	EN 1677-4, ASME B30.26, ASTM A952
Quality Certification	ISO 9001:2015
Warranty Period	12 Months
Traceability	Raised-stamp markings with manufacturer symbol, grade, and code

The RuiRui Manufacturing Advantage

Factory-Direct Pricing & Speed

As a source producer, we kill agents' markup. You spare 20-30% compared to dealer estimating, whereas getting 15% speedier lead times through our optimized generation planning. Our 24/7 three-shift operation and 20+ CNC machining centers guarantee your orders move through generation efficiently.

Precision Engineering Capabilities

Our CNC turning and processing operations keep up resiliences as tight as ±0.005mm. This accuracy guarantees steady measurements over generation runs, essential for an appropriate fit in your fixing congregations. With multi-axis Swiss-type machines and live tooling capabilities, we handle complex geometries that lesser producers cannot replicate.

Comprehensive Quality Control

Every batch undergoes rigorous inspection protocols:

·  First Article Inspection (FAI) verifies initial production accuracy

·  Batch sampling per AQL standards ensures consistency

·  CMM and optical comparator measurements validate dimensional accuracy

·  Material certification (MTC) confirms alloy composition

·  Full dimensional reports provide complete traceability

Only products that pass all quality checkpoints receive our raised-stamp markings and leave our facility.

One-Stop Production Capability

From raw material procurement through finished product testing, we control every step. This vertical integration gives you consistent quality and the ability to customize specifications without coordinating multiple suppliers. Our R&D team supports design-for-manufacturability (DFM) analysis, helping you optimize your rigging designs before production begins.

Application Industries

Our Forged Master Link components serve critical lifting operations across:

·  Construction & Infrastructure: Tower crane assemblies, bridge girder lifting

·  Offshore & Marine: Subsea equipment deployment, vessel cargo handling

·  Manufacturing & Heavy Industry: Press tooling suspension, furnace maintenance

·  Logistics & Warehousing: Container handling, bulk material transfer

·  Energy Sector: Wind turbine installation, oil rig component replacement

Inspection & Maintenance Guidelines

Your safety depends on proper component inspection. Follow these protocols to maximize service life:

Pre-Lift Visual Checks

Before every use, examine your link for:

·  Surface cracks or gouges

·  Unusual wear patterns

·  Paint or coating damage indicating impact

·  Any deformation from the original shape

Periodic Thorough Inspection

Engage a competent person for documented inspection every 6-12 months based on usage intensity. This examination should include:

·  Caliper measurements of cross-sectional dimensions

·  Comparison to original specifications

·  Review of usage logs for overload events

·  Assessment of corrosion under surface coatings

Mandatory Removal Criteria

Take your link out of service immediately if you observe:

·  More than 10% wear in any cross-sectional dimension

·  Any visible cracks, regardless of size

·  Permanent elongation or stretching

·  Evidence of heat damage (discoloration, warping)

·  Pitting or corrosion that reduces material thickness

Frequently Asked Questions

Q: What's the distinction between G80 and G100 review links?

A: G100 joins offer around 25% higher lifting capacity for the same physical estimate and weight compared to G80. This permits you to utilize lighter fixing setups whereas keeping up the same stack rating, diminishing generally framework weight and progressing taking care of efficiency.

Q: Can I utilize these joins with both chain and wire rope slings?

A: Yes, given the interface measurements suit your thimbles or coupling joins. You must calculate measuring based on the resultant stack made by your sling point, not fair the vertical stack. Our designing group can help with appropriate measuring calculations for your particular configuration.

Q: How does the powder coating influence stack ratings?

A: The coating gives erosion resistance and visual recognizable proof but does not influence the Working Stack Constrain. In any case, any post-manufacturing warm treatment like unauthorized hot-dip galvanizing can compromise the tempered quality. Continuously utilize joins with factory-applied wraps up from certified manufacturers.

Q: What temperature run is secure for operation?

A: Standard joins work between -40°C and 200°C. At hoisted temperatures (300°C-400°C), the WLL ordinarily diminishes to 75% of the evaluated capacity. For extraordinary cold applications, confirm that your joins have passed Charpy V-notch testing at the anticipated working temperature to guarantee ductility is maintained.

Q: What markings ought to show up on a compliant link?

A: Solid joins highlight raised-stamp markings appearing the manufacturer's image, traceability code, review assignment (such as 8 or 10), and frequently the estimate or WLL. These markings guarantee full traceability to test certificates and fabricating records. Never utilize unmarked or ineffectively checked components in basic lifting operations.

Q: How regularly ought to proficient review occur?

A: Whereas you ought to perform visual checks some time recently each lift, plan archived exhaustive assessments by a competent individual each 6-12 months depending on utilization concentrated. High-frequency operations in cruel situations require more visit proficient assessment.

Global Delivery & Support

We ship worldwide with flexible terms including EXW, FOB, and DDP options. Located in Qingdao with direct port access, we provide efficient logistics for international orders.

Lead Times:

·  Prototype quantities: 1-2 weeks

·  Mass production runs: 4-7 weeks

·  Rush orders: 70% ship on schedule with expedited processing

Our engineering team provides technical support throughout your purchasing process, from initial design consultation through after-sales service. We protect your intellectual property with NDAs and secure data handling protocols.

Request Your Custom Quote Today

Get factory-direct pricing with no minimum order quantity for prototype development. Our team responds with detailed quotes and lead times within 48 hours of receiving your Forged Master Link specifications.

Contact us now: kshdhardware@qdkshd.com

Qingdao RuiRui Machinofacture Co., Ltd – 17+ years of precision forging excellence, ISO 9001:2015 certified, serving lifting and rigging professionals worldwide.
