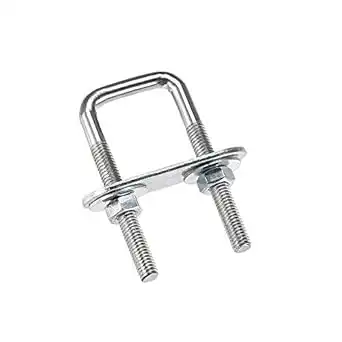

3/4 Inch Square U Bolts - Heavy-Duty Fastening Solutions

When your project demands reliable clamping for square tubing or box beams,3/4 inch square u bolts deliver the strength you need. Manufactured by Qingdao RuiRui Machinofacture Co., Ltd., our bolts feature precision square-bend geometry that provides 100% surface contact with structural profiles. With a tensile strength of 120,000 to 150,000 PSI and production that is ISO 9001:2015 certified, you get industrial-grade fasteners that have been tried to last 500 to 1000 hours of salt spray corrosion resistance. Our factory-direct price saves you 20–30% on costs, and our 17+ years of OEM experience means we can guarantee tolerances as close as ±0.005mm. It comes in Grade 5, Grade 8, and 304/316 stainless steel, and can be finished with either hot-dip galvanisation or zinc plating.

What Makes Square U Bolts Different?

You might wonder why square matters.

Traditional round u-bolts create point loads on flat surfaces. This causes stress concentrations. Your square tubing can actually crush under pressure.

Square bend u-bolts solve this problem elegantly. The flat contact surface distributes force evenly across the entire width. You get superior load distribution and zero rotation risk.

Think of it as the difference between standing on a knife edge versus standing on a platform. Your equipment deserves that platform.

Key Applications

Our bolts serve critical roles across multiple industries:

Automotive & Transportation

· Heavy-duty truck suspension systems

· Trailer axle mounting assemblies

· Leaf spring attachment points

Agricultural Equipment

· Toolbar mounting hardware

· Implement frames

· Three-point hitch connections

Industrial & Marine

· Boat trailer construction

· Structural steel frameworks

· Machinery anchoring systems

The square profile prevents rotation during high-vibration operation. Your assembly stays tight even under continuous stress.

Technical Specifications

Parameter	Specification
Thread Diameter	3/4 inch (0.750")
Thread Pitch Options	10 TPI UNC / 16 TPI UNF
Material Standards	AISI 1045, AISI 4140, 304/316 Stainless Steel
Grade Options	SAE J429 Grade 5 / Grade 8
Tensile Strength	120,000 - 150,000 PSI
Yield Strength	92,000 PSI minimum (Grade 5)
Surface Treatment	Hot-Dip Galvanized (ASTM A153), Zinc Plated (ASTM B633), Plain Oil Finish
Corrosion Resistance	500-1000 hours salt spray testing (ASTM B117)
Thread Construction	Rolled thread (15-20% greater fatigue resistance)
Inside Width Range	Custom sizes to match tubing
Leg Length	Tailored to assembly depth
Color Options	Silver, Black, Custom
MOQ	1,000 pieces
Tolerance	±0.005mm (precision machining)

Material Selection Guide

Choosing the right material matters for your application's lifespan.

Carbon Steel (AISI 1045)

Best for general industrial use. Offers excellent strength-to-cost ratio. Requires coating for outdoor applications.

Alloy Steel (AISI 4140)

Your choice for extreme stress environments. Superior hardness and fatigue resistance. Ideal for heavy machinery.

304 Stainless Steel

Moderate corrosion protection. Good for coastal areas without direct saltwater exposure.

316 Stainless Steel

Premium marine-grade material. Resists chloride corrosion effectively. Worth the investment for boat trailers and offshore equipment.

Each material undergoes strict quality testing. We verify composition through material certification and perform proof load testing per SAE J429 standards.

Superior Quality Control Process

Your safety depends on fastener reliability. We take quality seriously.

Inspection Protocol:

· First article inspection (FAI) on every production batch

· Magnetic particle inspection (MPI) for subsurface crack detection

· Go/No-Go thread gauging for perfect nut compatibility

· Salt spray testing (ASTM B117) for coating durability

· Proof load testing to verify yield strength

· Full dimensional reports with CMM verification

The square bend corner receives special attention. This area experiences the highest stress concentration. Our MPI process catches potential fatigue points before they reach you.

Every batch follows AQL sampling standards. Only products meeting full quality standards leave our facility.

Why Choose Ruirui for Your3/4 Inch Square U Bolts?

Factory-Direct Advantages:

You work directly with the manufacturer. No middlemen marking up prices. Your orders get priority attention from our engineering team.

One-Stop Production:

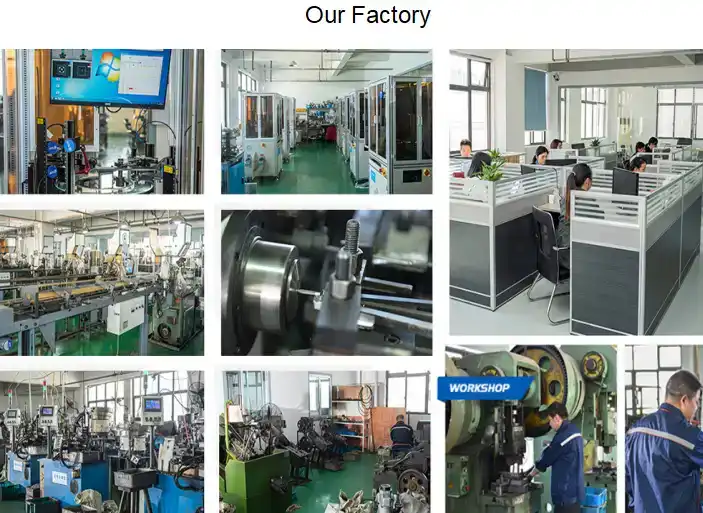

We control everything from raw material procurement to finished product packaging. This means consistent quality and faster lead times for you.

Customization Expertise:

Our 20+ CNC machines handle custom dimensions easily. Need specific inside width measurements? Unique leg lengths? We optimize designs for your exact application.

Cost & Speed Benefits:

· 20-30% lower pricing than trading companies

· Prototype delivery in 1-2 weeks

· Mass production in 4-7 weeks

· 70% of urgent orders ship on time

Technical Support:

Our R&D team provides free design for manufactur ability analysis. Send your CAD files. We'll optimize for strength and production efficiency.

Installation Best Practices

Proper installation maximizes bolt performance and lifespan.

Measurement Guidelines:

Never measure center-to-center between legs. Measure the inside width at the base of the legs. Measure inside length from the top of the square bend to thread end. Verify your square tubing dimensions exactly.

Thread Selection:

Fine thread (UNF) works best for high-vibration applications. The larger stress area resists loosening better. Coarse thread (UNC) suits general construction where you need quick assembly.

Torque Specifications:

Grade 5 bolts with 3/4-10 coarse threads need approximately 200-260 ft-lbs of dry torque. Always use a calibrated torque wrench. Critical: Re-torque after your first 50-100 miles of operation or initial load cycling.

Important Safety Note:

Never weld 3/4 inch square u bolts to frames. Welding disrupts heat treatment and causes brittleness. Use them strictly as mechanical fasteners.

Coating Comparison

Your environment determines the right finish.

Hot-Dip Galvanized:

The metallurgical bond creates a thick zinc layer. You get 20+ years of rust-free service outdoors. Best for marine trailers and agricultural equipment.

Zinc Plated:

Provides 1-2 years of shelf-life protection. Suitable for indoor applications or temporary outdoor use. More cost-effective for controlled environments.

Plain with Oil:

Chosen when you plan additional finishing processes. Ideal when bolts will be painted or powder-coated as part of your assembly.

Our hot-dip galvanization follows ASTM A153 standards. Zinc plating meets ASTM B633 specifications.

FAQ

Q: How do I correctly measure for ordering?

A: You need three measurements. First, the inside width measured at the base of the legs where they're closest. Second, the inside length from the top of the flat bend to where threads end. Third, confirm the thread diameter is actually 0.750 inches. Send us your measurements and we'll verify compatibility.

Q: Should I use fine or coarse threads?

A: For suspension systems, agricultural implements, or any high-vibration application, choose fine thread (UNF). The larger stress area and tighter pitch resist loosening. Coarse thread (UNC) works well for structural applications where vibration is minimal and you want faster installation.

Q: What torque should I use for Grade 5 bolts?

A: Standard dry torque for Grade 5 with 3/4-10 coarse threads is 200-260 ft-lbs. This varies with lubrication. Always follow your equipment manufacturer's specifications when available. Remember to re-torque after the settle-in period.

Q: Can these bolts be welded?

A: No. Welding heat-treated bolts disrupts their temper. This causes brittleness and unexpected failure. Grade 8 bolts are especially vulnerable. Use square u-bolts strictly as clamping mechanical fasteners for safe operation.

Q: How long will different coatings last?

A: Zinc plating offers 1-2 years of rust protection in outdoor conditions. Hot-dip galvanized bolts last 20+ years in marine and harsh weather environments. The thicker zinc layer and metallurgical bond make galvanizing worth the investment for long-term applications.

Q: Do you provide material certifications?

A: Yes. Every shipment includes material test certificates (MTC), dimensional reports, and coating thickness documentation. We provide PPAP and FAIR reports for OEM clients requiring full traceability.

Q: What's your minimum order quantity?

A: Our standard MOQ is 1,000 pieces. For prototype development, we offer zero MOQ. Contact us to discuss your specific requirements.

Order Process

Getting your custom fasteners is straightforward.

Step 1: Submit Your Requirements

Email your specifications or CAD files to us. Include material preferences, coating requirements, and quantity needed.

Step 2: Receive Free DFM Analysis

Our engineering team reviews your design within 48 hours. We provide optimization suggestions and accurate quotes.

Step 3: Production & Quality Control

We manufacture with real-time progress updates. Every batch undergoes our rigorous inspection protocol.

Step 4: Global Delivery

We ship worldwide with EXW, FOB, or DDP terms. Your choice of logistics to suit your timeline and budget.

Contact Us

Ready to secure your project with reliable 3/4 inch square u bolts? Email us atkshdhardware@qdkshd.com for your custom quote today.
