Trailer Hitch Lock 5/8

Trailer Hitch Lock 5_8 - Heavy-Duty Security Solution for Professional Towing

Qingdao Ruirui Machinery Manufacturing Co., Ltd. specializes in manufacturing premium Trailer Hitch Lock 5_8 solutions using high-quality galvanized steel. Our Ruirui brand delivers enterprise-grade security for Class III, IV, and V receiver hitches with a minimum order quantity of just 1000 pieces. We offer comprehensive OEM/ODM customization sponsored by 20 a long time of fabricating ability. Each bolt experiences thorough quality control with shear quality testing surpassing 30,000 lbs, guaranteeing your heavy-duty towing hardware remains secure. With conveyance times of 20-40 days and factory-direct estimating, you get solid anti-theft assurance without the agent markup. Our one-stop generation capability covers crude fabric acquirement through last assessment, ensuring reliable quality for marine, development, and off-road applications.

What Makes Our Trailer Hitch Lock 5_8 Essential for Your Towing Needs?

Your towing equipment represents a significant investment. The product replaces standard non-locking hitch pins with a hardened security mechanism specifically engineered for heavy-duty applications.

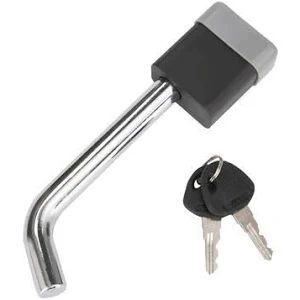

This specialized coupling device features a 5/8-inch (16mm) diameter shaft designed for 2-inch and 2.5-inch receiver tubes. Unlike lighter 1/2-inch locks suited for Class I and II hitches, our locks handle the demanding requirements of towing boats, RVs, and construction trailers.

Your adjustable drop hitches, cargo carriers, and weight distribution systems face constant theft risks at unattended locations. Our locks address three critical pain points: preventing expensive hitch assembly theft, eliminating dangerous rattling caused by loose pin tolerances, and stopping accidental trailer uncoupling on rough terrain.

The push-to-lock functionality simplifies operation even in awkward physical positions. You don't need to fumble with keys while crouching behind your vehicle in parking lots or boat ramps.

Technical Specifications of Trailer Hitch Lock 5_8

Parameter	Specification
Brand	Ruirui
Material	High Quality Galvanized Steel
Shaft Diameter	5/8 inch (15.875mm)
Shear Strength	>30,000 lbs
Compatible Hitch Class	III, IV, V
Receiver Tube Size	2-inch, 2.5-inch, 3-inch
Effective Length	Adjustable 2-3/4" to 3-1/2"
Surface Treatment	Dual-layer Nickel + Chrome Plating
Locking Mechanism	Tubular Key / Disc-Detainer System
Weather Protection	O-ring Sealed with Rubber Cap
MOQ	1000 pieces
OEM/ODM	Available
Delivery Time	20-40 days
Certification	ISO 9001:2015

Where Do You Need Trailer Hitch Lock 5_8 Protection?

Marine and Coastal Transport

Your boat trailer sits exposed at public ramps for hours during fishing trips or weekend outings. Saltwater and humidity create the perfect environment for lock corrosion and mechanism failure.

Our galvanized steel construction with advanced surface treatment withstands 500-1000 hours of salt spray testing (ASTM B117 standard). The sealed weather cap prevents moisture ingress into the tumbler mechanism. You can launch and retrieve your boat without worrying about a seized lock or stolen trailer equipment.

Construction and Heavy Equipment Fleets

Construction firms managing multiple work trucks need consistent security across job sites. Heavy-duty pintle hooks and weight-distribution hitches often exceed $500 per assembly.

Fleet managers benefit from our keyed-alike option. Your team uses one key for all receiver locks, coupler locks, and spare tire locks across your entire vehicle fleet. This streamlines equipment checkout procedures while protecting valuable assets at unsecured construction sites.

Off-Road and Expedition Vehicles

Overlanders using recovery gear face extreme vibration during mud, sand, and snow recoveries. Standard hitch pins can vibrate loose during high-impact vehicle extraction maneuvers.

Our Trailer Hitch Lock 5_8 features anti-rattle design elements that maintain shackle security during the most demanding off-road conditions. The dust cap integrity ensures dirt and debris don't compromise the locking mechanism during trail adventures.

Quality Control Standards You Can Trust

Every batch of our locks undergoes comprehensive inspection aligned with SAE J684 and ASTM standards. We don't just manufacture locks—we validate their performance under real-world stress conditions.

Shear Strength Testing:Random samples face hydraulic shear loads at double the Class V towing limit. Your lock won't deform or snap under rated capacity, ensuring trailer security even during emergency braking or rough road impacts.

Salt Spray Corrosion Testing:Extended exposure in salt fog chambers simulates years of coastal use. Our galvanized steel formulation prevents red rust formation on critical locking components and shaft surfaces.

Lock Cylinder Cycle Life:We test tumblers through minimum 5,000 lock/unlock cycles. This validates that internal springs and pins won't fail under fatigue during your ownership period.

Weather Seal Verification:High-pressure water spray tests simulate highway driving in heavy rain. The rubber cap maintains its seal integrity, preventing water from entering the keyway and causing internal corrosion.

Dimensional Precision:Micrometer inspection confirms pin diameter stays within 0.615–0.625 inches. This tight tolerance ensures proper fitment in standard receivers without excessive movement while maintaining smooth insertion.

Our ISO 9001:2015 certified facility provides complete documentation including material certifications, dimensional reports, and first article inspection records. You receive full traceability for every production batch.

Why Ruirui Factory Advantage Benefits Your Business

Direct factory access eliminates middleman costs. You save 20-30% compared to purchasing through traders while gaining faster communication with our engineering team.

Our 20+ years of OEM/ODM experience means we understand your custom requirements. Whether you need specific keying systems, special plating finishes, or modified dimensions, our R&D team optimizes designs for manufacturability.

The one-stop production capability covers everything from raw material procurement through export-ready packaging. You work with one reliable partner instead of coordinating multiple suppliers. This integration reduces lead times and quality inconsistencies.

Located near Qingdao Port, we offer convenient shipping access for international customers. Our logistics network supports EXW, FOB, and DDP terms based on your preference.

Packaging & Delivery

Each Trailer Hitch Lock 5_8 receives individual protective packaging to prevent shipping damage and corrosion during transit. Bulk orders include carton packaging with moisture-resistant materials.

We provide custom branding options for your retail or distribution needs. Your company logo and product information can be incorporated into blister packs, display boxes, or industrial packaging formats.

Standard delivery time runs 20-40 days depending on order quantity and customization requirements. Rush orders receive priority scheduling to meet your project deadlines.

FAQ

Q: How do I know if I need a 1/2-inch or the product?

A: Check your receiver tube size first. Class I or II hitches with 1.25-inch receivers use 1/2-inch locks. Class III, IV, or V hitches with 2-inch, 2.5-inch, or 3-inch receivers—typically found on trucks and SUVs—require the 5/8-inch diameter due to larger hole dimensions and heavier load requirements.

Q: Can your locks reduce towing rattle?

A: Standard locks prevent withdrawal but don't eliminate lateral movement. Our anti-rattle models include internal O-rings or threaded inserts that dampen vibration significantly. Specify anti-rattle features when requesting your quote for maximum stability.

Q: What if the lock freezes in winter conditions?

A: Never force a frozen key—it may snap inside the cylinder. Apply penetrating oil or de-icing spray directly into the keyway and wait 10 minutes. Prevent freezing by regularly lubricating the core with graphite or silicone-based lubricant and always securing the weather cap after use.

Q: What's the strength difference between stainless steel and carbon steel versions?

A: Hardened carbon steel offers higher tensile strength and better resistance to bolt cutters, making it ideal for maximum security needs. Our galvanized steel provides excellent corrosion resistance with superior anti-theft protection. Both versions exceed standard towing safety limits for Class V applications.

Q: Can you provide keyed-alike sets for fleet use?

A: Absolutely. We offer keyed-alike options perfect for fleet managers or multi-vehicle owners. One master key operates all your receiver locks, coupler locks, and equipment locks across your entire operation, streamlining security management.

Q: What customization options do you offer for OEM orders?

A: Our OEM/ODM services include custom keying systems, specific plating finishes, logo engraving, modified dimensions, and specialized packaging. With 1000-piece minimum orders, you get factory-direct customization that meets your exact specifications.

Contact Us

Ready to protect your Trailer Hitch Lock 5_8 valuable towing equipment? Request a detailed quote or technical specifications today. Email our engineering team at kshdhardware@qdkshd.com for fast response.
