Custom Metal Brackets

Custom Metal Brackets - Precision Engineered Hardware Solutions

Qingdao Ruirui Machinofacture Co., Ltd. specializes in manufacturing high-performance Custom Metal Brackets crafted from 3mm galvanized steel, delivering exceptional durability for demanding industrial applications. Beginning from our Qingdao office with 17+ a long time of OEM/ODM ability, our brackets highlight weather-resistant properties that withstand cruel natural conditions. Each bracket experiences exactness CNC handling with resistances of ±0.005mm, guaranteeing idealize fitment in car congregations, broadcast communications foundation, and mechanical apparatus. Our factory-direct estimating demonstrate decreases costs by 20-30% compared to exchanging companies, whereas our one-stop generation capability—from crude fabric review through ISO 9001:2015 certified quality testing—guarantees dimensional soundness and basic keenness. With 20+ CNC machines working in three-shift generation cycles, we provide models inside 1-2 weeks and handle mass generation orders efficiently.

What Are Custom Metal Brackets?

The items are precision-engineered auxiliary equipment components planned particularly to meet your special mounting, interfacing, and back prerequisites. Not at all like off-the-shelf arrangements, these brackets unravel basic compatibility issues in complex mechanical assemblies.

You'll advantage from Computer-Aided Plan (CAD) integration that guarantees idealize arrangement with non-standard interfacing. Our fabricating forms incorporate laser cutting, CNC bowing, and dynamic kick the bucket stamping to accomplish your correct spatial constraints.

These brackets address three major pain points you might face. First, they eliminate fitment failures in proprietary OEM systems. Second, they optimize load distribution for high-fatigue environments. Third, they integrate features like clinch nuts that reduce your assembly time by up to 40%.

Key technical specifications include:

Core Applications Across Industries

Automotive & EV Battery Systems

Your electric vehicle battery modules require brackets that withstand constant vibration according to SAE J2380 standards. Our 3mm galvanized steel brackets provide EMI shielding while securing high-voltage busbars. E-coating treatment ensures resistance against road salts in all climates.

Telecommunications Infrastructure

When mounting 5G radio wire clusters on towers, you require brackets that survive decades of open air presentation. Hot-dip galvanization conveys 20+ year lifecycles indeed in coastal situations. Our plans account for tall wind loads and warm expansion.

Industrial Apparatus & Equipment

Heavy-duty mounting arrangements for water powered frameworks, pump lodgings, and transport gatherings request prevalent load-bearing capacity. We design brackets with optimized push vectors to avoid disappointment in energetic operations.

High-End Hardware Manufacturing

Server racks and control boards require precision-stamped brackets with ±0.05mm resistances. Pre-plated materials guarantee appropriate electrical establishing and warm scattering in compact housings.

Technical Properties & Fabric Advantages

Material Determination Flexibility

You can select from numerous substrate alternatives based on your application. Stainless Steel 316 offers most extreme erosion resistance for marine situations. Aluminum 6061 gives fabulous strength-to-weight proportions for aviation components. Carbon steel conveys tall malleable quality for heavy-load applications.

Mechanical Performance

Our galvanized steel brackets keep up auxiliary judgment beneath extraordinary warm cycling. The 3mm thickness gives an ideal adjust between unbending nature and formability. Complex twist radii are accomplished without micro-cracking through controlled CNC twisting processes.

Dimensional Stability

Geometric Dimensioning and Tolerancing (GD&T) guarantees positional precision of mounting gaps relative to datum planes. This accuracy kills arrangement issues amid your gathering prepare. CMM confirmation affirms compliance with ISO 2768 measures.

Surface Treatment Options

Custom Metal Brackets Weather-resistant galvanizing protects against oxidation and corrosion. Powder coating adds color coding and additional chemical resistance. E-coating provides uniform coverage in complex geometries for automotive applications.

Manufacturing Capabilities & Quality Control

Advanced Production Technology

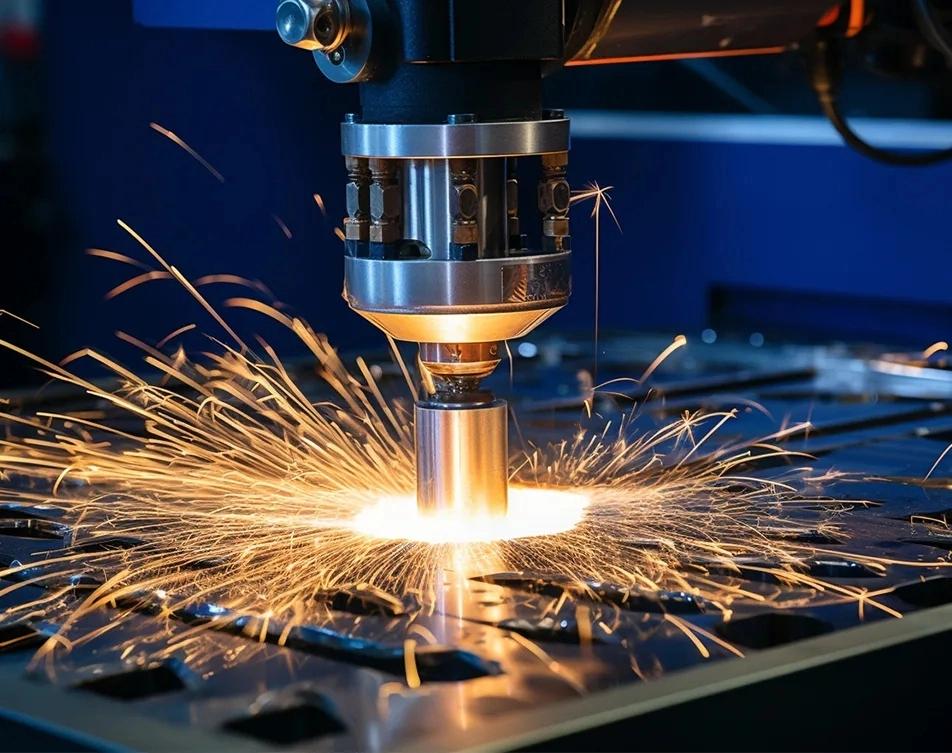

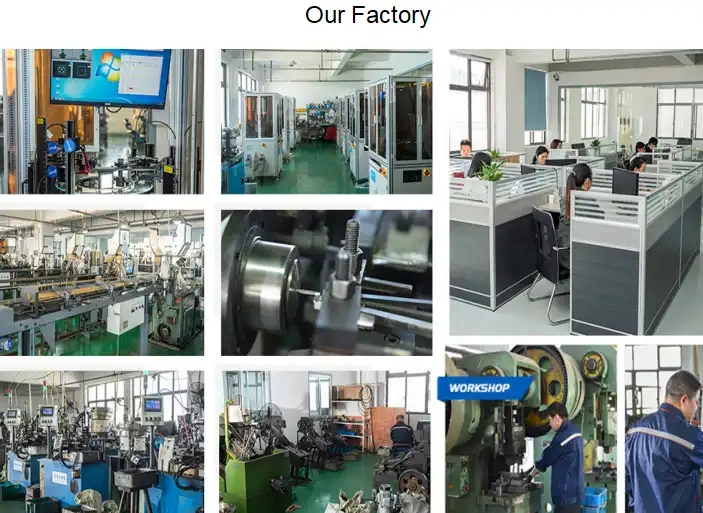

Our facility houses 20+ CNC machines including 3/4/5-axis milling centers and Swiss-type lathes. Laser cutting systems handle complex geometries with minimal material waste. Progressive die stamping reduces unit costs for high-volume orders exceeding 10,000 pieces.

Precision Fabrication Process

You receive brackets manufactured through controlled workflows. CNC bending achieves accurate angles while maintaining material properties. Hardware insertion using hydraulic presses integrates PEM nuts and standoffs directly into your brackets.

Comprehensive Quality Assurance

Every batch undergoes first article inspection (FAI) using coordinate measuring machines. Positive Material Identification (PMI) testing prevents alloy mixing. Salt spray testing per ASTM B117 validates corrosion resistance from 96 to 1000 hours.

Documentation & Certification

Your orders include material test certificates (MTC), PPAP reports, and full dimensional inspection records. Our ISO 9001:2015 certification demonstrates consistent quality management. We provide FAIR documentation for aerospace and medical applications.

Cost-Effective Customization Solutions

Prototype to Production Flexibility

Small batch orders benefit from laser cutting with no tooling costs. You can test designs with quantities as low as one piece. Once validated, we transition to progressive die stamping for cost optimization in mass production.

Factory-Direct Pricing Advantage

As a source manufacturer, we eliminate middleman markups. You save 20-30% compared to trading companies while maintaining direct communication with our engineering team. Transparent pricing includes material certification and quality testing.

Lead Time Optimization

Our three-shift operation and 24/7 production capacity enable faster delivery. Prototypes ship within 1-2 weeks for rapid design iteration. Mass production orders complete in 4-7 weeks with real-time progress updates.

Design for Manufacturability Support

Our R&D team provides free DFM analysis when you upload CAD files. We identify potential issues like excessive bend radii or problematic tolerances. Design optimization reduces production costs while improving part performance.

FAQ

Q: What is the most cost-effective manufacturing method for the product?

A：For prototypes and quantities under 500 units, laser cutting combined with CNC bending offers the best value since no hard tooling is required. When your volume reaches 10,000+ pieces, progressive die stamping drastically reduces unit cost despite higher initial tooling investment.

Q: How do I ensure my brackets won't rust in marine environments?

A：We recommend Stainless Steel 316 or hot-dip galvanizing per ASTM A123 standards for carbon steel. Standard zinc plating fails in salt spray conditions. Stainless steel requires passivation treatment to remove surface contaminants and maximize corrosion resistance.

Q: What tolerances can you achieve for critical features?

A：Standard CNC sheet metal work maintains ±0.25mm tolerances. For precision applications requiring tighter control, we achieve ±0.05mm through secondary machining operations. This meets ISO 2768-f fine grade requirements for demanding assemblies.

Q: Can you integrate fasteners directly into the brackets?

A：Yes, hardware insertion is included in our one-stop service. We install self-clinching PEM nuts, studs, and standoffs using hydraulic presses during fabrication. This eliminates loose hardware and accelerates your final assembly line by up to 40%.

Q: What minimum bend radius should I specify?

A：To prevent stress fractures, internal bend radius should be at least 1x material thickness (1T). Harder alloys like 7075 aluminum require larger radii of 2T-3T. Our engineers calculate k-factors to ensure flat pattern dimensions produce accurate bent parts.

Q: Do you provide material traceability?

A：All orders include material test certificates confirming alloy composition and mechanical properties. PMI testing verifies material authenticity before processing. Full chain-of-custody documentation is available for aerospace and medical industry requirements.

Contact Us

Ready to optimize your Custom Metal Brackets assembly with precision-engineered brackets? Send your CAD files for free DFM analysis and quotation within 48 hours. Experience factory-direct quality today.
