Hydraulic Damping Hinge

Hydraulic Damping Hinge - Premium Soft-Close Solution for Professional Applications

Precision engineering and industrial-grade reliability come together in Qingdao Ruirui's Hydraulic Damping Hinge. The doors are made of high-quality stainless steel that doesn't rust and have a copper-core hydraulic cylinder that can open and close more than 50,000 times. Every unit can be adjusted in three dimensions (±2mm for height, width, and depth) and has to pass strict 48-hour Neutral Salt Spray tests. We have been making OEM parts for more than 17 years and are certified by ISO 9001:2015. For every batch, we send you factory-direct pricing and full dimensional inspection reports.

What Makes Our Damping Hinges Stand Out?

Superior Material Construction

Our hinges use Cold Rolled Steel (SPCC) or SUS304 stainless steel for maximum corrosion resistance. The hydraulic cylinder features a copper core for superior thermal stability.

Precision Engineering

You get exact specifications every time:

· Cup diameter: 35mm standard

· Cup depth: 11.5mm-12.6mm

· Opening angles: 95° to 165°

· Tolerance control: ±0.01mm

Extended Durability

We test beyond industry standards. Your hinges undergo 80,000-cycle endurance testing during production. Most units exceed 100,000 cycles in breaking point analysis.

Silent Operation

The hydraulic buffer system ensures smooth, quiet closing. Your doors close completely in 3-6 seconds from a 30° angle with zero bounce-back.

Technical Specifications

Parameter	Specification
Material	Cold Rolled Steel (SPCC) / SUS304 Stainless Steel
Cup Diameter	35mm (standard)
Cup Depth	11.5mm - 12.6mm
Opening Angle	95° / 105° / 165° (customizable)
Damping System	Copper-core hydraulic cylinder
Cycle Life	50,000 - 80,000 cycles (tested to 100,000+)
Adjustment Range	±2mm (vertical/horizontal/depth)
Surface Treatment	Double-layer electroplating (Copper + Nickel)
NSS Test Rating	48h (steel) / 96h+ (stainless steel)
Load Capacity	75kg static load tested
Closing Time	3-6 seconds (from 30° angle)
Compliance Standards	ANSI/BHMA A156.9 Grade 2, EN 15570 Level 3
Origin	Qingdao, China
Brand	Ruirui

Where You Can Use Our Hydraulic Damping Hinges

High-End Residential Projects

Your kitchen cabinets deserve the best. Our hinges withstand high humidity and thousands of daily cycles while maintaining whisper-quiet operation.

Medical and Laboratory Settings

You need reliable performance in sensitive environments. The soft-close mechanism prevents jarring impacts on glass containers and precision instruments.

Commercial Office Spaces

Heavy-duty storage units require industrial-strength hardware. Our hinges deliver low-decibel performance even under constant daily use in high-traffic areas.

Hospitality and Retail

Our Hydraulic Damping Hinge ensures guest satisfaction depends on details. Silent cabinet operation creates premium experiences in hotels, showrooms, and boutique stores.

Quality Control You Can Trust

We implement multiple inspection checkpoints:

Cycle Testing: Every production batch undergoes 50,000-cycle testing per ANSI/BHMA standards. We verify zero oil leakage and consistent damping force.

Corrosion Resistance: Our standard NSS test runs 48 hours for steel variants and 96+ hours for stainless steel models. We inspect internal rust resistance at critical pivot points.

Damping Consistency: Each hinge must close within our specified 3-6 second window. This eliminates air bubbles and verifies premium oil quality.

Load Testing: We apply 75kg vertical loads to ensure your hydraulic seals and internal springs maintain integrity without permanent deformation.

Dimensional Accuracy: Steel thickness verification using precision calipers (standard range: 1.0mm-1.2mm). Full CMM inspection reports available.

Why Choose Ruirui as Your Manufacturing Partner?

Factory-Direct Advantages

You save 20-30% compared to trading companies. We control every production stage from raw material to finished product.

One-Stop Manufacturing

We handle everything:

· Raw material procurement

· Precision machining with 20+ CNC machines

· Surface treatment and electroplating

· Assembly and testing

· Export-ready packaging

Proven OEM/ODM Capabilities

Our R&D team assists with design optimization and customization. We've served global clients for 17+ years with complete IP protection.

Fast Turnaround

· Prototypes: 1-2 weeks

· Mass production: 4-7 weeks

· 70% of urgent orders ship on time

Complete Documentation

You receive material certificates, full dimensional reports, and PPAP documentation for compliance verification.

FAQ

Q: What's the minimum order quantity for custom specifications?

A: We develop prototypes without MOQ. Custom specs require 500 units for mass manufacturing, whereas common versions require less.

Q: Can opening angle and cup size be customised?

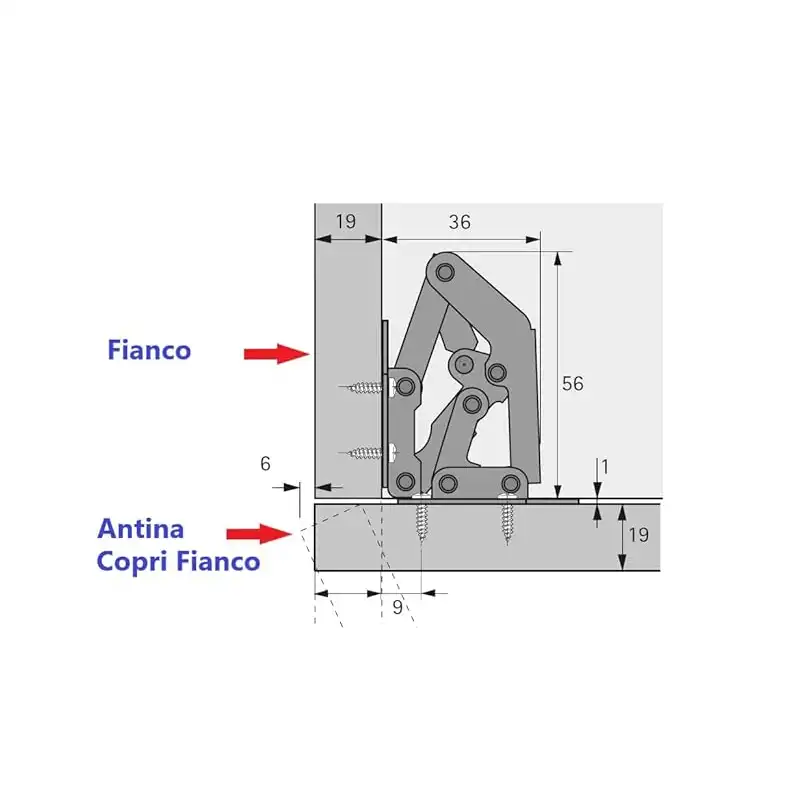

A: Yes. Based on your cabinet design, our engineers can change opening angles (95°-165°) and dimensions. Simply give us your CAD files for DFM analysis.

Q: How do you maintain damping performance across batches?

A: AQL-compliant first-article inspection and batch sampling are performed. Every hinge undergoes closing force study to ensure 3-6 second closing.

Q: What certifications do you offer?

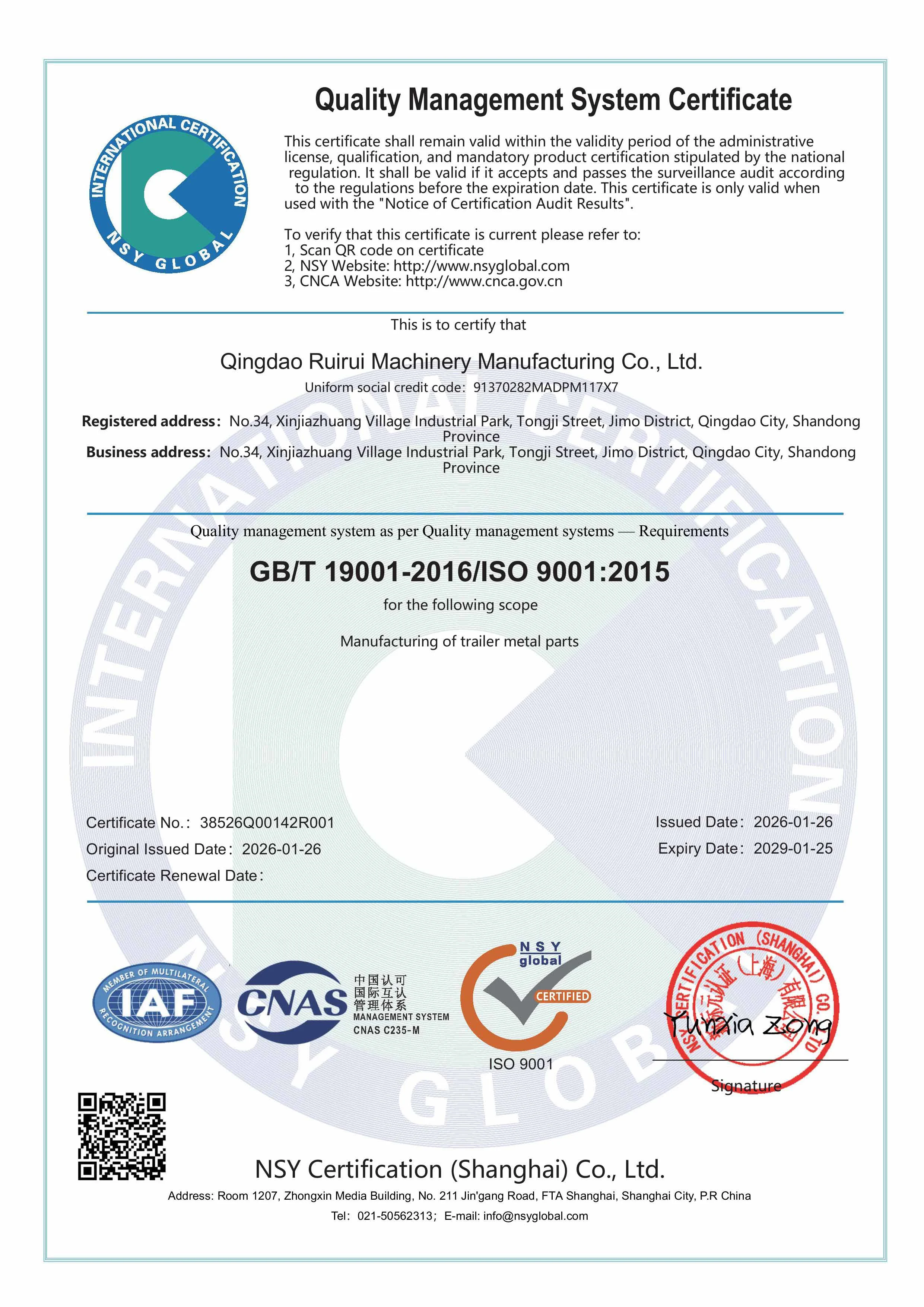

A: Our facility is ISO 9001:2015 certified. We issue ANSI/BHMA and EN material test certificates, dimensional reports, and compliance documents.

Q: Do you offer surface treatments beyond electroplating?

A: Yes. Powder coating, anodising, and corrosion-resistant treatments are available according on your environmental needs.

Q: What's your warranty policy?

A: We guarantee our hinges' cycle life ratings. Warranty-covered units are replaced free of charge for manufacturing defects.

Q: Can you take urgent orders?

A: Our 24/7, 3-shift production capacity accommodates rush orders. Send us your timeframe for faster scheduling.

Q: What shipping terms do you offer?

A: EXW, FOB, and DDP are available for worldwide shipping. Our proximity to Qingdao Port streamlines exports.

Contact Us

Ready to upgrade your cabinet hardware with Hydraulic Damping Hinge? Send your specifications to kshdhardware@qdkshd.com for a detailed quote within 48 hours.
