Stainless steel air conditioner outdoor unit bracket

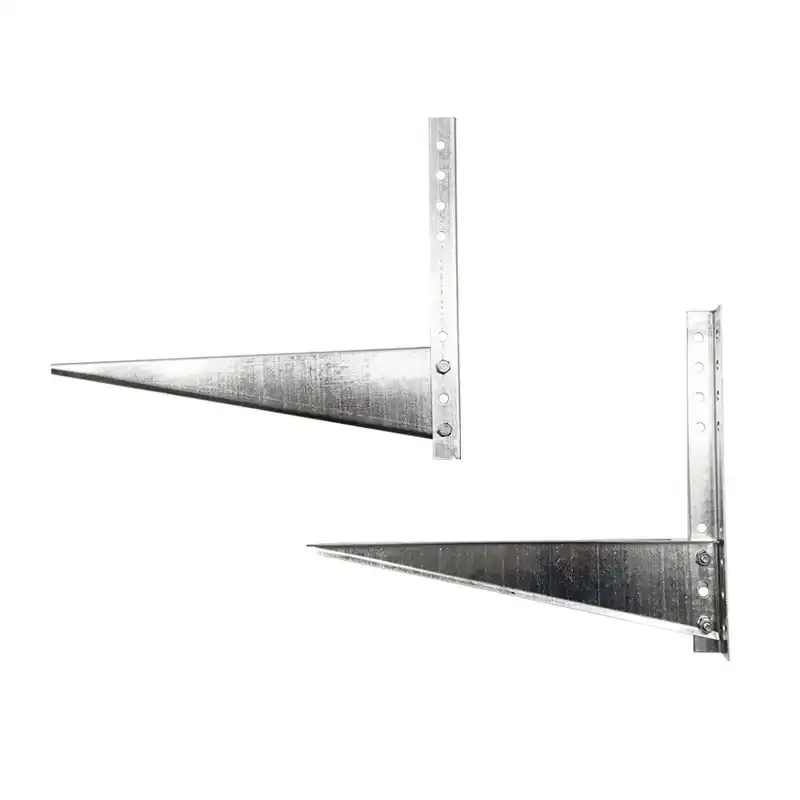

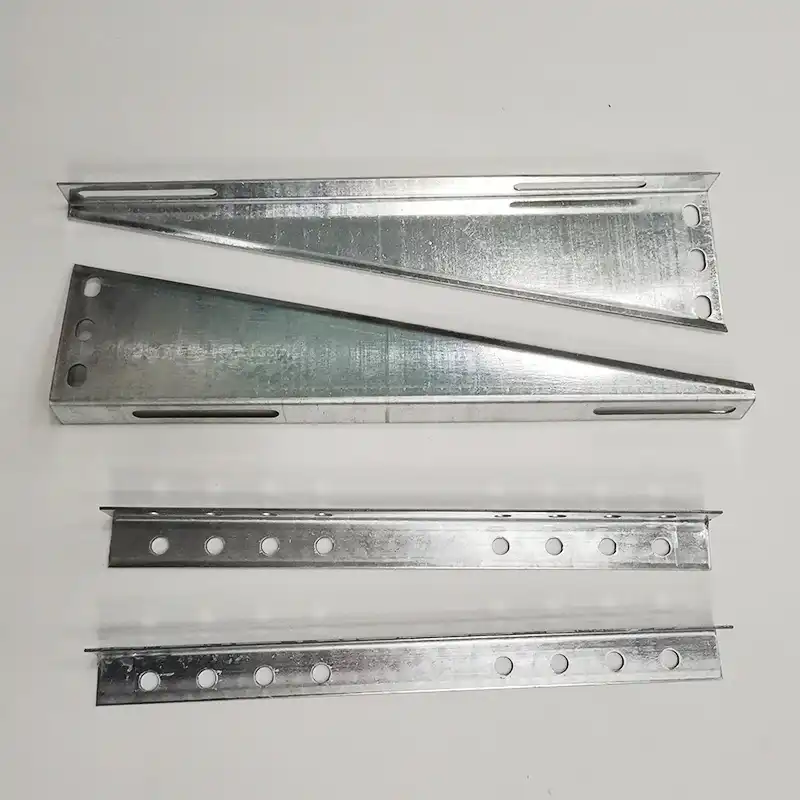

Stainless Steel Air Conditioner Outdoor Unit Bracket

When you install air conditioning units in demanding environments, you need support systems that won't let you down. Our stainless steel air conditioner outdoor unit bracket from Qingdao RuiRui Machinofacture Co., Ltd combines 17+ a long time of exactness fabricating skill with progressed corrosion-resistant designing. Built to bolster loads from 150kg to 350kg with resistances as tight as ±0.005mm, these brackets dispose of untimely disappointment in coastal, mechanical, and high-rise applications. With fabric thickness alternatives extending from 1.5mm to 3.0mm and malleable quality surpassing 515 MPa, your establishments pick up the unwavering quality that painted carbon steel essentially cannot deliver.

What Makes Our Bracket Different?

Engineered for Extreme Environments

You've likely seen rusted brackets coming up short on beachfront properties or mechanical locales. That's precisely what our arrangement prevents.

Our brackets utilize premium austenitic stainless steel grades. These materials stand up to the "ruddy rust" wonder that crushes conventional underpins inside 3-5 years.

Available Material Grades:

Grade	Composition	Best For	Lifespan
SS201	High Manganese	Inland, low-humidity areas	10-12 years
SS304	18% Chromium, 8% Nickel	General outdoor use, acid rain resistance	15-18 years
SS316L	Added 2-3% Molybdenum	Coastal zones, direct salt-spray	20+ years

The chromium-nickel composition creates a self-healing passive oxide layer. Even when minor scratches occur, this layer regenerates automatically to maintain protection.

Precision Manufacturing Matters

Every bracket leaving our Qingdao facility undergoes strict quality control.

Our CNC machining capabilities ensure dimensional accuracy that generic products can't match. We use 20+ advanced machines including multi-axis centers to achieve:

·  Standard tolerance: ±0.01mm

·  Critical dimension tolerance: ±0.005mm

·  Perfect hole alignment for hassle-free installation

This precision means your mounting hardware fits correctly the first time. No field modifications. No frustrating adjustments on ladders.

Load-Bearing You Can Trust

Technical Performance Specifications:

Parameter	Value	Industry Standard
Tensile Strength	515-620 MPa	400-500 MPa
Safe Working Load	150-350 kg	100-200 kg

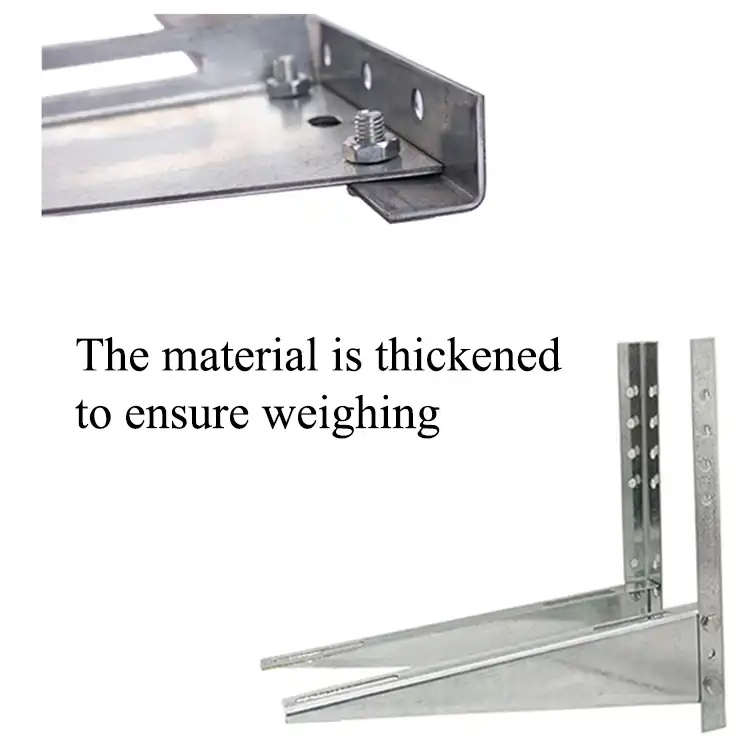

Material Thickness	1.5-3.0 mm	1.2-2.0 mm
Safety Factor	3:1	2:1
Vibration Resistance	High fatigue rating	Medium

These numbers translate to real-world safety. Your units stay secure through typhoons, earthquakes, and constant compressor vibrations.

Where Your Installation Benefits Most

Coastal Residential Projects

Salt air destroys ordinary brackets fast. Within 24 months, you'll see structural compromise.

Our SS316 variant thrives in these conditions. Properties within 5km of shorelines need this chloride-induced stress corrosion cracking resistance.

Your maintenance costs drop to nearly zero over 15-20 years.

Industrial and Chemical Environments

High acidity? Alkaline exposure? Standard powder coatings fail quickly in these settings.

Heavy-duty VRF units require stable platforms. Our stainless steel air conditioner outdoor unit bracket maintains integrity where painted alternatives deteriorate.

High-Rise Commercial Buildings

Urban building codes demand both strength and aesthetics.

The high strength-to-weight ratio of our design allows sleek, low-profile installations. You meet stringent safety requirements without creating visual clutter on premium facades.

Manufacturing Excellence Behind Every Bracket

One-Stop Production Control

Since 2008, we've operated as a source factory. That means you deal directly with manufacturers—no middlemen inflating prices.

Our complete production chain includes:

1. Raw Material Procurement - Certified stainless steel from verified suppliers

2. CNC Precision Processing - Multi-axis machining for complex geometries

3. Quality Testing - CMM inspection, dimensional verification

4. Surface Finishing - Brushed or mirror polish options

5. Export-Ready Packaging - Protective materials for worldwide shipping

ISO 9001 Quality Assurance

Every batch undergoes rigorous inspection:

·  First Article Inspection (FAI) before production runs

·  In-process monitoring at each manufacturing stage

·  Final dimensional reports with material certification

·  Batch sampling per AQL standards

This systematic approach delivers consistency. Your 100th bracket performs identically to your first.

Customization Capabilities

Standard 450×500mm specification fits most applications. But your project might need something different.

Our OEM/ODM services include:

·  Custom dimensions for oversized units

·  Modified hole patterns for unique mounting situations

·  Special surface treatments

·  Design optimization through DFM analysis

Send your specifications to our engineering team. You'll receive a detailed quote within 48 hours.

Installation and Maintenance Advantages

Quick, Straightforward Mounting

Precision manufacturing means easier installation for your technicians.

Pre-drilled holes align perfectly with standard wall anchors. No measuring errors. No drilling mistakes.

The robust construction dampens vibration transmission. Your customers experience quieter operation and fewer callback complaints.

Virtually Maintenance-Free

Traditional brackets require inspection and repainting every 2-3 years.

Your stainless steel air conditioner outdoor unit bracket eliminates this burden. The material doesn't need protective coatings that crack and peel.

Rain naturally cleans the surface. The passive oxide layer continuously renews itself.

Thermal Stability

Summer sun heats exterior walls intensely. Poor-quality brackets warp under thermal stress, creating dangerous installation angles.

Our stainless steel maintains dimensional stability across temperature extremes. From freezing winters to scorching summers, your units remain level and secure.

Product Specifications Overview

Feature	Details
Origin	Qingdao, China
Standard Size	450mm × 500mm
Material Options	SS201 / SS304 / SS316L
Thickness Range	1.5mm - 3.0mm
Load Capacity	150kg - 350kg
Surface Finish	Brushed / Mirror polish
Customization	Full OEM/ODM support
Certifications	ISO 9001:2015
Lead Time (Prototype)	1-2 weeks
Lead Time (Production)	4-7 weeks
Shipping Terms	EXW / FOB / DDP

Frequently Asked Questions

Q: How do I select between SS304 and SS316 grades?

A: Consider your establishment environment. SS304 works perfectly for common open air applications and urban regions with typical mugginess. Select SS316 for coastal areas inside 5km of the sea, or any environment with coordinate salt-spray introduction. The included molybdenum in SS316 gives prevalent chloride resistance worth the extra speculation in cruel conditions.

Q: What's the greatest discuss conditioner weight these brackets can support?

A: Our standard brackets securely back units from 150kg to 350kg depending on thickness and plan arrangement. This covers most private and commercial AC frameworks from 9,000 BTU to 36,000 BTU units. For bigger mechanical frameworks, we offer custom-engineered arrangements with higher stack ratings.

Q: Will the brackets fit my existing divider mounting setup?

A: The standard 450×500mm setup matches most common establishment designs. Our accuracy CNC penetrating guarantees gap arrangement precision inside ±0.005mm. If you're working with non-standard dispersing, send us your mounting measurements for custom fabrication.

Q: How long will these brackets really last?

A: Anticipated life expectancy shifts by review and environment. SS201 regularly keeps going 10-12 a long time in ordinary conditions, SS304 gives 15-18 a long time of benefit, and SS316 surpasses 20 a long time indeed in forceful coastal situations. This significantly outflanks galvanized or painted steel choices that fall flat inside 3-5 a long time in comparable conditions.

Q: Do you give establishment hardware?

A: Brackets are provided prepared for establishment. Divider stays and latches ought to be chosen based on your particular divider fabric (concrete, brick, wood outline, etc.) to guarantee appropriate holding quality. We can prescribe suitable equipment determinations for your application.

Q: What's your least arrange quantity?

A: We offer zero MOQ for model advancement, permitting you to test our quality some time recently committing to bigger orders. For generation runs, we oblige both little group orders and high-volume prerequisites with adaptable scheduling.

Q: How rapidly can you fulfill pressing orders?

A: Standard lead time is 1-2 weeks for models and 4-7 weeks for generation volumes. We transport 70% of pressing orders on time through optimized generation arranging. Contact us with your timeline necessities for sped up planning options.

Q: What quality documentation do you provide?

A: Each shipment incorporates full fabric certification (MTC), dimensional review reports, and compliance documentation. For OEM clients, we give PPAP and Reasonable reports as required. All items experience 100% review some time recently delivery.

Why Contractors and Installers Choose RuiRui

Factory-Direct Pricing: Eliminate middleman markup. Our source factory advantage delivers 20-30% cost savings compared to trading companies.

Proven Track Record: Since 2008, we've served HVAC professionals across global markets. Our products handle the toughest installation challenges from typhoon-prone regions to industrial chemical plants.

Engineering Support: Not sure which specification fits your project? Our technical team provides free design-for-manufacturability analysis. Upload your CAD files or describe your requirements for expert guidance.

Reliable Delivery: Located in Qingdao with direct port access, we ensure efficient shipping worldwide. Choose from EXW, FOB, or DDP terms based on your logistics preferences.

Complete Traceability: ISO 9001:2015 certification backs our quality claims. Every bracket can be traced through our production system for accountability you can document.

Get Your Custom Quote Today

Ready to upgrade your installations with brackets that last? Whether you need standard configurations or custom stainless steel air conditioner outdoor unit bracket solutions for unique applications, we're here to help.

Contact our engineering team at kshdhardware@qdkshd.com for prompt technical support and competitive pricing.
