Thickened general air conditioning external unit bracket

Thickened General Air Conditioning External Unit Bracket - Heavy-Duty HVAC Mounting Solution

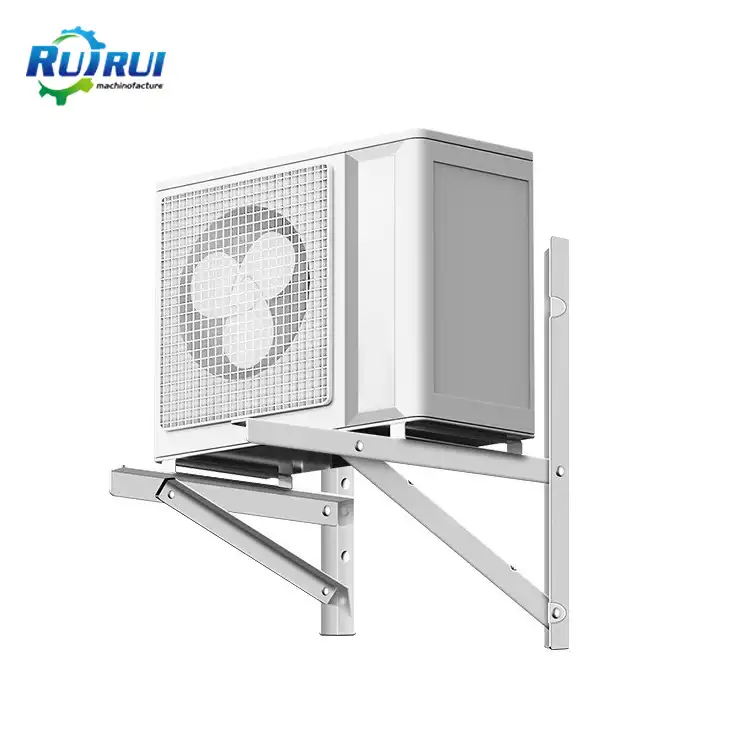

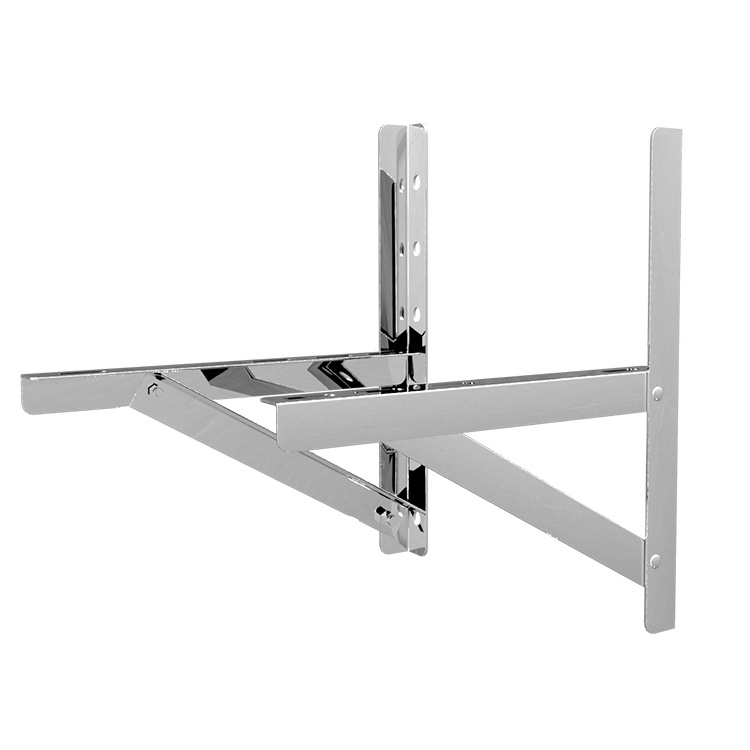

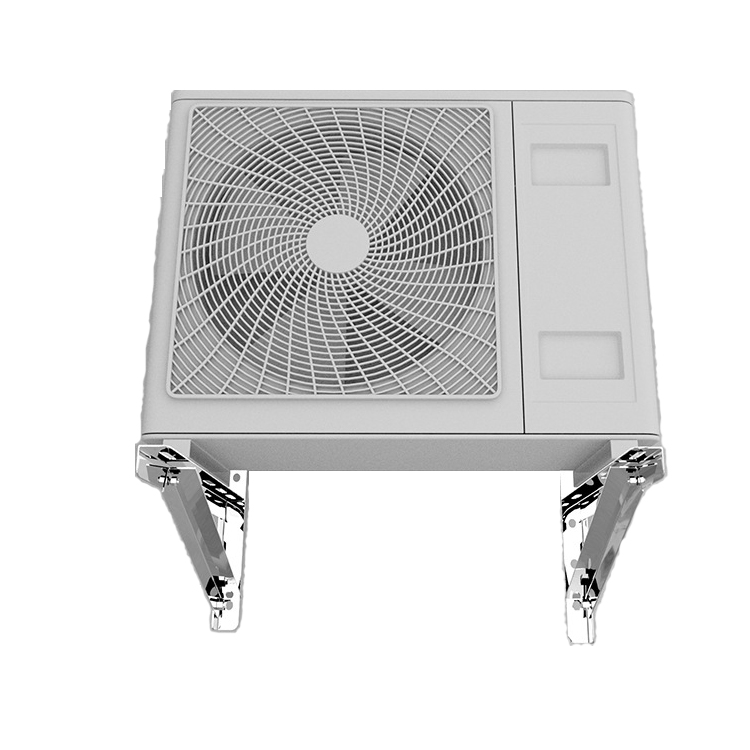

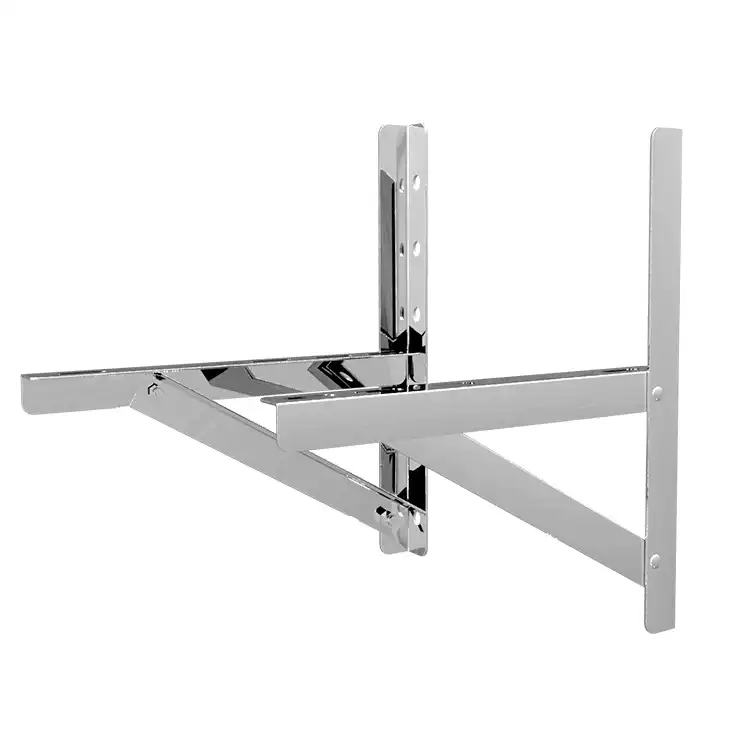

When you're installing heavy-duty HVAC systems, safety isn't negotiable. Our Thickened general air conditioning external unit bracket from Qingdao RuiRui Machinofacture Co., Ltd. delivers enterprise-grade unwavering quality with strengthened 2.0mm-3.0mm gage steel development. Designed to bolster loads up to 500kg with a 4x security figure, this all inclusive mounting framework suits AC units from 9,000 to 36,000 BTU (1P-3P). With 500-hour salt shower resistance, hot-dip galvanized or SS304/SS316 stainless steel choices, and 60-100μm powder coating, you get prevalent erosion assurance. Our ISO 9001:2015 certified office guarantees zero-defect generation through total quality control—from crude fabric review to wrapped up item testing.

Why Reinforced Brackets Matter for Your HVAC Installation

Standard brackets fail when you need them most. Thin 1.0mm-1.5mm steel can't handle modern inverter compressor weights or constant vibration.

You face real risks with economy-grade hardware:

·  Metal fatigue from 24/7 compressor operation

·  Structural deformation in high-rise installations

·  Catastrophic unit detachment during storms

·  Accelerated rust in coastal environments

Our thickened plan understands these torment points. You get improved unbending nature that hushes vibration clamor and avoids unsafe reverberation transmission to your building structure.

The all-inclusive open plan implies compatibility over brands. Whether you're mounting a 1HP private unit or a 5HP commercial framework, the movable cross-bars and prolonged jolt spaces give adaptability without compromising strength.

Technical Specifications That Deliver Peace of Mind

Parameter	Specification
Material	Q235 Hot-Dip Galvanized Steel / SUS304/SS316 Stainless Steel
Steel Thickness	2.0mm - 3.0mm (traverse arms up to 2.5mm)
Load Capacity	Up to 500kg (tested with 4x safety factor)
Surface Treatment	Electrostatic polyester powder coating (60-100μm) / Hot-dip galvanizing (zinc layer >80 microns)
Corrosion Resistance	500-hour neutral salt spray test (ISO 9227 compliant)
Structural Design	Triangular mechanics with reinforced rivets / full-penetration welding
Compatibility	Universal fit for 9,000-36,000 BTU units (1P-3P)
Origin	Qingdao, China
Certification	ISO 9001:2015

Where Your Installation Demands Maximum Reliability

Coastal & High-Salinity Zones

Salt discusses crushing standard brackets inside 2-3 times. Our fortified coating framework and fabric thickness avoid basic disappointment from accelerated oxidation. You won't confront crisis substitution costs or obligation issues.

High-Rise Commercial Buildings

Wind shear increments exponentially with height. The thickened gage gives unbending nature to withstand cyclonic strengths and consistent compressor vibrations. Your units remain secure on concrete, brick, or composite facades.

Multi-Split & VRF Systems

Heavy multi-fan external units exceed standard bracket weight limits. Our thickened general air conditioning external unit bracket handles these demanding applications while maintaining installation flexibility across diverse wall substrates.

Industrial & Factory Settings

Corrosive chemical situations and temperature extremes require prevalent fabric execution. The progressed galvanizing and discretionary stainless steel development guarantee decades of dependable service.

Engineering Advantages Built Into Every Bracket

Superior Material Science

We utilize precision-rolled Q235 steel, not reused scrap metal. Each sheet experiences ductile quality testing some time recently entering generation. You get reliable execution over each unit.

Advanced Structural Mechanics

The triangular bolster geometry disseminates weight strengths ideally. Full-penetration welds at 90-degree stretch focuses dispense with frail spots. This isn't guesswork—it's confirmed engineering.

Vibration Damping Technology

Increased mass and rigidity lower the resonant frequency. Your customers won't complain about compressor noise transmitting through walls. The thicker steel naturally absorbs mechanical energy.

Universal Compatibility Design

Adjustable sliding cross-bars accommodate different unit footprints. Elongated bolt slots provide installation tolerance for non-standard spacing. You reduce inventory complexity while expanding service capabilities.

Quality Assurance You Can Verify

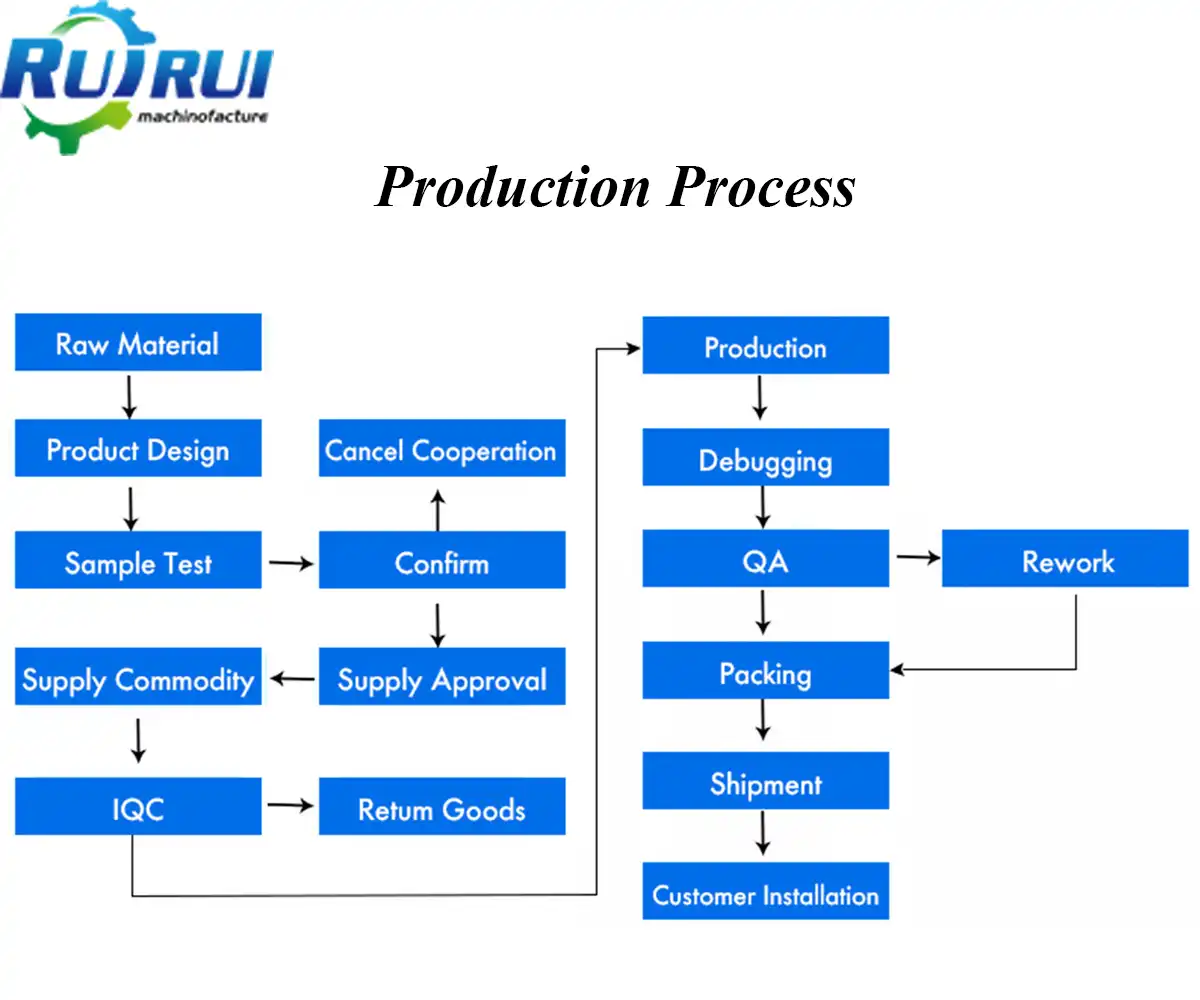

Our one-stop manufacturing capability ensures quality control at every stage:

·  Raw Material Inspection: Material certification and composition testing before production

·  In-Process Control: Dimensional checks during stamping and welding operations

·  Surface Treatment Verification: Coating thickness and adhesion testing

·  Final Product Testing: Load testing and corrosion resistance validation

·  Documentation: Full traceability with batch records and test reports

With 20+ years of manufacturing experience and ISO 9001:2015 certification, we maintain strict standards. Every thickened general air conditioning external unit bracket ships with complete quality documentation.

Installation Flexibility Meets Safety Standards

The modular design adapts to your specific project requirements. Whether you're working with reinforced concrete, hollow brick, or steel framework, the universal mounting pattern simplifies installation.

Pre-drilled holes accept standard hardware. Adjustable positioning accommodates unit variations without custom fabrication. You complete installations faster while maintaining structural integrity.

The powder coating provides both corrosion protection and professional aesthetics. Choose from standard colors or specify custom finishes for architectural requirements.

Why HVAC Contractors Choose RuiRui

Factory-Direct Pricing

No middlemen means 20-30% cost savings compared to trading companies. You get manufacturer quality at competitive prices.

Fast Turnaround

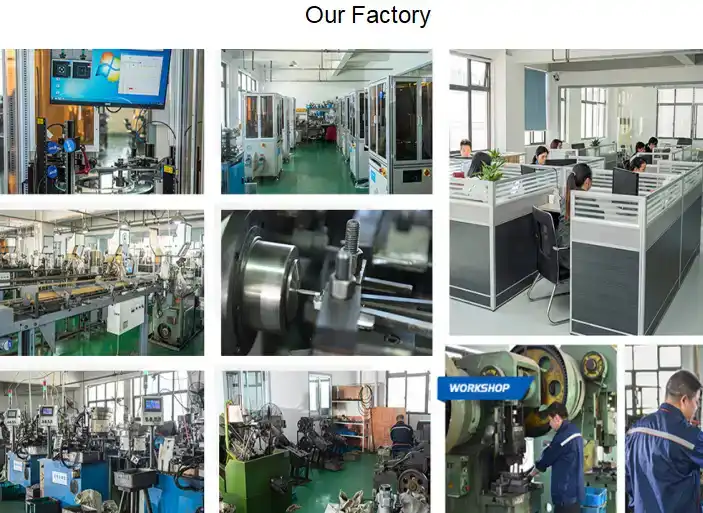

Our 24/7 production capacity with 20+ CNC machines ensures rapid order fulfillment. Prototypes ship in 1-2 weeks. Volume orders deliver in 4-7 weeks.

Engineering Support

Our R&D team provides design-for-manufacturability consultation. Need custom dimensions? We handle OEM/ODM modifications efficiently.

Global Shipping Capability

Located near Qingdao Port, we offer flexible EXW, FOB, or DDP terms. Secure packaging ensures damage-free delivery worldwide.

Frequently Asked Questions

Q: What makes a thickened bracket different from standard options?

A: Standard brackets use 1.0-1.5mm steel that can deform under load. Our 2.0-3.0mm construction provides 2-3x material thickness for superior strength and vibration resistance.

Q: Will this bracket fit my specific AC brand?

A: Yes. The universal slotted design with adjustable cross-bars accommodates most brands from 1HP to 3HP. Contact us with your unit dimensions for confirmation.

Q: How long does the corrosion protection last?

A: Our 500-hour salt spray test rating translates to 10-15+ years in typical environments. Coastal installations should use stainless steel options for maximum longevity.

Q: Can you handle custom sizing for commercial projects?

A: Absolutely. Our CNC machining capabilities support OEM modifications. Send CAD files to kshdhardware@qdkshd.com for free DFM analysis and quotation within 48 hours.

Q: What documentation do you provide for compliance?

A: Every order includes material certifications, dimensional reports, and ISO 9001 quality documentation. We support contractor and building code requirements.

Q: Do you offer samples for testing?

A: Yes, we provide prototype samples with zero MOQ requirements. Contact our engineering team to discuss your specific testing needs.

Secure Your HVAC Installations With Proven Reliability

Don't compromise safety with inferior mounting hardware. Our thickened general air conditioning external unit bracket delivers the structural integrity your projects demand.

Ready to upgrade your installation quality? Contact our engineering team today at kshdhardware@qdkshd.com for technical consultation and quotation.
