3.5T Caravan Coupling

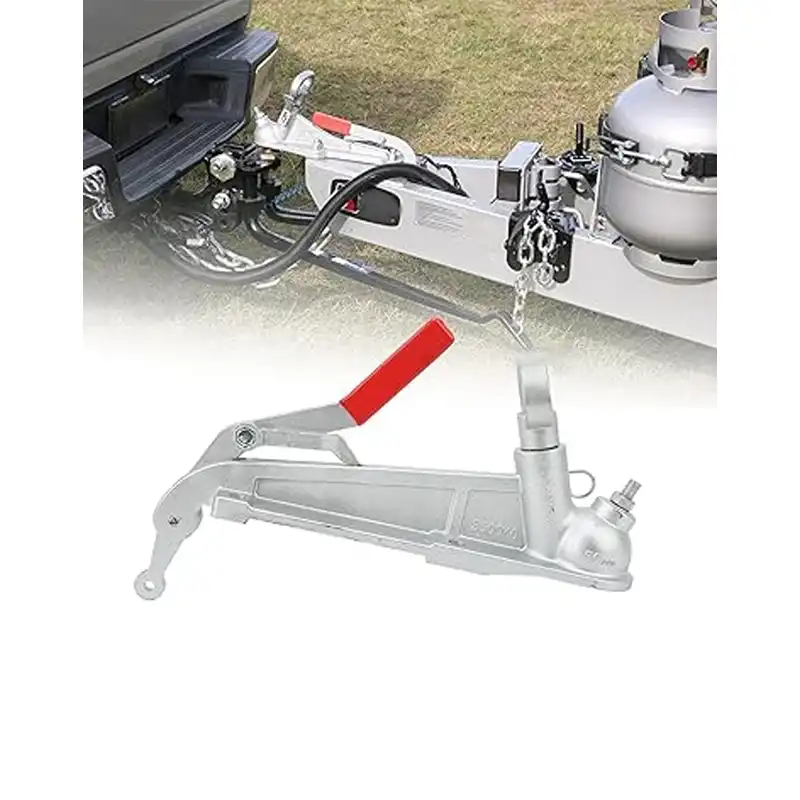

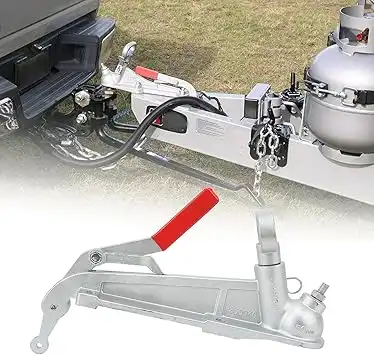

3.5T Caravan Coupling - Heavy-Duty Towing Solution for Your Caravan

When you're hauling a caravan with an Aggregate Trailer Mass up to 3,500kg, you need more than a standard coupling. Our 3.5T Caravan Coupling delivers enterprise-grade performance through precision engineering. Manufactured from high-tensile steel with advanced bending processes, this coupling handles D-Value forces exceeding 20kN while maintaining 360-degree articulation. With zinc-nickel coating providing 500+ hours salt spray resistance, it solves critical binding issues on undulating terrain. Our ISO 9001:2015 certified facility ensures every unit undergoes magnetic particle inspection and cyclic fatigue testing up to 2 million cycles. The standardized 4-bolt mounting pattern (184mm x 54mm) fits universal drawbar configurations, while integrated polyurethane bushes eliminate metal-on-metal noise during transit.

What Makes Our Caravan Coupling Different?

You've probably experienced the frustration of noisy connections or safety concerns when towing heavy loads. Our coupling addresses these exact pain points.

Built for Real-World Demands

Your caravan faces constant stress on corrugated roads and steep inclines. Traditional ball hitches simply can't handle the torsional forces. Our product uses high-tensile steel construction that distributes stress evenly across the connection point.

The secret lies in the material composition. We use premium steel that undergoes multiple quality checkpoints. From raw material inspection to final testing, nothing leaves our facility without meeting strict dimensional tolerances of ±0.01mm.

Superior Articulation Technology

Ever noticed how standard couplings bind during tight turns? That's because they lack proper multi-axis movement. Our design allows complete freedom of motion. Your trailer tracks smoothly behind your vehicle without transferring harmful stress to either chassis.

The low-profile design provides additional benefits. You get better clearance for spare wheels and rear-mounted accessories. This practical feature makes daily use significantly easier.

Technical Specifications

Parameter	Specification
Load Capacity	3,500kg ATM
Material	High-Tensile Steel
Manufacturing Process	Precision Bending + CNC Machining
Mounting Pattern	4-Bolt (184mm × 54mm)
Surface Treatment	Zinc-Nickel Coating
Corrosion Resistance	500+ Hours Salt Spray Test
Tolerance	±0.01mm Standard
D-Value Rating	>20kN
Certification	ISO 9001:2015
MOQ	1,000 pieces

Why Choose Qingdao RuiRui's Coupling Solution?

Factory-Direct Advantages

Working directly with us means you skip middlemen entirely. You'll save 20-30% compared to trader pricing. Our location near Qingdao Port ensures fast, cost-effective shipping worldwide.

With 20+ years of manufacturing experience, we've refined every production step. Our one-stop capabilities cover everything from material procurement to export-ready packaging.

Rigorous Quality Control

Each 3.5T Caravan Coupling undergoes comprehensive testing before shipment. We perform:

· First article inspection on every production batch

· Dimensional verification using CMM equipment

· Material certification documentation

· Salt spray corrosion testing

· Load simulation under real-world conditions

You receive full documentation with every order. This includes material certificates and dimensional reports that prove compliance with international standards.

Advanced Manufacturing Capabilities

Our 20+ CNC machines handle complex geometries with precision. We combine traditional bending techniques with modern machining for optimal strength-to-weight ratios.

The production process integrates quality checks at every stage. When raw materials arrive, they're tested for composition. During bending operations, we monitor dimensional accuracy continuously. Final assembly includes functional testing of all moving parts.

OEM/ODM Flexibility

Need custom modifications? Our engineering team provides design-for-manufactur ability analysis at no charge. Whether you require specific bolt patterns or unique surface treatments, we'll optimize your design for production efficiency.

We protect your intellectual property through strict NDAs and secure data handling. Your designs remain confidential throughout the manufacturing process.

Application Scenarios

This coupling excels in demanding environments:

Off-Road Caravanning: The robust construction withstands corrugated tracks and river crossings. Enhanced articulation prevents binding on steep approaches.

Commercial Trailers: Plant equipment and construction material transport benefits from the high load rating and fatigue resistance.

Coastal Environments: The advanced zinc-nickel coating resists salt air corrosion. You'll maintain full functionality even after years of beach camping.

Long-Distance Touring: Reduced vibration transmission means quieter, more comfortable journeys. The polyurethane components absorb road shock effectively.

Maintenance and Longevity

Proper care extends the service life significantly. For highway use, apply lithium-based grease every 10,000km. Off-road applications require more frequent greasing—approximately every 5,000km or after water crossings.

Watch for wear indicators. Inspect bolt holes for elongation annually. Check the locking mechanism springs back properly. Any excessive play beyond 1-2mm requires professional assessment.

Our manufacturing process builds longevity into the design. The bending operations create smooth stress curves without weak points. This eliminates common failure zones found in welded alternatives.

FAQ

Can I use this coupling on a trailer rated below 3,500kg?

Absolutely. Installing a higher-rated product on a lighter trailer is perfectly safe. It provides extra security margin without affecting the trailer's legal weight rating. Just verify the bolt pattern matches your draw bar configuration.

What causes squeaking noises from the coupling?

Squeaking typically indicates dry friction points. This happens when grease channels become blocked or depleted. Disassemble the unit, clean all surfaces thoroughly, and apply fresh lithium grease. Addressing this promptly prevents accelerated wear on pivot components.

How do I know when replacement is necessary?

Several indicators signal end-of-life. Look for cracks in the casting, especially near the neck area. Elongated bolt holes suggest overload damage. Excessive play in the shaft or a locking mechanism that won't engage properly means immediate replacement is required. Never compromise on coupling integrity.

Is special tooling required for installation?

Standard hand tools suffice for most installations. You'll need appropriate socket wrenches for the mounting bolts and basic greasing equipment. Our mounting pattern follows industry standards, ensuring compatibility with existing drawbar setups.

What makes your coupling better than standard ball hitches?

Traditional 50mm ball hitches can't handle the complex forces in 3.5-tonne applications. Our design manages longitudinal, lateral, and vertical forces simultaneously. The advanced articulation prevents binding that damages both vehicle and trailer. You get superior safety and durability.

Quality Assurance Process

Every coupling passes through multiple inspection stages:

Raw Material Verification: Steel composition testing confirms mechanical properties meet specifications.

In-Process Monitoring: CNC operations are checked for dimensional accuracy. Bending angles are verified against CAD models.

Non-Destructive Testing: Magnetic particle inspection reveals surface discontinuities invisible to the eye.

Functional Testing: Locking mechanisms undergo vibration simulation. Articulation range is measured precisely.

Final Inspection: Complete dimensional reports document conformance. Only fully compliant units receive approval for shipment.

This comprehensive approach ensures you receive components that perform reliably under real-world stress.

Global Shipping and Support

We handle international logistics efficiently. Choose from EXW, FOB, or DDP terms based on your preferences. Our location near Qingdao Port provides access to major shipping routes worldwide.

Lead times remain competitive: prototypes ship within 1-2 weeks, while production runs typically complete in 4-7 weeks. We maintain transparent communication throughout the manufacturing cycle with regular progress updates.

For urgent requirements, our optimized production planning delivers 15% faster turnaround compared to industry averages. This efficiency comes from integrated supply chain management and 24/7 production capabilities.

Contact Us

Ready to upgrade your towing safety with 3.5T Caravan Coupling? Email us at kshdhardware@qdkshd.com for technical specifications, custom quotes, and DFM analysis.
