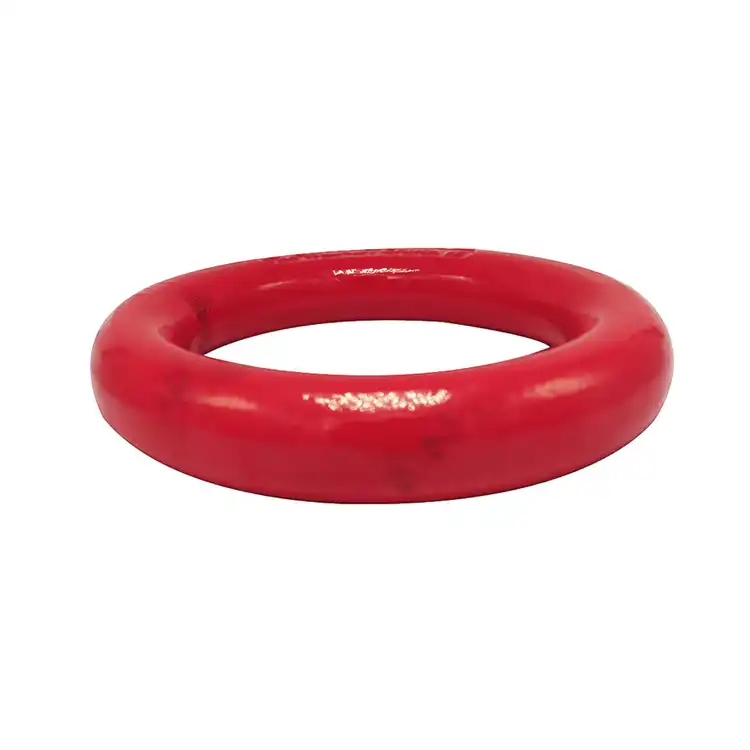

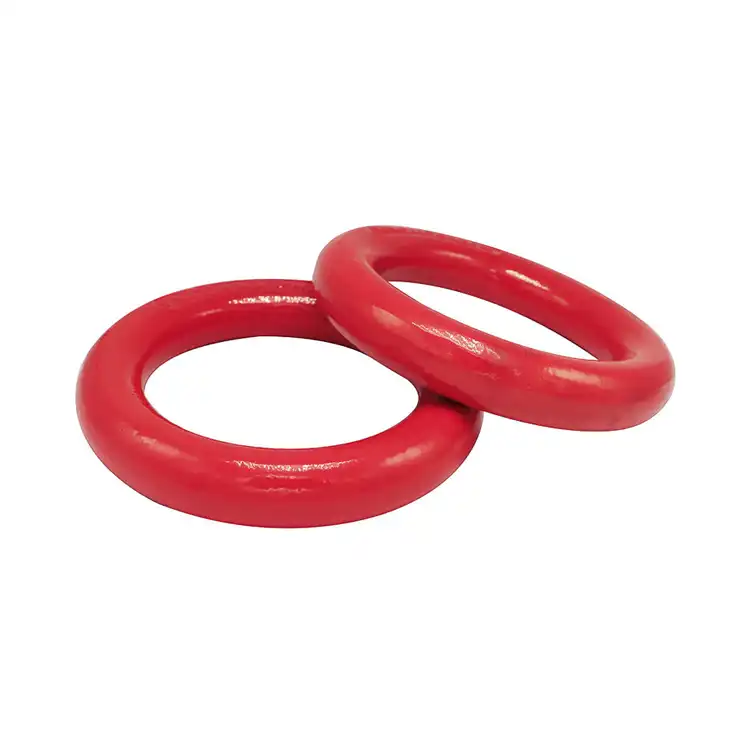

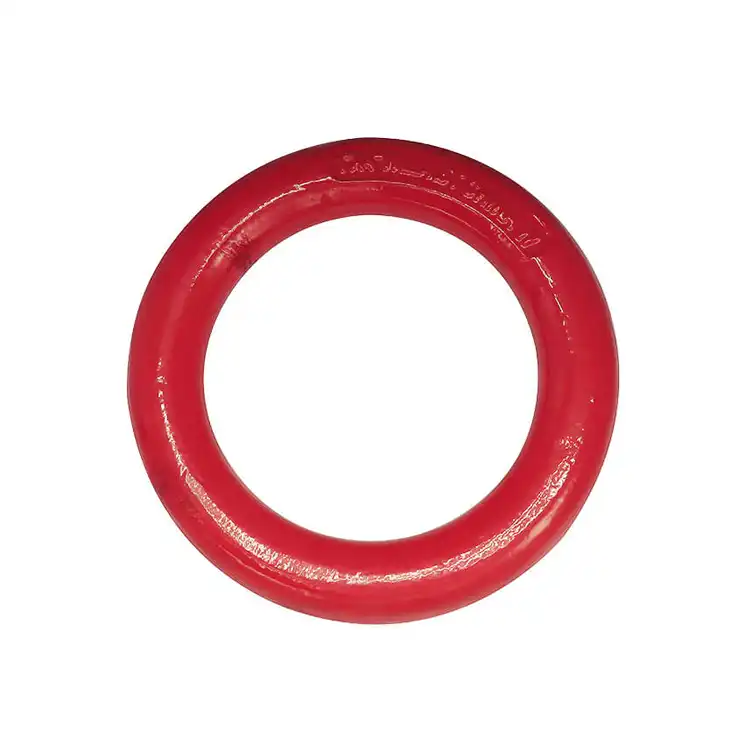

Forged Alloy Steel Weldless Round Master Ring

Forged Alloy Steel Weldless Round Master Ring - Premium Industrial Rigging Solutions

Qingdao Ruirui Machinery Manufacturing Co., Ltd presents enterprise-grade Forged Alloy Steel Weldless Round Master Ring solutions engineered for critical lifting operations. Our consistent development conveys prevalent metallurgical judgment with 4:1 security components and 20,000+ stack cycle evaluations. Including nonstop grain stream structure and warm treatment preparing, these rings dispense with weld zone vulnerabilities whereas keeping up ±0.005mm machining accuracy. With 17+ a long time of OEM involvement and ISO 9001:2015 certification, we provide one-stop fabricating from crude fabric acquirement to wrapped up item testing, guaranteeing dependable execution in requesting mechanical environments.

Product Specifications

Parameter	Specification
Material	High-grade Alloy Steel (Grade 80/100)
Manufacturing Process	Closed-die Forging
Heat Treatment	Quenched and Tempered
Safety Factor	4:1 or 5:1
Fatigue Rating	20,000+ load cycles at 1.5x WLL
Temperature Range	-40°C to 200°C (-40°F to 400°F)
Surface Finish	Painted, Galvanized, or Self-colored
Quality Standard	ISO 9001:2015, ASME B30.26, EN 1677-4
Tolerance	±0.005mm precision machining
Warranty	12 Months

Superior Engineering for Critical Applications

Metallurgical Excellence

Your fixing operations request unwavering quality that welded components basically cannot give. Our weldless plan highlights nonstop grain stream that takes after the ring's form, disposing of push concentration focuses common in welded options. This consistent development conveys extraordinary weariness resistance and affect strength.

The extinguished and tempered warm treatment prepare guarantees uniform hardness dissemination all through the ring. This cautious warm handling makes the ideal adjustment between quality and ductility, giving unmistakable distortion notices some time recently disastrous disappointment occurs.

Advanced Manufacturing Capabilities

Our state-of-the-art office combines accurate design with demonstrated fabricating expertise:

CNC Machining Integration: 20+ progressed machines counting 3/4/5-axis centers, guarantee dimensional precision inside ±0.005mm tolerances.

Complete Quality Control: Each ring experiences confirmation stack testing at 2.5 times the Working Stack Constrain, attractive molecule review per ISO 9934, and chemical spectrographic analysis.

Traceability Brilliance: Each unit highlights solid markings counting producer recognizable proof, steel review, measure details, and one of a kind follow codes connecting to Process Test Certificates.

Industrial Applications

Heavy Manufacturing Operations

Multi-leg chain sling congregations advantage from the circular profile's ideal snare engagement characteristics. Your crane operations accomplish concentric stacking dispersion, decreasing point-loading dangers amid overwhelming apparatus and steel coil handling.

Offshore Energy Solutions

Marine environments demand superior corrosion resistance and shock load tolerance. Our Forged Alloy Steel Weldless Round Master Ring connects wire rope bridles in subsea manifold installations, withstanding dynamic wave-induced stresses that compromise welded alternatives.

Mining and Excavation

Abrasive, high-tonnage applications require smooth profiles that minimize manufactured sling wear. The consistent surface decreases contact focuses whereas keeping up basic keenness beneath extraordinary operational conditions.

Quality Assurance That Exceeds Standards

Comprehensive Testing Protocols

Your safety requirements drive our rigorous quality procedures:

·  Proof Load Testing: Individual verification at 2.5x WLL

·  Magnetic Particle Inspection: Surface crack detection per ASTM E1444

·  Ultimate Breaking Load: Batch testing validates design factors

·  Fatigue Analysis: Cyclic loading verification ensures long-term reliability

Certification and Compliance

Our ISO 9001:2015 certified facility maintains strict adherence to international standards. Complete documentation packages include material certifications, PPAP reports, and full dimensional analysis for OEM compliance verification.

Frequently Asked Questions

Q: How does grain structure affect performance compared to welded rings?

The continuous grain flow in our forged design provides superior longitudinal strength and impact resistance. Unlike welded rings with interrupted grain patterns at fusion zones, our seamless construction eliminates stress concentration vulnerabilities.

Q: What inspection criteria determine replacement requirements?

Following ASME B30.26 guidelines, replace rings showing 10% cross-sectional wear, 5% internal length increase, or any visible damage including nicks, cracks, or heat exposure evidence.

Q: Can these rings handle elevated temperature applications?

Standard Working Load Limits apply up to 200°C (400°F). Extended exposure between 400-600°F requires 90% load reduction. Applications exceeding 600°F need manufacturer consultation for specific recommendations.

Why Choose Qingdao Ruirui Manufacturing

Factory-Direct Advantages

Eliminate middleman costs while ensuring faster delivery times. Our integrated production approach delivers 20-30% cost savings compared to trading companies, with 70% of urgent orders meeting accelerated schedules.

Engineering Support

Our dedicated R&D team provides design-for-manufacturability analysis, helping optimize your rigging configurations for maximum safety and efficiency. From prototype development to mass production, we support your complete project lifecycle.

Global Manufacturing Excellence

Located in Qingdao with convenient port access, we serve worldwide markets with flexible shipping terms including EXW, FOB, and DDP options. Our 24/7 production capacity ensures consistent supply chain reliability.

Trust product solutions from Qingdao Ruirui for applications where failure is not an option. Our combination of advanced metallurgy, precision manufacturing, and comprehensive quality control delivers the performance your critical operations demand.

Contact Us

Ready to upgrade your rigging safety? Contact kshdhardware@qdkshd.com for technical specifications and custom Forged Alloy Steel Weldless Round Master Ring solutions.
