Trailer Ball vs Pintle Hitch: Which Towing System Wins?

Imagine pulling up to connect your trailer with loaded equipment, but the connection keeps going missing. Sweat is streaming down your back after you've spent fifteen exasperating minutes attempting to get everything lined up precisely. Does it sound familiar? Safety, effectiveness, and avoiding those annoying connection moments are more important considerations when deciding between a trailer ball and a pintle hitch than personal taste. Knowing these two towing techniques will help you save time, money, and hassles while pulling a recreational trailer on smooth roads or moving construction equipment across uneven terrain. To assist you in selecting the best option for your particular towing requirements, this thorough article explains the practical distinctions between pintle hitch and trailer ball systems.

Understanding Trailer Ball Hitch Systems

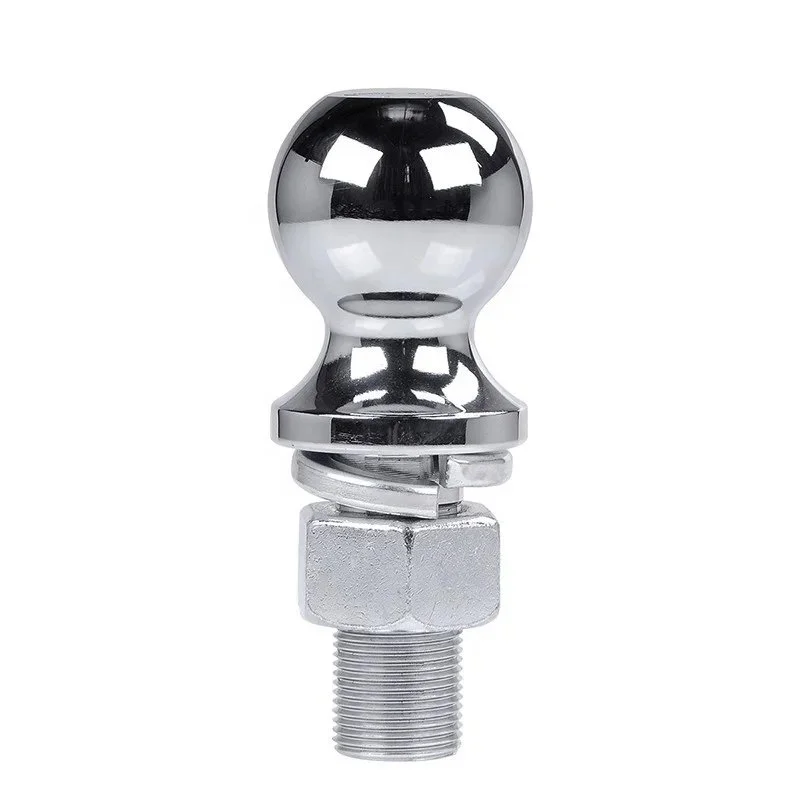

The most well-known towing attachment for light commercial and recreational uses is the trailer ball hitch. This technique uses a simple ball-and-socket mechanism in which the coupler on the trailer clamps firmly over a spherical ball that is attached to the hitch receiver of the towing vehicle. The trailer ball system's simplicity and tight-fitting connection, which leaves little room between parts, are what make it so beautiful. This tight tolerance lessens the startling motions that might happen with looser connections, resulting in smoother towing experiences on paved roads and highways. Trailer balls are certified for specified weight capabilities ranging from light-duty applications to around 10,000 pounds gross trailer weight. They are available in standard diameters of 1-7/8 inches, 2 inches, and 2-5/16 inches. Trailer ball systems are perfect for situations where passenger comfort is important because of their precise engineering. The trailer ball's close fit reduces a lot of the clanging and banging that comes with looser hitch connections, whether you're towing a camper trailer full of family members or taking a boat to the lake for a weekend escape. To guarantee reliable performance, modern trailer ball designs use cutting-edge materials and production techniques. In order to avoid corrosion and guarantee long-lasting durability, high-quality manufacturers such as Qingdao RUIRUI Machinery Co., LTD. use precision stamping, CNC machining, and many finishing techniques including powder coating, plating, and anodizing when producing trailer ball components.

Trailer Ball Weight Capacity and Size Selection

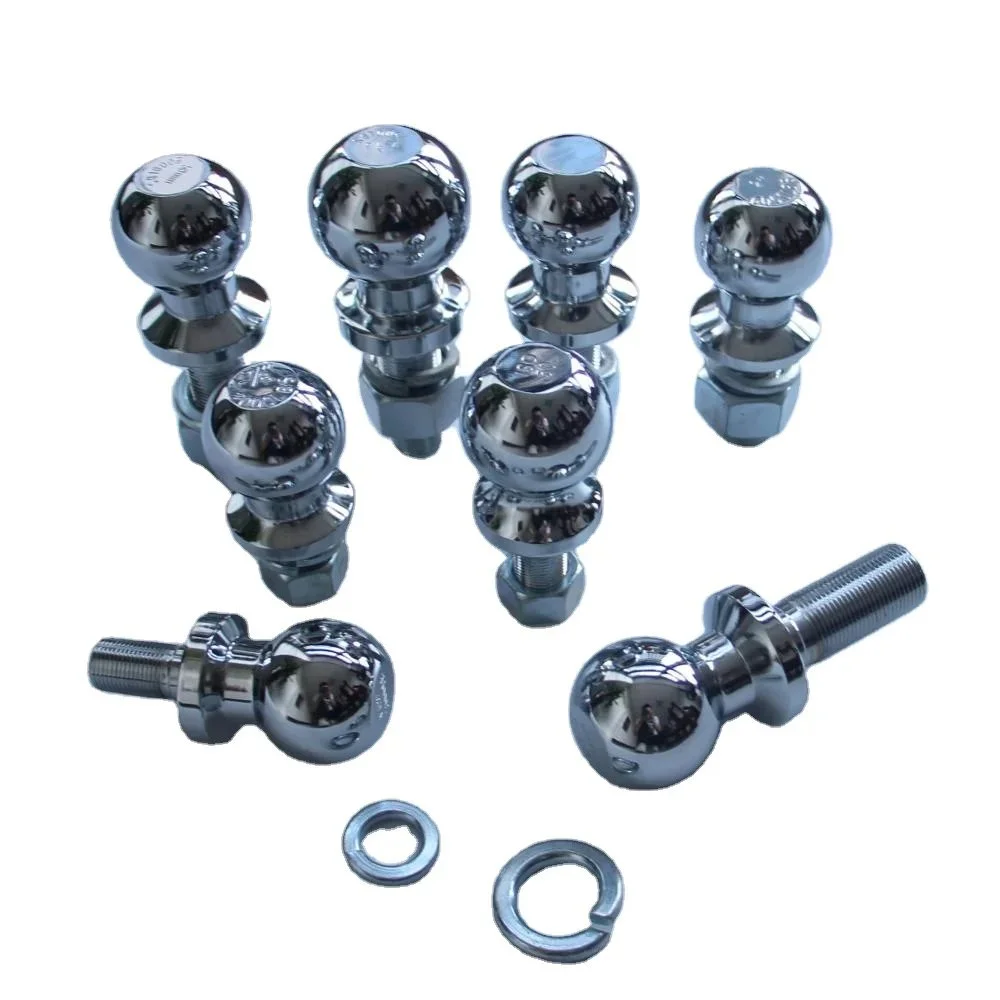

A crucial safety factor that has a direct effect on towing ability is choosing the appropriate trailer ball size. Ball diameter and weight capacity are related in accordance with industry standards that have been established via rigorous technical testing. Compact camping trailers, lightweight boat trailers, and tiny utility trailers may all benefit from a 1-7/8 inch trailer ball, which can support loads of up to 2,000–3,500 pounds. The 2-inch ball is the mainstay of recreational towing, capable of handling medium-duty loads up to 5,000–8,000 pounds, such as enclosed cargo trailers, travel trailers, and mid-size boats. The 2-5/16-inch trailer ball can withstand high loads up to 10,000–15,000 pounds, making it suitable for big RVs, heavy equipment trailers, and large boat trailers. Shank diameter, shank length, and load ratings for gross trailer weight and tongue weight are additional trailer ball characteristics in addition to diameter. To guarantee appropriate load transmission and avoid hazardous loosening during travel, the shank must precisely match the hole diameter of your ball mount. Consistent dimensions and exceptional strength qualities are guaranteed by premium trailer balls produced using heat treatment and precision stamping techniques. In order to ensure that every trailer ball achieves or surpasses specified capabilities before leaving the manufacturing line, manufacturers that adhere to ISO 9001 quality standards, such as those used at Qingdao RUIRUI Machinery facilities, maintain stringent dimensional tolerances and carry out extensive material testing.

Pintle Hitch Design and Heavy-Duty Applications

Pintle hitches have a very unique design concept that is geared at maximizing strength, articulation, and dependability under extreme circumstances. A hook-shaped device connected to the towing vehicle interacts with a lunette ring, which is a circular steel eye, that is fastened to the trailer tongue as part of the pintle hitch system. Compared to similar trailer ball systems, this hook-and-ring arrangement produces a mechanically strong connection that can support far larger loads. The trailer can swivel across many planes of movement in relation to the towing vehicle because to its excellent flexibility, which is made possible by its open design. This feature comes in very handy while driving in agricultural settings, negotiating building sites, or crossing rough terrain where the towing vehicle and trailer often come into contact with varying slopes and angles. Pintle hitch engineering places a strong emphasis on robustness and failsafe functioning in harsh environments. Because these applications need hitches that continue to work even after being exposed to dirt, dust, severe temperatures, and physical handling, the military, construction, industrial, and agricultural industries have depended on pintle hitch technology for decades. Even under extreme stress and vibration, the hook mechanism's robust locking system keeps it from unintentionally disengaging. A correctly closed pintle hitch maintains its connection under the most trying circumstances, in contrast to trailer ball couplers that may bounce off if not fastened correctly or exposed to extraordinary pressures. Pintle hitches are guaranteed to provide dependable performance throughout long service lifetimes because to sophisticated production processes including progressive stamping, precise welding, and thorough surface treatments.

Pintle Hitch Articulation for Off-Road Performance

Pintle hitches are the best option for off-road towing situations due to their exceptional articulation capabilities. The capacity of the hitch to concurrently accept angular movement between the towing vehicle and trailer in many directions is known as articulation. The pintle hitch's wide clearances enable extreme angles without binding or producing hazardous stress concentrations, for as when a vehicle climbs a hill while the trailer stays in a valley or while negotiating steep cross-slopes. This adaptability prevents the trailer from pulling the car laterally on off-camber terrain or elevating the towing vehicle's rear wheels on steep ascents. In order to accommodate both horizontal yaw movements and vertical pitch variations that would beyond the design limitations of trailer ball systems, the lunette ring moves freely inside the pintle hook. Professional operators in the forestry, construction, and agricultural sectors understand that pintle hitch articulation has a direct impact on productivity and operational safety. Rocks, ruts, uneven terrain, and abrupt elevation changes are some of the challenges that equipment trailers traveling through construction sites must overcome to avoid straining or damaging less flexible hitch systems. Instead of transferring damaging stresses to the trailer tongue or vehicle structure, the pintle hitch uses its intrinsic mechanical design to absorb these difficult situations. Heavy-duty component manufacturers like Qingdao RUIRUI Machinery Co., LTD. design pintle hitches with high-strength steel alloys that have undergone sophisticated heat treatment cycles to provide the ideal balance of strength, toughness, and wear resistance required for long-term off-road use.

Comparing Noise, Maintenance, and Operational Characteristics

User choice is influenced by the operational differences between trailer ball and pintle hitch systems, which provide unique benefits and difficulties. Because of the tight-fitting ball-and-socket connection, which reduces metal-to-metal movement and rattling, trailer ball hitches run quietly throughout regular road travel. On lengthy highway trips, its silent operation lessens driver fatigue and enhances passenger comfort. However, because of the tight tolerances, any corrosion or damage to the ball surface may compromise coupling security and smooth operation, and trailer balls need to be well lubricated to avoid squeaking and early wear. Continued safe operation is ensured by routine inspection and maintenance, which includes cleaning, lubricating, and replacing worn components. Because of the deliberate gaps between the hook and lunette ring that allow for their remarkable articulation, pintle hitches naturally produce greater noise while in use. The components may move during braking, acceleration, and imperfections in the road due to the "slop" in the connection, which results in distinctive clanging noises. Although this noise first worries some operators, seasoned users see it as a sign of regular operating rather than a sign of trouble. Because pintle hitches withstand dirt, corrosion, and wear far better than precision-fitted trailer ball systems, there is a considerable reduction in maintenance needs in exchange for the increased noise. Even in situations when a trailer ball connection would become hazardous or unusable, a properly oiled pintle hitch continues to operate dependably.

Weight Capacity Differences: Trailer Ball vs Pintle Hitch

When deciding between pintle hitch and trailer ball systems, understanding weight capacity constraints may be the most important consideration. For Class III applications, standard trailer ball hitches usually have a maximum gross trailer weight of 8,000–10,000 pounds and a maximum tongue weight of 1,000–1,200 pounds. For the majority of recreational towing applications, such as weekend enthusiasts' enclosed cargo trailers, boat trailers, and travel trailers, these ratings are sufficient. However, commercial operations that transport industrial products, agricultural gear, or construction equipment soon surpass these limitations, requiring more reliable towing methods. Despite having theoretically larger limits, even the biggest 2-5/16 inch trailer balls have practical restrictions of around 15,000 pounds because the ball shank and mounting mechanism may collapse under severe pressures. With heavy-duty variants certified for 20,000–60,000 pounds or more depending on individual design and mounting position, pintle hitches significantly increase the potential towing capability. The basic mechanical benefit of the pintle hitch—the hook design utilizes the whole diameter of the ring to transmit forces into the trailer tongue and distributes loads over greater surface areas—is what causes this huge capacity improvement. To ensure they meet or surpass stated ratings, professional-grade pintle hitches produced by seasoned businesses like Qingdao RUIRUI Machinery Co., LTD. go through extensive testing, such as fatigue cycle analysis, dynamic shock testing, and static load verification. These vital components are guaranteed to function dependably under maximum rated loads thanks to a combination of sophisticated material selection, precise production techniques, and thorough quality control.

Installation, Compatibility, and Connection Procedures

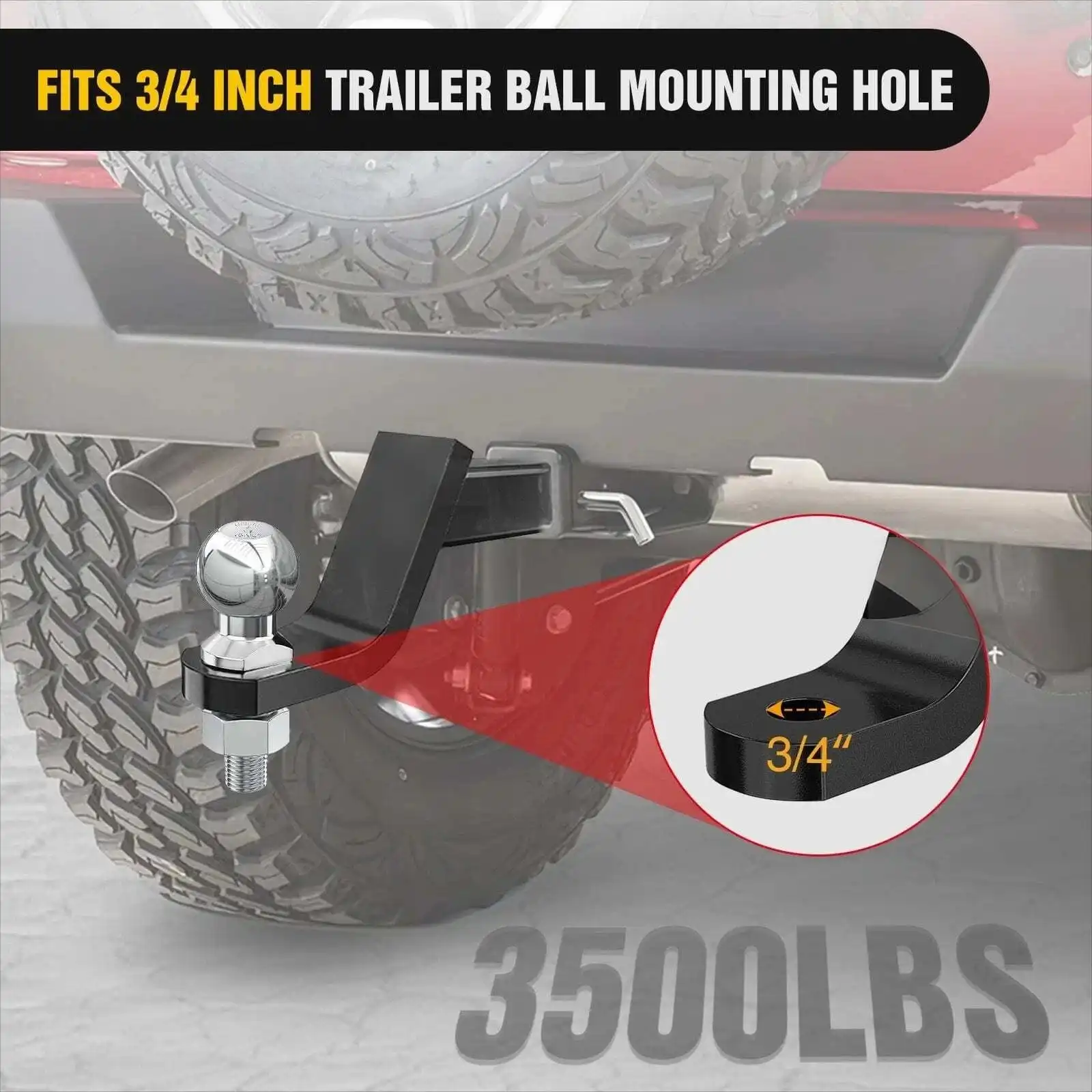

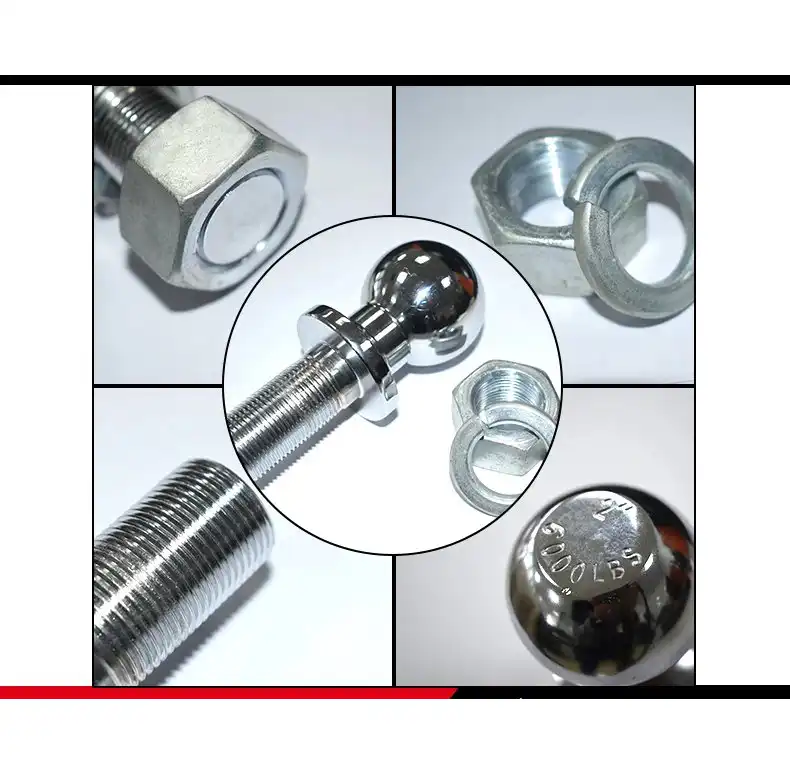

Trailer ball and pintle hitch systems have quite different installation and connection requirements, which have an impact on both initial setup and day-to-day operating ease. Installing a trailer ball usually entails choosing a ball mount that matches the hitch receiver on your car and fastening the trailer ball to the mount using a threaded shank and lock washer. Using simple hand tools, the operation takes just a few minutes, and all it takes to swap between different ball sizes for different trailers is to loosen one ball and install another. Backing up to attach a trailer ball, however, requires rather exact alignment; in order for the coupler to lock, it must position itself exactly above the ball. Working alone or in small areas with little space for movement makes this alignment problem worse. Installing a pintle hook requires attaching it to the vehicle's frame or bumper structure, or to a receiver hitch. The connecting process itself is quite forgiving, even if the first installation could be more complicated, especially for permanent mounting setups. Compared to carefully matching a trailer ball coupler, the pintle hook's broad target area makes connecting much simpler. By simply elevating the lunette ring over the hook and closing the latch, operators may effectively attach pintles even if alignment is wrong by several inches in either direction. This convenience of connection is particularly helpful in difficult situations, such as in low light, in cramped quarters, or while working alone. Pintle hitches are perfect for high-frequency coupling and uncoupling operations, which are often used in commercial applications, due to their sturdy design and simple operation.

Combination Pintle-Ball Hitches: Versatility Solution

Combination pintle-ball hitches combine the two connection types into one device, giving operators the most options possible. Directly underneath the hook mechanism of these multipurpose hitches is a regular pintle hook with a threaded ball mounting location. With this design, users may engage the hook to pull trailers with pintles and then thread a suitable trailer ball into the mounting location to convert to trailers with balls. Contractors, farmers, and equipment rental companies who often deal with a variety of trailer types find the convenience element appealing. Operators only utilize the connection type that corresponds with their present trailer, eliminating the need to keep different hitches and switch them between jobs. However, compared to specialized single-purpose hitches, combined units come with certain drawbacks. The biggest issue is weight capacity; since the trailer ball position has a longer lever arm distance from the mounting point than the pintle hook, it usually has lower ratings. For all connection methods, operators need to make sure that combination hitch ratings are higher than their maximum expected loads. Good manufacturers provide well-informed decision-making by explicitly defining distinct capacity ratings for ball and pintle combinations. In order to accommodate trailers with varying coupler heights without the need for shim blocks or separate ball mounts, advanced combination designs integrate adjustable height systems, further boosting adaptability. Customers benefit from precise engineering that maximizes strength while preserving complete functioning for both connection techniques when purchasing combo hitches from reliable manufacturers like Qingdao RUIRUI Machinery Co., LTD.

Making the Right Choice for Your Towing Application

You must carefully consider your unique towing needs, operating environment, and use patterns before deciding between trailer ball and pintle hitch systems. Trailer ball hitches provide the best performance for recreational users who mostly pull travel trailers, boat trailers, or utility trailers on maintained roads and highways. Adequate weight capabilities securely manage common recreational loads, and the quiet, smooth operation improves passenger comfort. For weekend enthusiasts and occasional towers, this approach is appealing because to its easy installation, cheaper startup expenses, and the broad availability of trailer ball equipment. Even with little usage, premium trailer balls made with precise stamping and cutting-edge surface treatments provide dependable performance and a longer service life. Pintle hitch systems should be carefully considered by commercial operators, contractors, farmers, and anybody who often tows large loads across uneven terrain. The somewhat greater initial investment and increased operating noise are justified by the improved weight capacity, outstanding articulation, lower maintenance needs, and simpler connecting procedures. The pintle hitch's capacity to handle severe angles without binding or producing hazardous stress concentrations is especially advantageous for off-road applications. Choosing pintle hitches for demanding applications from reputable manufacturers with extensive quality control systems guarantees that you will obtain parts that have been designed and tested to function dependably under the highest rated circumstances. Purchasing the right equipment lowers downtime, avoids expensive malfunctions, and—above all—preserves worker safety during crucial towing operations.

Conclusion

The debate between trailer ball and pintle hitch systems doesn't have a universal winner—each excels in its intended application. Trailer balls deliver smooth, quiet towing for recreational and light commercial use, while pintle hitches provide unmatched capacity and durability for heavy-duty industrial applications.

Cooperate With Qingdao RUIRUI Machinary Co., LTD.

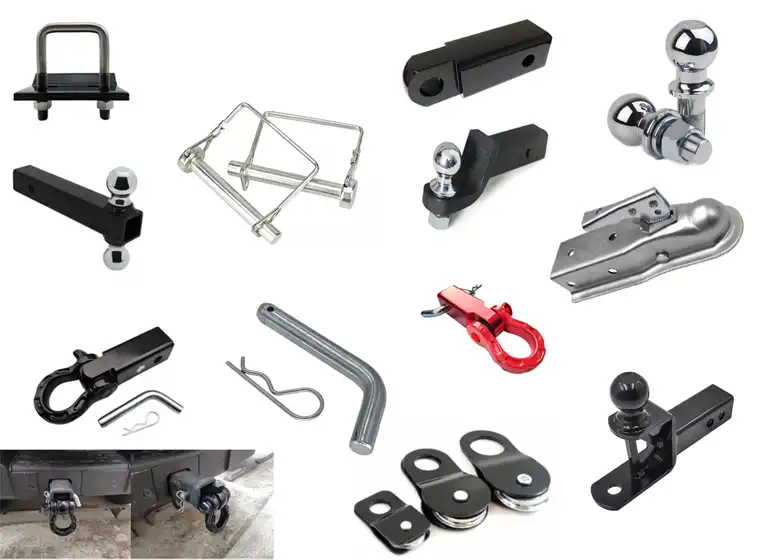

Qingdao RUIRUI Machinery Co., LTD. provides outstanding quality via sophisticated production capabilities when you require a dependable China trailer ball factory, China trailer ball supplier, and China trailer ball manufacturer. Using progressive stamping, CNC machining, and extensive finishing procedures, we specialize in manufacturing premium trailer ball components, trailer pins, trailer arms, winches, and fasteners. We were founded in Qingdao, Shandong, China, in 2016. With eight manufacturing lines and an annual capacity of 130,000 pieces, our ISO 9001, ISO 14001, and OHSAS 18001 certified facilities guarantee a steady supply for wholesale orders for China trailer balls.
