Trailer D Pin Explained: Everything You Need to Know

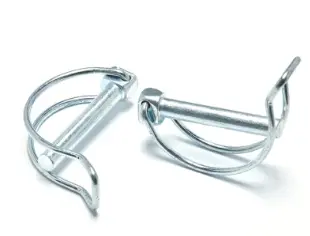

When it comes to securing trailer hitches and ensuring safe towing operations, the Trailer D pin stands as one of the most critical yet often overlooked components in the entire towing system. A Trailer D pin is a specialized fastening device designed with a distinctive D-shaped handle that provides superior grip and ease of operation while maintaining exceptional strength and reliability. These robust safety pins serve as the primary securing mechanism between trailer hitches and vehicles, preventing accidental disconnection during transport. Understanding the proper selection, installation, and maintenance of trailer pins can mean the difference between a successful haul and a potentially dangerous roadway incident, making this knowledge essential for anyone involved in towing operations.

Understanding Trailer D Pin Construction and Design

Material Composition and Manufacturing Standards

The construction of a high-quality Trailer D pin begins with careful material selection, typically utilizing premium-grade galvanized steel that offers exceptional tensile strength and corrosion resistance. Modern manufacturing processes employ advanced metallurgical techniques to ensure each trailer pin meets stringent industry standards for load-bearing capacity and durability. The galvanization process creates a protective zinc coating that prevents rust formation even in harsh environmental conditions, extending the operational lifespan significantly beyond standard steel alternatives. Quality manufacturers like RUIRUI Machinery implement comprehensive quality control measures throughout the production process, ensuring each Trailer D pin undergoes rigorous testing for dimensional accuracy, material integrity, and performance consistency. The manufacturing process typically involves precision forging or machining to achieve exact tolerances, followed by heat treatment to optimize the steel's mechanical properties. Surface finishing procedures include thorough cleaning, galvanizing, and final inspection to guarantee that every trailer pin meets or exceeds industry specifications for safety and reliability.

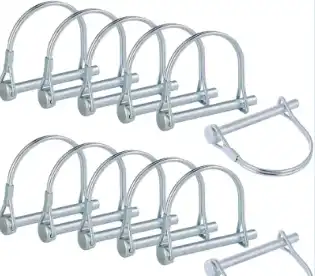

Distinctive D-Handle Design Features

The characteristic D-shaped handle represents a significant advancement in trailer pin ergonomics and functionality, providing users with enhanced grip security and operational convenience during installation and removal procedures. This distinctive design feature allows for better hand positioning and increased leverage application, reducing the physical effort required for proper installation while minimizing the risk of slippage during handling. The D-handle configuration also facilitates easier identification and location of the pin during routine maintenance checks or emergency situations where quick access is essential. Engineering analysis demonstrates that the D-shape distributes stress more evenly across the handle structure compared to traditional round or square designs, reducing fatigue points and potential failure modes. The handle dimensions are carefully optimized to accommodate various hand sizes while maintaining sufficient clearance for operation in confined spaces typically encountered around trailer hitches. Additionally, the D-handle design incorporates safety considerations by providing multiple grip orientations and reducing the likelihood of accidental release during normal towing operations.

Load Distribution and Stress Analysis

Proper engineering of Trailer D pin components requires comprehensive understanding of load distribution patterns and stress concentration points that occur during normal towing operations. The pin shaft must withstand significant shear forces transmitted from the trailer tongue weight and dynamic loading conditions encountered during acceleration, braking, and cornering maneuvers. Advanced finite element analysis techniques are employed during the design phase to identify potential stress risers and optimize the pin geometry for maximum strength-to-weight ratio. The transition area between the D-handle and pin shaft represents a critical design consideration, requiring careful attention to fillet radii and material thickness to prevent stress concentration that could lead to premature failure. Quality manufacturers conduct extensive testing protocols that simulate real-world loading conditions, including cyclic fatigue testing to evaluate long-term durability under repeated loading cycles. The pin's load-carrying capacity must account for both static loads from trailer weight and dynamic loads generated by road irregularities, wind forces, and operational maneuvers, ensuring adequate safety margins for all anticipated operating conditions.

Installation Procedures and Best Practices

Pre-Installation Safety Checks

Before attempting any Trailer D pin installation, conducting thorough pre-installation safety checks is essential to ensure both personal safety and equipment integrity throughout the process. Begin by inspecting the trailer hitch receiver for signs of wear, damage, or foreign debris that could interfere with proper pin insertion or compromise the connection security. Verify that the hitch ball mount or other accessories are properly aligned within the receiver tube, checking for correct insertion depth and ensuring that the pin holes are properly aligned for smooth installation. Examine the Trailer D pin itself for any visible damage, including cracks, excessive wear, or deformation that could affect its performance or reliability. Check that the pin diameter matches the receiver tube specifications, as using an undersized pin can result in excessive play and potential failure, while an oversized pin may damage the receiver or prevent proper installation. Ensure that the work area is clear of obstructions and that adequate lighting is available for safe operation, particularly important when working in confined spaces or adverse weather conditions. Personal protective equipment, including safety glasses and work gloves, should be worn during installation procedures to prevent injury from metal fragments or sharp edges.

Step-by-Step Installation Process

The proper installation of a Trailer D pin requires systematic attention to detail and adherence to established procedures to ensure secure attachment and operational safety. Begin by positioning the ball mount or hitch accessory fully within the receiver tube, ensuring that the mounting holes are perfectly aligned before attempting pin insertion. Insert the Trailer D pin from the appropriate side, typically from the driver's side of the vehicle for easier access, pushing it smoothly through the first receiver wall, through the ball mount shank, and out through the opposite receiver wall. The pin should slide through easily without excessive force, and any resistance may indicate misalignment or obstruction that must be corrected before proceeding. Once the pin is fully inserted, attach the appropriate safety clip or retention device to prevent accidental withdrawal during operation. Double-check that the pin extends beyond both receiver walls and that the safety clip is properly seated and secure. Test the connection by attempting to lift or move the ball mount slightly, ensuring that no movement occurs between components. The D-handle should be positioned in a location that provides easy access for removal while preventing interference with other vehicle components or trailer equipment.

Common Installation Mistakes and Prevention

Understanding and avoiding common installation mistakes can prevent serious accidents and equipment damage while extending the service life of both the Trailer D pin and associated hitch components. One of the most frequent errors involves failing to properly align the pin holes before attempting insertion, which can result in damage to the pin, receiver, or ball mount threads and create unsafe operating conditions. Another common mistake is using the wrong pin diameter for the specific receiver tube size, leading to either excessive play that allows dangerous movement or binding that prevents proper installation. Neglecting to install the safety clip or using an inappropriate retention device compromises the primary safety mechanism and significantly increases the risk of accidental pin withdrawal during transport. Forcing a pin through misaligned holes can cause deformation or cracking that may not be immediately visible but can lead to sudden failure under load. Environmental factors such as dirt, ice, or corrosion buildup in the receiver tube can prevent proper pin insertion and should be addressed through thorough cleaning before installation attempts. Regular inspection and maintenance of both the pin and receiver components can identify potential problems before they result in installation difficulties or operational failures, ensuring consistent performance and safety.

Applications Across Industries and Sectors

Heavy-Duty Commercial Transportation

In the commercial transportation sector, Trailer D pins serve critical roles in securing heavy-duty trailers and specialized equipment where failure consequences extend beyond mere inconvenience to include significant economic losses and safety hazards. Long-haul trucking operations depend on reliable trailer pin performance for securing semi-trailers carrying substantial cargo loads across extensive distances and challenging road conditions. Construction industry applications involve securing heavy equipment trailers, concrete mixers, and material handling equipment where the combination of high loads and harsh operating environments demands superior pin performance and durability. Agricultural operations utilize trailer pins for securing implements, grain trailers, and livestock transporters, where seasonal loading patterns and outdoor storage conditions require pins with exceptional corrosion resistance and long-term reliability. Commercial towing services rely on heavy-duty trailer pins for securing disabled vehicles and equipment, often under emergency conditions where quick, reliable installation is essential for safe operation. Fleet maintenance programs typically specify high-quality Trailer D pins like those manufactured by RUIRUI Machinery to minimize downtime and ensure consistent performance across diverse operating conditions and applications.

Recreational Vehicle and Marine Industries

The recreational vehicle industry presents unique challenges for Trailer D trailer pin applications, combining the need for reliable performance with user-friendly operation for consumers who may have limited mechanical experience. Travel trailers, boat trailers, and toy haulers require pins that provide secure attachment while remaining easy enough for typical RV owners to operate safely and confidently. Marine applications involve additional considerations including exposure to saltwater environments, boat launch submersion cycles, and the need for rapid deployment in varying weather conditions at boat ramps. ATV and motorcycle trailer applications demand compact, lightweight pins that maintain full strength capabilities while fitting within the spatial constraints of smaller trailer designs. Camping and outdoor recreation equipment trailers benefit from pins that combine weather resistance with ease of operation, often in remote locations where replacement parts may not be readily available. The recreational market also values aesthetic considerations alongside functional performance, driving demand for pins with attractive finishes and designs that complement modern trailer styling trends.

Specialized Industrial Manufacturing Applications

Manufacturing industries utilize Trailer D pins in diverse applications ranging from assembly line material handling to heavy equipment positioning systems where precision and reliability are paramount. Automotive manufacturing facilities employ trailer pins for securing parts delivery trailers and specialized transport equipment within production environments where operational interruptions can impact entire assembly lines. Aerospace manufacturing operations require pins that meet stringent quality standards and material certifications for securing specialized tooling and equipment trailers used in aircraft assembly processes. Steel and metal fabrication industries utilize heavy-duty trailer pins for securing raw material transporters and finished product delivery systems where extreme loads and harsh environmental conditions are common. Chemical and pharmaceutical manufacturing sectors specify trailer pins with special coatings or materials to resist chemical exposure while maintaining full load-bearing capabilities. Industrial equipment manufacturers often integrate trailer pins into their product designs, requiring partnership with specialized manufacturers like RUIRUI Machinery who can provide custom solutions and engineering support for unique application requirements.

Conclusion

The Trailer D pin represents a critical component in modern towing systems, combining robust engineering with user-friendly design to ensure safe and reliable trailer connections across diverse applications. From heavy-duty commercial operations to recreational vehicle use, these specialized fasteners provide the essential security needed to prevent dangerous disconnections while offering the convenience required for routine operation. Quality manufacturing standards, proper installation procedures, and regular maintenance practices form the foundation of effective trailer pin performance, highlighting the importance of selecting products from established manufacturers with proven track records.

For professionals and consumers seeking reliable Trailer D pin solutions, Qingdao RUIRUI Machinery Co., LTD stands ready to provide high-quality products backed by comprehensive manufacturing expertise and customer support. As a leading China Trailer D pin factory and China Trailer D pin supplier, RUIRUI combines advanced manufacturing capabilities with competitive pricing to deliver exceptional value. Whether you need standard sizes or custom specifications, our position as a trusted China Trailer D pin manufacturer ensures access to quality products with Trailer D pin for sale options that meet diverse requirements. Contact our experienced team today to discuss your specific needs and discover why customers worldwide choose RUIRUI as their preferred China Trailer D pin wholesale partner. Our High Quality Trailer D pin products offer competitive Trailer D pin price points while maintaining the superior performance standards your applications demand. Reach out to us at info@qdkshd.com to begin your journey toward safer, more reliable towing operations.
