Trailer Safety Chains: Your Ultimate 5-Step Guide for Proper Installation & Usage

Imagine this terrifying situation: You're traveling at sixty miles per hour on the highway when all of a sudden your trailer hitch breaks, sending thousands of pounds of merchandise hurtling over several lanes of traffic. With correctly placed trailer safety chains, you may entirely avoid this horrific scenario, which occurs more often than you would imagine. Understanding the vital function of trailer safety chains might save lives and avoid catastrophic tragedies that happen when main hitch connections break suddenly, whether you're a contractor moving equipment or a weekend warrior pulling your boat.

Understanding Trailer Safety Chain Requirements and Legal Standards

When main hitch connections fail, trailer safety chains are the vital backup mechanism that keeps the trailer from completely separating. In the majority of nations, these chains are legally required safety equipment rather than just accessories. The breaking strength of trailer safety chains must be equal to or greater than the gross trailer weight. For example, each safety chain must have a break strength more than 7,000 pounds if you're hauling a trailer with a 7,000-pound capacity. This means that two chains would have a total capacity of 14,000 pounds. Although local laws pertaining to trailer safety chains differ, most of them mandate that the chains be able to support the whole weight of the loaded trailer. Commercial trailers must have safety chains with a working load restriction sufficient for the trailer's gross vehicle weight rating, according to Federal Motor Carrier Safety Administration regulations. These regulations are in place because trailer safety chains are the final line of defense against catastrophic separation occurrences that may cause deaths, major injuries, and extensive property damage.

Material Standards for Trailer Safety Chains

High-strength steel alloys, such as Grade 70 transport chain, which provides better strength-to-weight ratios than normal chain materials, are used to make professional-grade trailer safety chains. To stop corrosion and guarantee long-term dependability, the production process includes galvanizing and heat treatment. High-quality producers, such as those that make trailer industry components, use materials including coated steel, mild steel, and specialty alloy compositions that are rigorously tested to meet or beyond industry requirements. Deep drawing and progressive stamping are examples of advanced production methods that provide uniform chain link geometry and ideal stress distribution. These production techniques, along with secondary procedures like plating, electrophoresis, and powder coating, guarantee that trailer safety chains retain their structural integrity in harsh environments while fending off environmental deterioration that might eventually impair safety performance.

Step-by-Step Installation Process for Maximum Safety

In order to guarantee maximum performance in emergency circumstances, the installation of trailer safety chains requires close attention to detail and adherence to particular protocols. Choosing suitable connection locations on the trailer and towing vehicle is the first step in the installation procedure. Because coupler failures might make chains tied to the coupler useless, safety chains should always be fastened to the trailer frame rather than the coupler. Finding the right attachment locations on your trailer is the first crucial step. Usually designed to withstand the stress loads that safety chains would experience in an emergency, these locations are strengthened sections of the trailer structure. A lot of trailers include clevis hooks or safety chain loops that provide the best attachment geometry. In order to provide optimum holding strength, correct installation necessitates drilling mounting holes in the trailer tongue and fastening chains with Grade 8 bolts and Nylock nuts

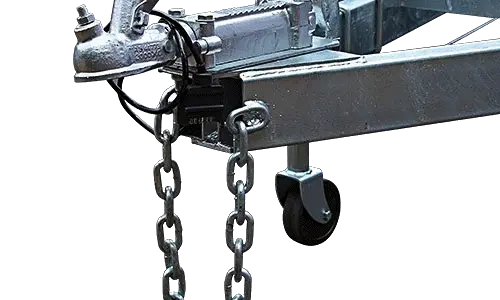

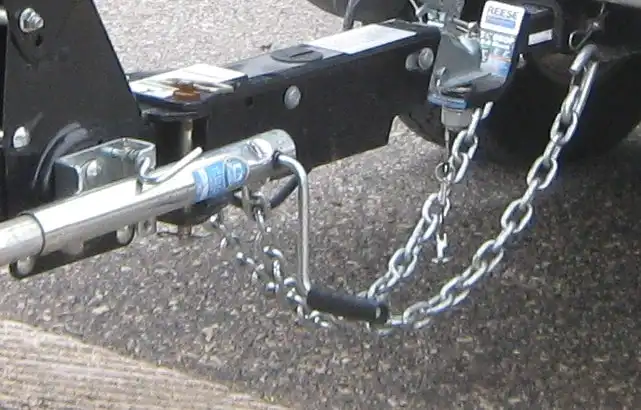

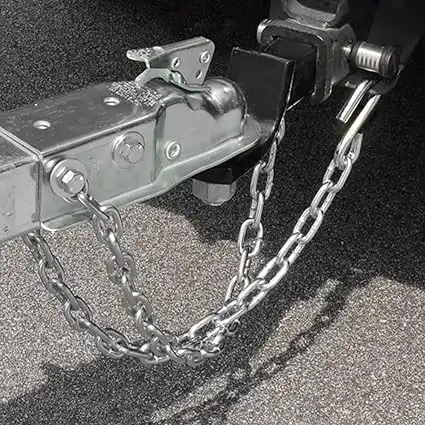

Chain Positioning and Crossing Technique

Technique for Chain Positioning and CrossingOne of the most crucial elements of installing a trailer safety chain is the crossing procedure. Underneath the trailer coupler, chains should be crossed to create a multipurpose X-pattern. In the event that the main hitch connection fails, this crossing arrangement produces a safety cradle that can grab and sustain the trailer tongue. The crossed chains keep the tongue from falling to the ground and dragging, which might lead to a jackknife or other dangerous circumstances. A properly adjusted chain length guarantees that the chains are both short enough to avoid ground contact during regular operation and long enough to provide maximum turning angles without binding. The chains shouldn't have too much slack that would enable the trailer tongue to drop much in the event of a hitch failure, but they should have enough slack to handle the whole range of vehicle and trailer movement, including backing maneuvers and abrupt bends.

Chain Length and Attachment Point Optimization

A number of criteria, such as turning radius requirements, ground clearance requirements, and emergency reaction characteristics, must be carefully considered when determining the proper chain length. Too-short safety chains may harm the chain, attachment points, or other parts of the vehicle when they bind during rapid bends. On the other hand, excessively lengthy chains may drag on the ground during regular use, leading to early wear and perhaps endangering other cars on the road. When the chains are under stress, the ideal chain length permits the trailer to reach its maximum intended turning angle while preserving a minimum of two inches of ground clearance. This clearance guarantees that the chains can adequately support the trailer tongue in the case of a main hitch failure while preventing chain damage from road contact. When using professional installation procedures, the trailer is positioned at its maximum turning angle and the distance between the vehicle connection point and the trailer attachment point is measured.

Professional Grade Attachment Hardware

An essential part of successful trailer safety chain systems is high-quality attachment hardware. Grade 8 bolts, which provide better tensile strength than typical hardware store bolts, are used in professional installations. For the best strength properties, these bolts should have the greatest material cross-section and be sized to meet the chain link apertures. Nylock nuts and other locking gear guarantee the attachment system's long-term dependability by preventing loosening brought on by road vibration. To distribute loads equally and avoid localized stress concentrations that might cause attachment point failure, flat washers should be used on both sides of the attachment point throughout the installation procedure. Thread-locking compounds enable for future maintenance and adjustments as required while offering further protection against hardware loosening.

Maintenance and Inspection Best Practices

In order to remain dependable and work at their best in emergency circumstances, trailer safety chains need to be maintained and inspected often. Before every towing session, a visual check should take place, which should involve looking for wear, distortion, or damage on the chain links. The attachment sites, where stress concentrations are largest and wear usually happens first, should get special care. Chain maintenance include regular cleaning to get rid of dirt, debris, and road salt that may hasten wear and corrosion. Lubricating moving components, such as chain links and connection hardware, lowers friction and stops early wear that might weaken the chain. Expert-grade lubricants designed for heavy-duty or marine applications provide better defense against environmental factors that trailer safety chains come into contact with on a daily basis.

Replacement Criteria and Timing

It is possible to avoid using compromised safety chains that might break in an emergency by establishing unambiguous replacement criteria. If a single link exhibits persistent deformation, cracking, or material loss as a result of wear or corrosion, the chain should be replaced. In a similar vein, replacement is required to preserve appropriate geometry and load distribution characteristics if the total chain length has risen as a result of link stretching. It is important to check attachment hardware for indications of corrosion, bolt strain, or thread damage that might compromise holding strength. The frequency of usage, the state of the environment, and the importance of the towing application should all be taken into account when creating the replacement schedule. Compared to infrequent users working in benign environmental circumstances, commercial enterprises and regular recreational users should adopt more aggressive replacement schedules.

Common Installation Mistakes and How to Avoid Them

Common errors in trailer safety chain installations severely reduce their efficacy in emergency scenarios. Attaching chains to mounting locations that aren't strong enough to support emergency loads is one of the most common mistakes. When the chains are really required, attachment to sheet metal components, ornamental parts, or non-structural trailer components may cause the system to fail completely. Inadequate chain routing, which allows the chains to come into touch with moving elements or sharp edges during regular operation, is another crucial error. Before emergency events materialize, this contact may lead to early wear and chain failure. In order to guarantee that chains stay free of possible contact areas over the entire range of vehicle and trailer movement, proper routing requires careful consideration of suspension movement, steering geometry, and trailer articulation.

Load Distribution and Stress Management

Comprehending the features of load distribution aids in avoiding installation layouts that result in unequal loading circumstances or stress concentrations. In addition to avoiding abrupt bends or kinks that might cause stress risers, chains should be routed to uniformly transfer emergency loads across connection points. The dynamic nature of emergency circumstances, when abrupt loads and shock forces may surpass static weight estimations, should be taken into consideration in the installation. Expert installations take into account the chains' and attachment hardware's metallurgical features to guarantee compatibility and the best possible performance. Inadequate hardware requirements or mismatched materials might lead to weak areas in the system that reduce the overall efficacy of the safety chain at crucial times.

Conclusion

A crucial safety duty that protects people and property during towing operations is the appropriate installation and maintenance of trailer safety chains. This guide's five-step method guarantees that your trailer safety chains provide dependable backup protection in the event that main hitch systems malfunction, averting catastrophic separation occurrences that might cause major mishaps and casualties.

Cooperate with Qingdao RUIRUI Machinary Co., LTD.

As a leading China trailer safety chains manufacturer and China trailer safety chains supplier established in 2016, Qingdao RUIRUI Machinery Co., LTD. specializes in producing high-quality trailer safety chains and comprehensive trailer accessories. Our expertise extends beyond basic manufacturing to include advanced metal fabrication services such as CNC machining, laser cutting, progressive stamping, and specialized finishing processes including powder coating, plating, and electrophoresis.

With over 15 years of management experience and a fully automated robot production line, our facility features eight production lines capable of producing 130,000 pieces annually. Our manufacturing capabilities encompass various materials including mild steel, coated steel, aluminum alloys, cold rolled steel, stainless steel, copper, and brass. As a certified China trailer safety chains factory, we maintain ISO 9001, ISO 14001, and OHSAS 18001 certifications, ensuring that every High Quality trailer safety chains meets international standards.

Whether you need standard trailer safety chains for sale or custom specifications, our China trailer safety chains wholesale solutions provide competitive trailer safety chains price options without compromising quality. Our experienced R&D team offers OEM support and professional packaging for secure transportation to over 80 countries worldwide. For immediate assistance with your trailer safety chains requirements, contact us at info@qdkshd.com. Don't forget to bookmark this guide for future reference when working with trailer safety systems!

FAQ

Q: What is the minimum breaking strength required for trailer safety chains?

A: The breaking strength must equal or exceed the gross trailer weight. For a 7,000 lb trailer, each chain needs 7,000+ lbs breaking strength.

Q: Should safety chains be crossed under the trailer coupler?

A: Yes, safety chains should always be crossed underneath the coupler in an X-pattern to create a safety cradle that catches the tongue if the hitch fails.

Q: Where should safety chains be attached on the trailer?

A: Safety chains should be attached to the trailer frame at designated reinforced points, never to the coupler itself, as coupler failure would render chains ineffective.

Q: How often should trailer safety chains be inspected?

A: Safety chains should be visually inspected before each use and receive detailed maintenance checks regularly, with immediate replacement if any links show deformation or damage.

References

1. "Federal Motor Carrier Safety Administration Regulations for Commercial Vehicle Safety Systems" - Department of Transportation

2. "Trailer Safety Chain Installation and Maintenance Guidelines" - Society of Automotive Engineers

3. "Load Distribution Analysis for Emergency Trailer Restraint Systems" - American Society of Mechanical Engineers

4. "Materials Engineering Standards for Heavy-Duty Chain Applications" - American Society for Testing and Materials
