Understanding Trailer Hitch Pin Functions and Types

It is important to understand the trailer hitch pin when choosing towing equipment for industrial fleets, building sites, or business delivery networks. This special mechanical fastener is what holds ball mounts, cargo carriers, and extra shanks in place in the receiver tubes of vehicle pulling systems. Instead of just acting as a pin, these parts can handle strong lateral shear forces and longitudinal stress while in transit. This keeps them from accidentally decoupling during emergency stopping or transporting big loads. When purchasing things for fleet operations, purchasing managers should know that receiver hitch pins are important safety infrastructure and not just common hardware. The material requirements, locking mechanisms, and size limits have a direct effect on operating safety compliance.

What is a Trailer Hitch Pin and How Does it Work

Core Function of Receiver Hitch Pins

This is how a trailer hitch pin works: it locks the ball mount or accessory shank tightly inside the receiver tube of the tow car. The pin goes through holes that are lined up in both the receiver walls and the inserted shank. This makes a mechanical link that can withstand the forces that are created when pulling. Unlike most bolts, these pins are made according to SAE J684 safety standards, which require specific shear strengths to keep them from breaking in terrible ways when they're loaded.

Construction and Materials

Most industrial-grade hitch pins, including the trailer hitch pin, are made from sharpened steel that has been heated and cooled. This gives them better tensile strength for heavy-duty business uses. Stainless steel versions are better at resisting rust, which is especially helpful in naval settings or situations where they will be exposed to saltwater, where oxidation can cause pin seizure. A spring-loaded clip or an integrated locking cylinder is usually built into the pin to keep it in place so it doesn't move around while it's being moved.

Step-by-Step Operational Use

To install something correctly, you must first line up the receiver tube and extension shank so that their fastening holes line up perfectly. Put the pin through one side of the receiver, all the way through the shank, and out the other side of the receiver wall. Use the clip or lock device that comes with the pin to keep it in place. When taking the ball mount or load carrier off, always hold it up with one hand while you pull out the pin. This will keep you from falling and hurting yourself. Regularly checking the pin surface for deformation, cracks, or too much wear and tear increases the life of the tools and makes sure that all fleet activities follow safety rules.

Types of Trailer Hitch Pins and Their Applications

Standard Clip Pins for General Industrial Use

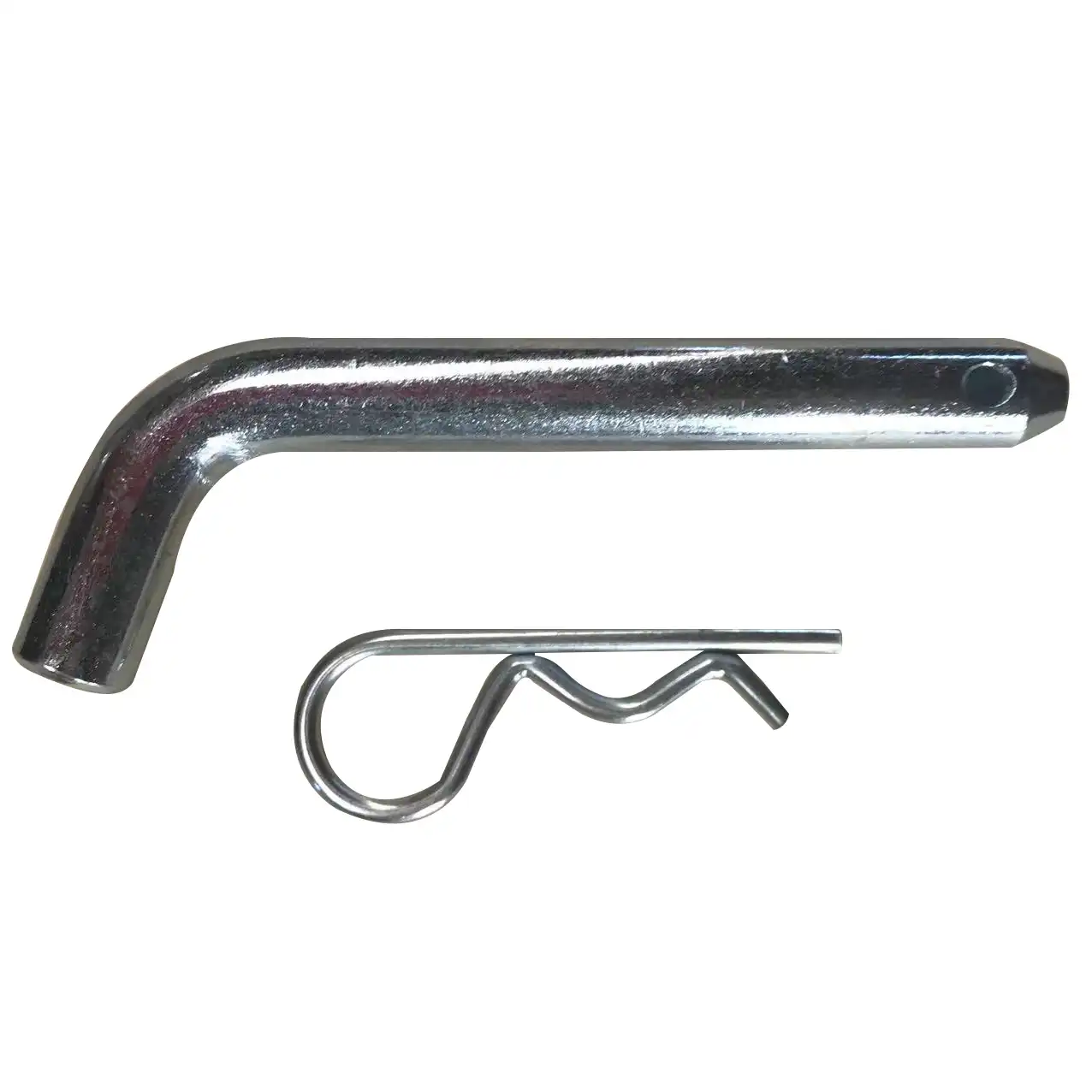

Clip-style pins have a simple spring wire attachment system that runs through a hole at the end of the pin. These units work well for regular pulling jobs where the risk of theft is low and the units are often hooked up and disconnected. Because they are clip-on, they can be put together quickly and easily without any tools. This makes them useful for gardening crews or building sites where saving time has a direct effect on productivity.

Locking Pins for High-Security Applications

Locking receiver pins have keyed cylinder systems that keep expensive ball mounts or cargo items from being taken off without permission. To keep assets from being stolen, more and more industrial parks that store high-value equipment and distribution centres that handle container-level packages ask for locking options. Regularly applying graphite-based products to the internal locking mechanism is needed to stop rust caused by moisture that could make the key useless.

Material Comparisons for Durability

Galvanised steel pins, such as trailer hitch pin options, are a cheap way to keep outdoor storage yards and city building projects from rusting. Stainless steel choices cost more at first, but they don't need as much upkeep because they don't rust in marine settings or chemical processing plants. For Class V hitches pulling excavators or industrial machines, where dynamic loading is higher than what is allowed for passenger vehicles, heat-treated alloy steel gives the best shear strength.

Heavy-Duty and Quick-Release Variants

Class V receiver systems that handle gross trailer weights of more than 12,000 pounds must have heavy-duty pins with 5/8-inch widths. Quick-release systems with T-handle designs make installation easy without tools, and threaded locking collars keep things safe. These are useful in rescue operations or machine hire services that do a lot of coupling every day.

Safety gaps are directly affected by the link between sizes. Class I and II hitches with receiver holes that are 1.25 inches must use pins with a diameter of 1/2 inch. Class III, IV, and V systems with receiver openings that are 2 inches or 2.5 inches must use pins with a diameter of 5/8 inch. When you use a trailer hitch pin that is too small, it leaves too much space around the hole, which leads to repeated impact loads and, eventually, shear failure during shipping.

By knowing these differences, procurement teams can match pin specs to operating settings, making sure that cost-effectiveness and safety requirements are met. Corrosion-resistant materials are helpful for infrastructure builders working on city projects, and locking methods are important for logistics distributors to protect their assets across regional areas.

Benefits and Safety Considerations of Using Trailer Hitch Pins

Operational Advantages for Industrial Users

Good trailer hitch pin options have a steady holding force that gets rid of the "clunking" sound that comes from receiver tubes and shanks not touching. This lowers the vibrations that hurt fragile goods while it's being transported and makes both the hitch system and the towed equipment last longer. Maintenance teams can check and repair pin-based retention systems without special training because they are so simple. This cuts down on downtime compared to complex coupling mechanisms.

When emergency stopping is needed, the mechanical benefit of properly defined pins becomes clear. When the momentum of a heavy trailer pushes forward against the tow car, it causes double-shear loading, which spreads the force over two contact places instead of one. This load distribution shows why minimum shear strengths are required in engineering standards instead of simple tensile rates.

Common Safety Mistakes and How to Avoid Them

It is very dangerous to try to use building bolts or a trailer hitch pin instead of hitch pins that are made for that reason. Standard nuts don't have the right shear grade, and the metal they're made of is often weak and breaks when they're hit. Also, nuts can come loose on threaded bolts, especially when driving on rough terrain or for long periods of time on the highway.

Maintenance Protocols for Extended Service Life

If you don't check for wear, the holes in both the reception tube and the pin will slowly get longer. Visual checks should show any deformation, surface cracking, or decrease in width that can be seen. When setting up regular maintenance plans, procurement managers usually say that fleet cars that work in harsh conditions or that show signs of wear should have their pins replaced every 24 months.

When you clean it regularly, you get rid of the road salt, dirt, and water that speed up rust and make it harder to enter. Putting lubricating oil on the pin shaft before putting it away stops it from rusting in the air. Locking pins need extra care. Graphite oil should be applied to the cylinder mechanism once a month to keep water out, which can freeze the internal tumblers. By adding these rules to standard operating procedures, you can be sure that you are following safety rules at work and that tools won't break down during important transport operations.

Safety concerns go beyond the pin and include the whole receiver system. Before every tow, business operations make sure that the pins are installed correctly and that the ball mount height fits the trailer coupler. This is the basis for safe towing practices.

How to Choose the Right Trailer Hitch Pin for Your Business Needs

Evaluation Framework for Procurement Managers

To choose the right trailer hitch pin, you need to look at three main factors: the load capacity alignment, the weather exposure, and the security needs. The receiver class grade is the first thing that is looked at when figuring out the load capacity. It is important not to go over the manufacturer's recommended overall trailer weight, since pins are built as part of an integrated safety system. Material choice is based on the environment. For example, stainless steel is required for saltwater exposure, but cheaper galvanised options can be used for normal industry use.

Supplier Reliability and After-Sales Support

How secure something is depends on how much it is worth and how it is stored. Keyed locking pins are worth the extra cost for businesses that leave equipment in unguarded yards overnight, but clip-style pins may be fine for fleet yards that are watched. The choice grid should also take coupling frequency into account. Designs with quick releases that cut down on work time without lowering retention strength are better for high-cycle operations.

In addition to product specs, choosing the right provider also affects the long-term success of a business. Well-known companies usually offer technical help for special uses, like when shanks are too big and need pin lengths that aren't standard, such as for a trailer hitch pin. Reliable sellers keep regular stock levels, which keeps production from being held up when large reorders need to be made. Technical documents, such as material certifications and shear strength test results, are very important when engineering teams or safety groups need to be convinced of a purchase choice.

Bulk Purchasing Optimization

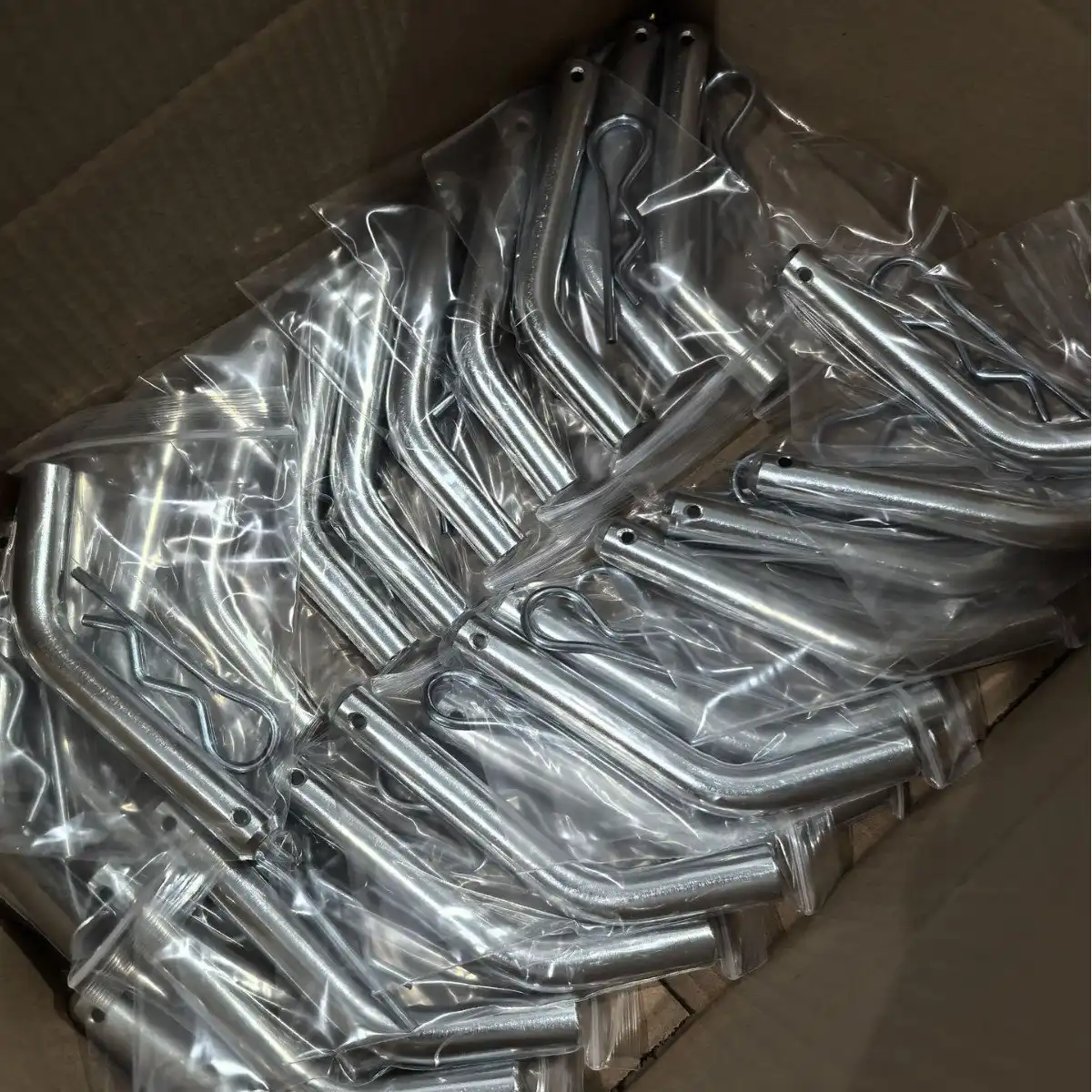

If distributors and fleet managers want to save money by buying in bulk, they should discuss prices based on annual volume promises instead of per-order amounts. Shipments at the container level lower costs per unit while making sure that merchandise is available during busy times. Setting minimum and maximum inventory levels and automatic restock points stops both running out of stock and having too much capital stuck in inventory that doesn't move quickly.

When buying from foreign makers, quality control rules become very important. Requesting material test results and specifying ISO 9001 certification both make sure that the production process is consistent. Some procurement teams use incoming inspection methods to test sample pins from each shipment lot to make sure they have the right shear strength before sending them to operating places.

There is a strong link between supplier dependability and business continuity that can't be stressed enough. One piece of equipment breaking down because of low-quality pins can cause damage to cargo, fines from the government, and damage to the company's image that is much worse than any savings from choosing cheaper options. So, procurement plans should focus on value by weighing the original cost against the total costs of ownership, which include repairs, replacements, and lowering the risk of failure.

Installation Guide and Best Practices for Trailer Hitch Pins

Required Tools and Safety Checks

For proper installation, you only need work gloves to protect your hands from sharp edges, a rubber mallet to help connect receivers that won't move, and penetrating lubricant to fix parts that have been corroded. Before you start, make sure that the shank diameter of the ball mount fits the hole of the receiver and that the pin diameter fits the receiver class standard. When you try to push components that are too big, you damage both the receiver and the trailer hitch pin, which weakens the structure.

Installation Procedure for Industrial Applications

First, use a wire brush to remove any dirt from the inside of the receiver tube so that it can be inserted without any problems. Insert the extra shank or ball mount all the way into the receiver until the attachment holes line up. Too much resistance means that something is misaligned or there is internal rust that needs to be fixed before moving on. Put the pin in from the side that is easy to reach and keep pushing until it comes out of the wall on the other side. The pin should go through with mild hand pressure. Too much force could mean that the holes aren't lined up right or that the pin is the wrong thickness.

Put the holding device in place based on the type of trailer hitch pin. For clip-style pins to work, you have to spread the spring wire out, put it through the cross-hole, and then let go of it to connect. For locking pins, you have to put the key in and turn it until the internal mechanism fully locks. Then you take the key out and put the weather cap back on. To make sure the placement is correct, try to remove the pin without unlocking the lock to test the link.

Troubleshooting Installation Challenges

Most of the time, paint buildup in receiver holes or bent receiver walls from earlier hits cause pins to stick when they are being inserted. Carefully reaming the holes with a round file gets rid of the paint without making the openings too big. Bent antennas need to be replaced instead of being fixed in the field because the changed shape makes it impossible to predict how much weight they can hold.

For anti-rattle pins with threaded designs, you need to take extra steps. After putting in the main pin body, thread the locking collar until it touches the receiver wall. Then, use a wrench to tighten to the force recommended by the maker. This physically gets rid of clearance gaps, which stops the wear that comes from vibrations that happens a lot in high-mileage situations.

Real-life examples from building fleets show that using the same type of pins on all cars cuts down on installation mistakes and makes managing supplies easier. When repair workers are first hired, they are taught the right way to fix things. This keeps bad habits from becoming part of the operational culture. Posting picture guides at equipment yards as documentation helps people do things the right way and gives them a quick reference during setups in the field.

Conclusion

Trailer hitch pins are an important part of business towing systems for safety, so you need to make sure you choose the right ones based on the load standards, the weather, and your security needs. Material specs, locking mechanisms, and dimensional tolerances are what set industrial-grade components apart from common hardware. This helps purchasing managers balance cost-effectiveness with working safety. With the right construction procedures and preventative maintenance plans, you can make sure that your equipment lasts as long as possible and meets all safety standards. The link between supplier stability, product quality, and total ownership cost shows how important it is for mission-critical towing operations to work with makers who offer technical support, regular inventory availability, and quality certifications that can be seen. The trailer hitch pin remains the foundation of operational security in logistics and heavy industry.

FAQ

1. How Do I Determine the Correct Trailer Hitch Pin Size for My Fleet?

The size of the pins must match the receiver class requirements set by SAE J684 guidelines. Class I and II hitches with receiver holes that are 1.25 inches wide need pins with a width of 1/2 inch and an insertion length of at least 2 inches. Class III, IV, and V systems with 2-inch or 2.5-inch sensors need pins with a 5/8-inch width and a minimum length of 2.5 inches. Using pins that are too small creates too much space, which leads to impact wear. On the other hand, using pins that are too big stops them from fitting properly and could break the receiver walls.

2. Are Locking Pins Compatible Across Different Hitch Types?

Locking devices work no matter what type of receiver it is, as long as the pin width fits the receiver's requirements. Keyed locking pins come in both 1/2-inch and 5/8-inch sizes, so they work with all hitch classes and make them less likely to be stolen. The locking cylinder needs to be oiled with graphite-based products on a regular basis to keep wetness from corroding it and stopping the mechanism from working.

3. What Replacement Intervals Do Heavy-Use Conditions Require?

If your fleet works in harsh conditions like saltwater, off-roading, or daily coupling cycles, you should change your parts every 24 months, even if there isn't any obvious wear. Standard highway towing in average weather makes the time between visits 48 months. No matter how long it has been in service, a visual check for surface cracks, deformation, or a smaller width should lead to urgent replacement.

Partner with RUIRUI for Premium Trailer Hitch Pin Solutions

Qingdao RUIRUI Machinery Co., LTD has been making precision-engineered trailer hitch pin units that meet strict SAE safety standards for over 15 years. They are used in industry towing uses. Our factory has advanced quality control systems that are approved under ISO 9001, ISO 14001, and OHSAS 18001. These systems work together with automated production lines to make sure that every pin works the same way in even the toughest conditions. As a straight maker of trailer hitch pins, we can support OEM customisation with specific size needs, material requirements, and locking mechanisms that are made to fit the needs of your fleet.

We can make a lot of different things, like progressive pressing, CNC machining, heat treatment, and coatings that prevent corrosion. This lets us serve large orders quickly and at factory-direct prices. Whether you need galvanised steel clip pins for building fleets or locking versions made of stainless steel for naval use, our engineering team is here to help you through the whole process of specifying and buying. You can email us at kshdhardware@qdkshd.com to talk about bulk prices, get material certifications, or set up a meeting with our OEM development team. Protect your tow operations with RUIRUI's quality that has been tested and their quick technical help that is tailored to the needs of industrial buying managers.
