what are some possible defects in drawn sheet-metal parts?

2025-05-23 14:27:09

Sheet metal parts assume a vital part in different enterprises, from car to aviation and then some. The most common way of attracting sheet metal to make explicit shapes and parts is mind boggling, and like any assembling cycle, it can bring about absconds. Understanding these potential imperfections is fundamental for quality control and item dependability. In this far reaching guide, we'll investigate the normal deformities that can happen in drawn sheet-metal parts, their causes, and expected arrangements. Whether you're a producer, engineer, or just keen on the complexities of sheet metal manufacture, this article will give important bits of knowledge into the difficulties and contemplations engaged with creating excellent products.

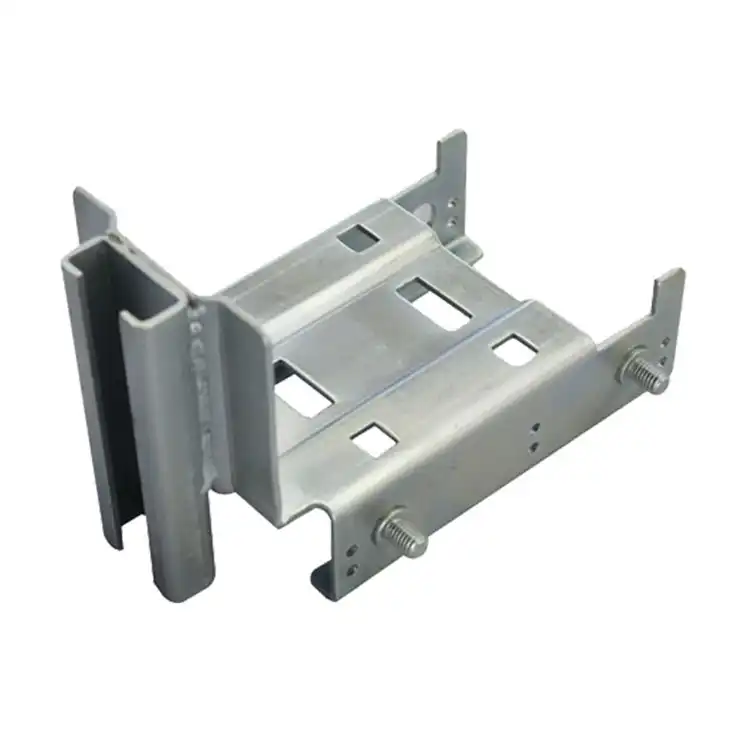

blog-1-1

Surface Defects in Sheet Metal Parts

Scratches and Scuff Marks

Scratches and scuff marks are common surface defects in products, arising during manufacturing from handling to assembly. These imperfections can diminish aesthetic appeal and potentially compromise structural integrity. To mitigate this, manufacturers use specialized handling equipment, apply temporary protective coatings, and ensure proper storage and transportation. Rigorous quality control procedures are also essential for identifying and addressing defects before the final product reaches customers.

Orange Peel Effect

The orange strip impact is a surface deformity portrayed by a surface looking like the skin of an orange. This deformity regularly happens during the work of art or covering interaction of products. It very well may be brought about by different elements, including inappropriate paint thickness, erroneous splash weapon settings, or deficient surface planning. To forestall the orange strip impact, makers should cautiously control the work of art climate, streamline paint details, and guarantee appropriate surface planning methods. Ordinary upkeep of painting gear and consistent preparation of work force can likewise add to lessening the event of this imperfection.

Waviness and Distortion

Waviness and distortion in sheet metal parts can affect appearance and functionality, often caused by uneven cooling or residual stresses. To address these defects, manufacturers can optimize forming parameters, implement stress-relief techniques like heat treatment, and use advanced simulation tools to predict and prevent distortions during design and manufacturing.

Structural Defects in Sheet Metal Parts

Cracks and Fractures

Cracks and fractures in sheet metal can severely compromise product integrity and safety, often caused by excessive stress, material fatigue, or improper heat treatment. Preventing these defects requires careful material selection, optimized forming processes, and stress-relief techniques. Non-destructive testing methods can help detect internal cracks effectively.

Springback

Springback is a typical peculiarity in sheet metal framing where the material to some extent gets back to its unique shape after the shaping power is taken out. This flexible recuperation can prompt layered mistakes and influence the fit and capability of the part. The level of springback relies upon elements like material properties, part calculation, and shaping circumstances. To alleviate springback, makers frequently utilize strategies, for example, overbending, where the part is framed past the ideal point to make up for the normal springback. High level reproduction programming can likewise be utilized to anticipate and represent springback during the plan stage, considering more precise tooling and process boundaries.

Wrinkling and Buckling

Wrinkling and buckling are structural defects that occur when the sheet metal parts experiences compressive stresses during forming. These defects manifest as unwanted folds or deformations in the material, compromising both the appearance and structural integrity of the part. Preventing wrinkling and buckling requires careful control of the forming process, including optimizing blank holder force, die design, and lubricant application. In some cases, implementing multi-stage forming processes or using specialized tooling can help distribute stresses more evenly and reduce the likelihood of these defects.

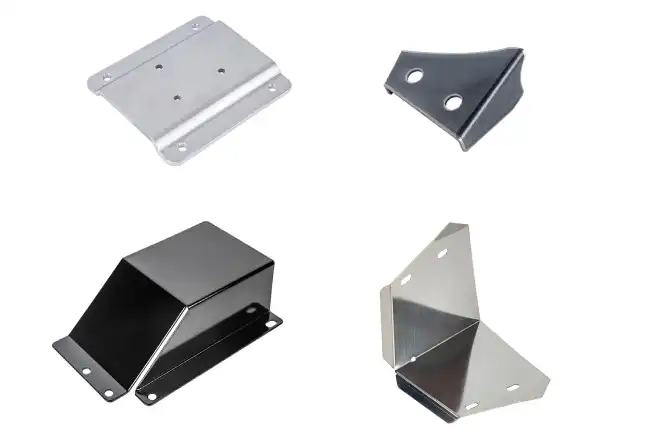

blog-1-1

Manufacturing-Related Defects in Sheet Metal Parts

Burrs and Sharp Edges

Burrs and sharp edges are common defects that arise during cutting and punching operations in sheet metal fabrication. These unwanted protrusions not only pose safety hazards but can also interfere with assembly processes and the overall functionality of the part. To address this issue, manufacturers often employ deburring techniques such as mechanical abrasion, chemical etching, or specialized deburring tools. Implementing proper tool maintenance schedules and optimizing cutting parameters can also help minimize the formation of burrs during the manufacturing process.

Inconsistent Material Thickness

Variations in material thickness across sheet metal parts can lead to structural weaknesses, assembly issues, and aesthetic irregularities. This defect may result from inconsistencies in the raw material or non-uniform stretching during the forming process. Ensuring consistent material thickness requires a combination of stringent quality control measures for raw materials and precise control of the forming process. Advanced thickness measurement technologies, such as ultrasonic gauges or X-ray systems, can be employed to monitor and maintain thickness uniformity throughout production.

Welding Defects

For products that require welding, various defects can occur at the weld joints. These may include porosity, lack of fusion, incomplete penetration, or distortion due to heat-induced stresses. Welding defects can significantly compromise the structural integrity and performance of the final product. Preventing welding defects involves a multifaceted approach, including proper selection of welding parameters, use of appropriate filler materials, and implementation of effective pre- and post-weld treatments. Regular training of welding personnel and the use of advanced welding technologies, such as automated welding systems, can also contribute to reducing the occurrence of these defects.

Conclusion

Understanding and addressing the potential defects in drawn sheet metal parts is crucial for manufacturers aiming to produce high-quality, reliable components. By implementing robust quality control measures, optimizing manufacturing processes, and staying informed about the latest advancements in sheet metal fabrication technology, manufacturers can minimize defects and enhance the overall quality of their products. Continuous improvement and vigilance in identifying and resolving these issues are key to maintaining a competitive edge in the sheet metal industry. If you want to get more information about this product, you can contact us at info@qdkshd.com.
