What is the difference between a pin and a ball hitch?

Picture this: you're standing in front of your truck, trailer loaded and ready to go, but you're staring at two completely different hitch systems wondering which one will keep your valuable cargo secure during transport. The choice between a pin hitch (also known as a pintle hitch) and a ball hitch isn't just about preference—it's about safety, capacity, and application suitability. The fundamental difference lies in their design and functionality: a ball hitch uses a spherical coupling mechanism with a tight-fitting coupler, while a pin hitch employs a heavy-duty pin and lunette ring system that allows more articulation. Understanding these differences is crucial for selecting the right trailer hitch pin and ensuring optimal towing performance for your specific needs.

Understanding Ball Hitch Systems and Trailer Hitch Pin Components

Ball hitch systems represent the most common towing solution for recreational and light commercial applications. These systems utilize a spherical ball mounted on a ball mount that fits into a socket-style coupler on the trailer tongue. The connection is secured using a trailer hitch pin that locks the coupler mechanism in place, creating a tight, secure connection between the towing vehicle and trailer. The ball hitch design excels in providing smooth, quiet operation during transport. The tight-fitting connection between the ball and coupler minimizes movement and reduces noise, making it ideal for highway driving and recreational towing. Ball hitches typically accommodate trailers with gross vehicle weight ratings ranging from 2,000 to 15,000 pounds, depending on the hitch class and ball size. The receiver trailer hitch pin plays a crucial role in maintaining the security of this connection, preventing accidental disconnection during transport. Modern ball hitch systems incorporate safety features such as latch mechanisms, safety chains, and breakaway systems. The trailer pin used in these applications must meet specific strength requirements to ensure reliable performance. High-quality trailer hitch pins feature corrosion-resistant coatings and precision engineering to withstand the stresses of regular towing operations.

• Ball Hitch Applications and Limitations

Ball hitches find widespread use in recreational vehicle towing, including boat trailers, utility trailers, travel trailers, and equipment haulers. Their design makes them particularly suitable for applications where smooth operation and minimal noise are priorities. However, ball hitches do have limitations in terms of maximum weight capacity and articulation range compared to pin hitch systems. The tight coupling design of ball hitches can create challenges in certain applications. Sharp turns and uneven terrain can place significant stress on the connection point, potentially leading to premature wear or failure if the system is overloaded. Additionally, the limited articulation of ball hitches makes them less suitable for applications requiring extreme maneuverability or operation in challenging terrain conditions.

Pin Hitch Systems: Heavy-Duty Trailer Pin Solutions

Pin hitch systems, commonly known as pintle hitches, represent the heavy-duty end of the towing spectrum. These systems utilize a large pin or hook that connects to a lunette ring mounted on the trailer tongue. The connection is secured using a latch mechanism that can be operated manually or automatically, depending on the specific design. Pin hitches are engineered to handle substantially higher weight capacities than ball hitches, often supporting loads exceeding 30,000 pounds. The design philosophy behind pin hitch systems prioritizes strength, durability, and operational flexibility over comfort and quiet operation. The loose-fitting connection between the pin and lunette ring allows for significant articulation in all directions, making pin hitches ideal for applications involving rough terrain, sharp turns, and heavy loads. The receiver trailer hitch pin in these systems must be substantially more robust than those used in ball hitch applications. Pin hitch systems incorporate safety features specifically designed for heavy-duty applications. These include positive locking mechanisms, backup safety chains rated for the full towing capacity, and often redundant connection points. The trailer pin components used in these systems undergo rigorous testing to ensure they can withstand the extreme forces encountered in commercial and industrial towing applications.

• Industrial Applications and Advantages

Pin hitch systems dominate in agricultural, construction, military, and industrial applications where maximum towing capacity and operational flexibility are paramount. Farm equipment, construction trailers, military transport, and heavy industrial equipment typically utilize pin hitch connections due to their superior strength and articulation capabilities. The loose-fitting nature of pin hitches allows trailers to articulate freely during operation, reducing stress on both the towing vehicle and trailer components. This flexibility proves invaluable when navigating construction sites, farm fields, or other challenging terrain where precise maneuvering is required. However, this flexibility comes at the cost of increased noise and vibration compared to ball hitch systems.

Key Differences in Trailer Hitch Pin Specifications

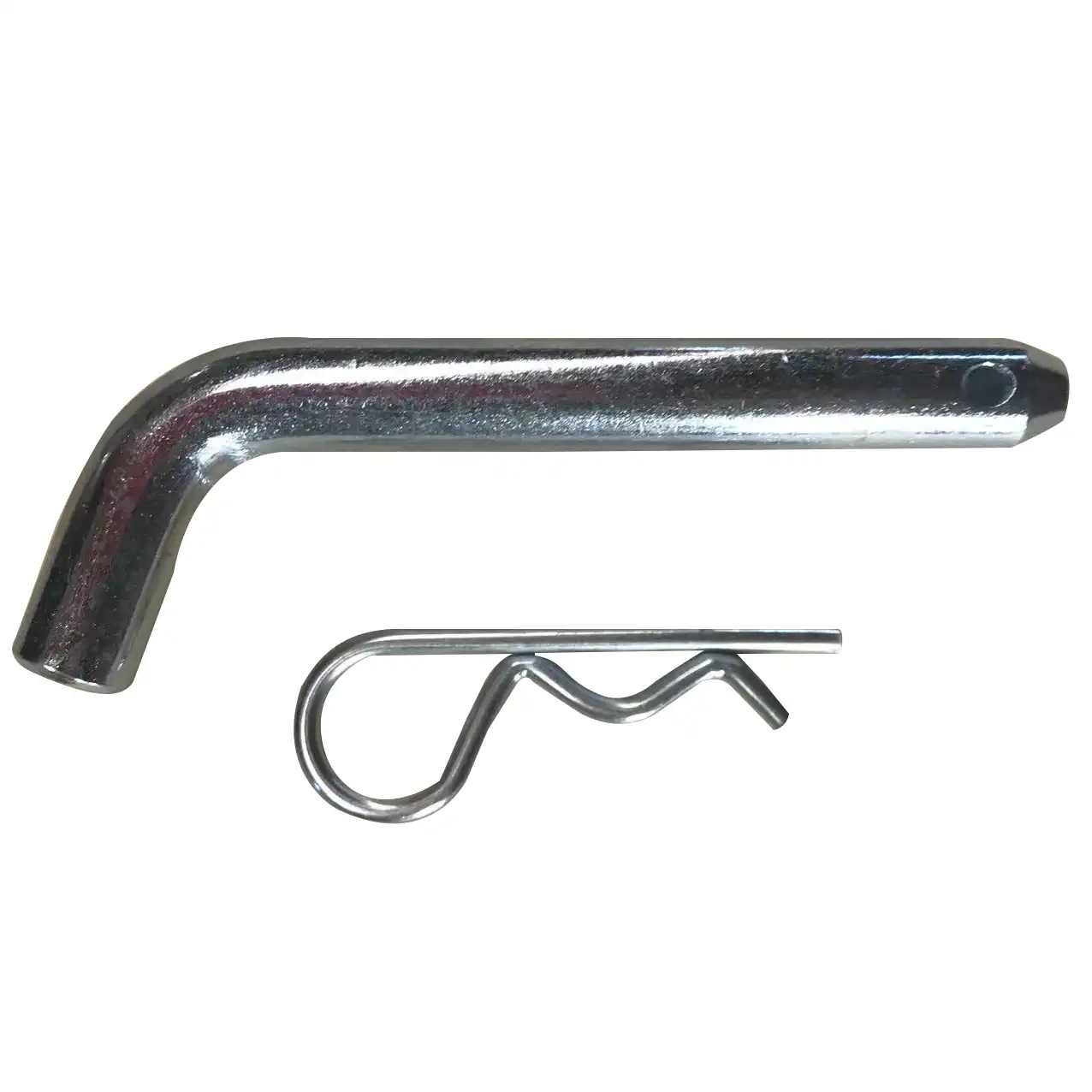

The specifications for trailer hitch pins vary significantly between ball hitch and pin hitch applications. Ball hitch trailer pins typically range from 1/4 inch to 5/8 inch in diameter, with lengths varying from 2 inches to 4 inches depending on the receiver size and application. These pins are designed to secure ball mounts within receiver hitches and must provide adequate strength while maintaining ease of installation and removal. Pin hitch applications require substantially more robust trailer pin components. Pintle hitch pins often measure 1 inch or more in diameter and incorporate specialized locking mechanisms to handle the extreme forces generated during heavy-duty towing operations. The receiver trailer hitch pin used in these applications must be engineered to withstand shear forces, tensile loads, and cyclic fatigue that far exceed those encountered in ball hitch applications. Material selection plays a crucial role in trailer hitch pin performance across both applications. High-strength steel alloys with appropriate heat treatment provide the necessary strength and durability for demanding applications. Corrosion-resistant coatings extend service life and maintain performance in harsh operating environments. Quality manufacturers like Qingdao RUIRUI Machinery Co., Ltd. utilize advanced metallurgy and precision manufacturing processes to produce trailer pins that meet or exceed industry standards.

• Weight Capacity and Safety Considerations

Weight capacity represents one of the most significant differences between pin and ball hitch systems. Ball hitches typically accommodate trailers up to 15,000 pounds gross vehicle weight, with most recreational applications falling well below this threshold. The trailer hitch pin used in these systems must be rated to handle the maximum tongue weight and dynamic loads encountered during normal operation. Pin hitch systems routinely handle loads exceeding 30,000 pounds, with some industrial applications approaching 100,000 pounds or more. The trailer pin components in these systems must be engineered to handle not only the static weight but also the dynamic forces generated during acceleration, braking, and maneuvering. Safety factors are typically much higher in pin hitch applications due to the critical nature of the loads being transported.

Choosing the Right System for Your Application

Selecting between pin and ball hitch systems requires careful consideration of multiple factors including load requirements, operating environment, vehicle compatibility, and budget constraints. For most recreational and light commercial applications, ball hitch systems provide the optimal combination of performance, convenience, and cost-effectiveness. The trailer hitch pin requirements for these applications are straightforward and readily available from quality suppliers. Heavy-duty commercial, agricultural, and industrial applications typically benefit from pin hitch systems despite their higher cost and complexity. The superior weight capacity, durability, and articulation capabilities of pin hitches justify their use in demanding applications. The receiver trailer hitch pin components for these systems require more sophisticated engineering and manufacturing but provide superior performance and reliability. Quality considerations should drive the selection of trailer pin components regardless of the chosen hitch system. Reputable manufacturers like Qingdao RUIRUI Machinery Co., Ltd. provide trailer pins engineered to meet specific application requirements with appropriate safety margins. Their products undergo rigorous quality control processes and feature advanced materials and manufacturing techniques to ensure reliable performance in demanding applications.

• Maintenance and Service Life Considerations

Maintenance requirements differ significantly between pin and ball hitch systems. Ball hitches require regular lubrication of the ball and coupler mechanism, periodic inspection of the trailer hitch pin, and replacement of worn components. The tight-fitting nature of ball hitch systems makes them more sensitive to wear and corrosion, requiring more frequent attention to maintain optimal performance. Pin hitch systems, while more robust overall, require different maintenance approaches. The loose-fitting connection generates more wear on contact surfaces, requiring periodic inspection and replacement of pins and bushings. However, the heavy-duty construction of pin hitch components typically results in longer service intervals and lower overall maintenance costs despite the higher initial investment in quality trailer pin components.

Conclusion

Understanding the fundamental differences between pin and ball hitch systems enables informed decision-making for towing applications. Ball hitches excel in recreational and light commercial use with their quiet operation and ease of use, while pin hitches dominate heavy-duty applications requiring maximum capacity and flexibility.

Cooperate with Qingdao RUIRUI Machinary Co., LTD.

As a leading China trailer hitch pin manufacturer, Qingdao RUIRUI Machinery Co., Ltd. has established itself as your trusted partner for high-quality trailer hitch pin solutions since 2016. Our expertise in metal stamping, CNC machining, and advanced coating processes ensures every receiver trailer hitch pin meets the highest industry standards. With ISO certifications, eight production lines, and an annual output of 130,000 pieces, we're your reliable China trailer hitch pin supplier for both OEM and custom applications.

Our comprehensive trailer pin portfolio includes standard and custom designs manufactured from high-grade steel, aluminum alloys, and stainless steel. Whether you need China trailer hitch pin wholesale quantities or specialized one-off solutions, our experienced R&D team delivers innovative products with short lead times and competitive trailer hitch pin prices. As a premier China trailer hitch pin factory, we offer complete manufacturing services from progressive stamping to final finishing processes like powder coating and electroplating.

Ready to source high-quality trailer hitch pin solutions? Contact our team at info@qdkshd.com for detailed specifications, competitive pricing, and technical support. Bookmark this page for quick reference to trailer hitch pin information and connect with China's leading trailer hitch pin manufacturer today!

FAQ

Q: What is the maximum weight capacity difference between pin and ball hitches?

A: Ball hitches typically handle up to 15,000 lbs, while pin hitches can exceed 30,000 lbs capacity.

Q: Which hitch type provides quieter operation during transport?

A: Ball hitches operate significantly quieter due to their tight-fitting design compared to pin hitches.

Q: Are pin hitches more suitable for rough terrain applications?

A: Yes, pin hitches offer superior articulation and flexibility for challenging terrain and sharp turns.

Q: Which trailer hitch pin type requires more frequent maintenance?

A: Ball hitch pins need more regular lubrication, while pin hitch components have longer service intervals.
