Movable Folding Handle Drawer

Movable Folding Handle Drawer - Industrial-Grade Hardware Solution

Qingdao Ruirui Machinery Manufacturing Co., Ltd. presents its enterprise-grade Movable Folding Handle Drawer hardware, engineered for industrial durability and precision. Our flagship product features a minimum order quantity of 1000pcs, manufactured from premium stainless steel and carbon steel materials with thickened construction for enhanced load capacity. With rust-resistant surface medications and full customization capabilities, Ruirui's handles convey a 90-180° collapsing run and pliable stack capacities up to 150kg. Sponsored by ISO9001 certification and 17+ a long time of OEM/ODM fabricating skill, each unit experiences strict quality assessment with resistances kept up at ±0.01mm through our 20+ CNC machining centers, guaranteeing steady execution over car, mechanical apparatus, and transportation applications.

Technical Specifications of Movable Folding Handle Drawer

Our product combines advanced material science with precision engineering to meet demanding industrial requirements.

The thickened backplate plan disperses push equally amid overwhelming lifting operations. Your drawers advantage from spring-loaded return instruments that naturally withdraw the handle after use.

This avoids coincidental catching amid transportation. Elastic hosing cushions kill metal-on-metal rattling in high-vibration environments.

Material & Development Excellence

Ruirui's item arrangements utilize industrial-grade materials chosen for particular execution characteristics.

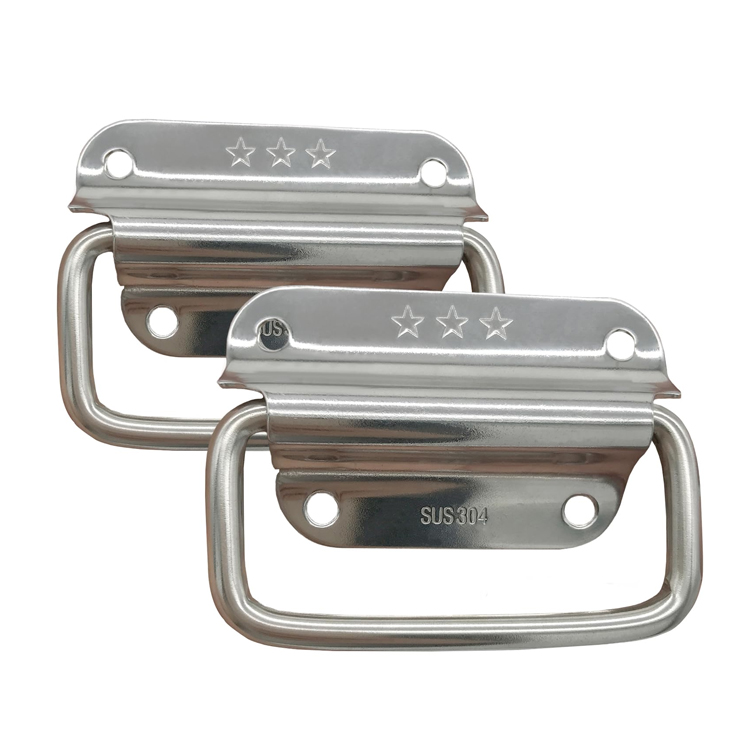

Stainless Steel 304offers fabulous erosion resistance for common open air applications. The fabric withstands temperature variances and keeps up basic keenness beneath rehashed stretch cycles.

Stainless Steel 316provides predominant assurance in marine and coastal situations. The improved molybdenum substance anticipates setting from saline exposure.

Carbon Steel with Chrome Platingdelivers cost-effective unbending nature for indoor applications. This combination gives satisfactory rust resistance whereas keeping up competitive estimating for high-volume orders.

Our fabricating handle incorporates vibration establishing and reflect cleaning choices. These surface medicines expand item life expectancy by 40-60% compared to standard finishes.

Each handle highlights ergonomic hold plan with discretionary PVC dip-molding. This upgrade increments contact and diminishes client weakness amid dreary operations.

Installation & Mounting Options

You can select between two essential establishment strategies based on your application requirements.

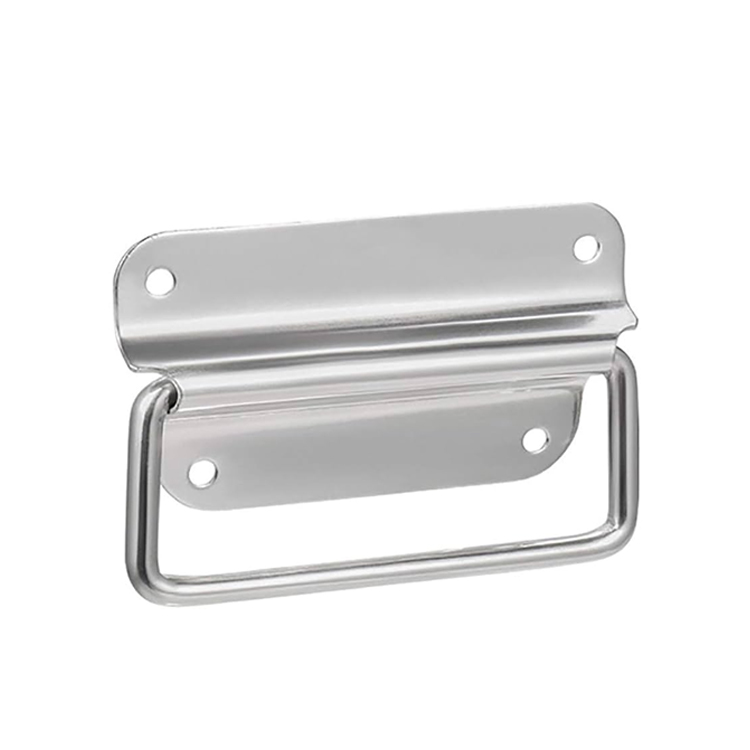

Surface-Mounted Configuration:Bolts specifically onto the drawer confront with pre-drilled gaps. This strategy requires no specialized apparatuses and completes establishment in beneath 5 minutes per unit. Perfect for retrofitting existing furniture or equipment.

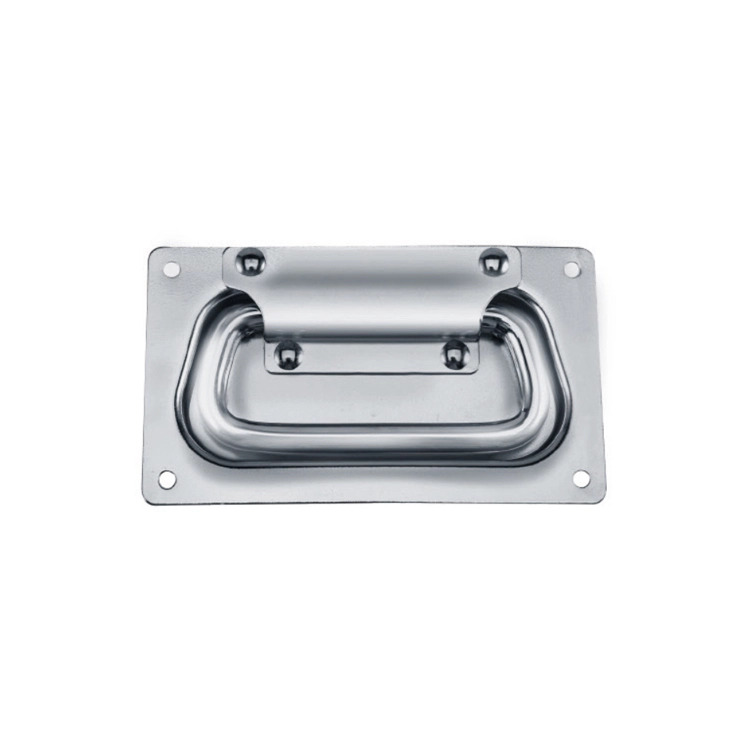

Recessed Configuration:Sits flush inside a steered depth for zero-protrusion profile. This plan is basic for stacking flight cases, apparatus chests, and transportation holders where outside projections make security hazards.

For drawers surpassing 600mm width, double handle establishment is suggested. This disperses torque equally and avoids runner misalignment amid overwhelming stacking scenarios.

Our designing group gives free DFM (Plan for Manufacturability) investigation with your CAD records. We optimize mounting gap designs and backplate measurements to coordinate your particular drawer construction.

Installation equipment incorporates stainless steel jolts and bolt washers. All latches meet Clamor benchmarks for reliable string engagement and vibration resistance.

Customization Capabilities

Ruirui's OEM/ODM administrations change standard equipment into application-specific arrangements custom fitted to your operational needs.

Dimensional Customization:We alter handle length, backplate width, and projection profundity to coordinate your drawer geometry. Our CNC machining centers suit work envelopes up to 2,000 x 1,000 x 600mm for large-format components.

Material Selection:Beyond standard offerings, we machine brass, aluminum amalgam, and composite materials. Fabric certifications (MTC) go with each shipment for traceability.

Surface Treatment Options:Choose from dark oxide, zinc plating, nickel plating, or custom RAL color powder coating. These wraps up coordinated with your existing hardware tasteful whereas giving natural assurance.

Grip Enhancements:Add rubberized sleeves, knurled patterns, or electrical insulation coatings. These modifications improve safety in extreme temperature environments or electrical equipment applications.

Load Rating Adjustments:We engineer backplate thickness and spring tension to meet your specific weight requirements. Testing documentation validates performance claims with actual load cycle data.

Our R&D team assists with design optimization from concept through production. Prototypes ship within 1-2 weeks for functional validation before committing to full production runs.

Quality Assurance Process

Every batch of Movable Folding Handle Drawer hardware undergoes rigorous inspection protocols aligned with international standards.

Raw Material Inspection:Incoming stainless steel and carbon steel sheets receive spectrometer analysis. This verifies alloy composition matches specified grades before machining begins.

In-Process Monitoring:CNC operators perform first article inspection (FAI) on each production batch. CMM (Coordinate Measuring Machine) equipment validates dimensional accuracy against your CAD specifications.

Functional Testing:Spring tension gauges measure return force consistency. Load testing rigs apply 125% rated capacity for 1,000 cycles to simulate extended service life.

Surface Quality Verification:Optical comparators detect micro-scratches or plating irregularities. Roughness testers ensure finish specifications meet Ra values specified in your purchase order.

Documentation Package:Your shipment includes full dimensional reports, material certificates, and PPAP documentation for OEM integration. We maintain production records for 5+ years for traceability requirements.

Our ISO9001:2015 certified facility maintains <0.3% defect rates. Batch sampling follows AQL standards with 100% inspection available for critical applications.

Industry Applications

The versatility of our folding handle design serves diverse sectors with demanding performance requirements.

Automotive & Transportation:Tool storage in service vehicles, underbody storage boxes, and commercial truck organizers. The spring-return mechanism prevents damage when driving through low-clearance areas.

Industrial Machinery:Control panel access doors, CNC machine tool drawers, and maintenance equipment. Recessed mounting keeps walkways clear and meets OSHA safety guidelines.

Flight Cases & AV Equipment:Stackable transportation cases for concert touring, broadcast equipment, and military logistics. Zero-protrusion design maximizes cargo density during shipping.

Medical Equipment:Instrument drawers in surgical carts and diagnostic equipment. Stainless steel 316 construction meets FDA material compliance for sterilization environments.

Marine & Offshore:Galley storage, deck equipment lockers, and subsea tooling. Enhanced corrosion resistance withstands saltwater exposure and humidity fluctuations.

Your specific application may require hybrid features from multiple configurations. Our engineering team evaluates operational requirements and recommends optimal specifications during the quotation phase.

FAQ

Q: Can the product prevent rattling noise in high-vibration vehicle applications?

A:Yes. Premium models integrate a strong return spring and a rubber dampening pad (or sleeve) that holds the handle firmly against the backplate. This eliminates metal-on-metal rattling during transport or engine vibration.

Q: What is the difference between surface-mounted and recessed the products?

A:Surface-mounted units are bolted directly onto the drawer face, offering easiest installation. Recessed units sit inside a routed cavity (dish), providing a completely flat profile (zero protrusion). This design is essential for stacking flight cases.

Q: Is 304 Stainless Steel sufficient for outdoor applications?

A:For general outdoor use, 304 is sufficient. However, for coastal or marine environments with high saline content, we recommend 316 Stainless Steel to prevent pitting and corrosion.

Q: How do I determine the correct size handle for my drawer load?

A:As a rule of thumb, the handle should be rated for at least 125% of the total loaded drawer weight. For drawers exceeding 600mm in width, dual handles are recommended. This distributes torque and prevents drawer runner misalignment.

Q: Can the handle grip be customized for electrical insulation?

A:Yes. While the core structural component is metal, the grip handle can be dip-molded in PVC or fitted with a discrete rubber sleeve. This provides both electrical insulation and thermal protection for users in extreme temperature environments.

Contact Us

Ready to enhance your Movable Folding Handle Drawer equipment with industrial-grade folding handles? Contact our engineering team for custom quotes and technical consultation today!
