U-shaped Clip Pipe Clamp Saddle Clamps

U-shaped Clip Pipe Clamp Saddle Clamps - Industrial-Grade Pipe Securing Solutions

You need solid grounding options for your pipe systems when they are subjected to vibration, thermal expansion, or structural stress. Qingdao Ruirui Machinery Manufacturing's U-shaped Clip Pipe Clamp Saddle Clamps offer business-level performance and cutting accuracy of ±0.005mm. The reinforced U-shaped form of our clamps spreads the gripping power evenly across 180-degree contact areas. Each clamp goes through a 100% dimensional check after being made on 20 or more CNC tools that are certified to ISO 9001:2015. Our clamps are made from AISI 304/316 stainless steel or carbon steel with zinc plating. They have a tensile strength of more than 400 MPa and can withstand salt spray for up to 500 hours, making them great for use in marine, petrochemical, and industrial HVAC systems.

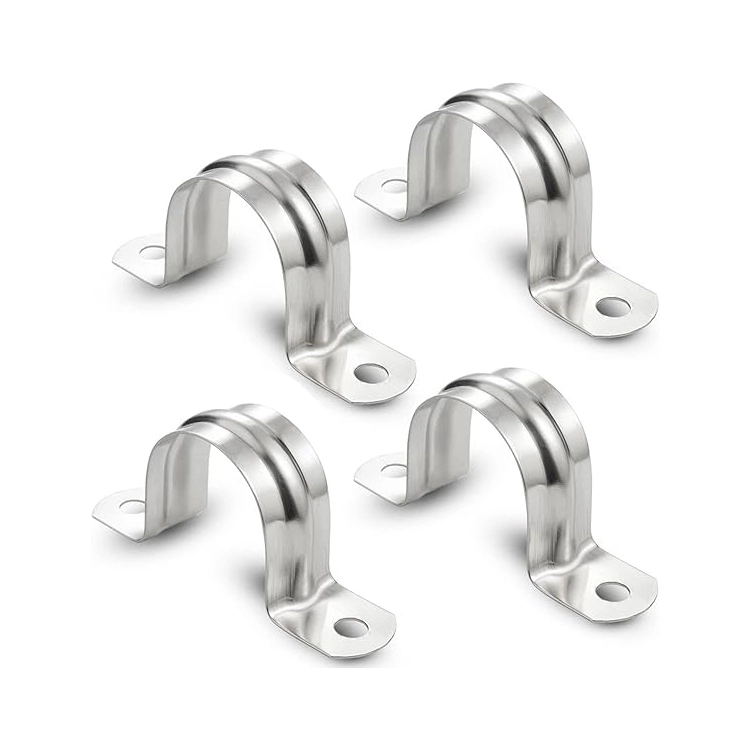

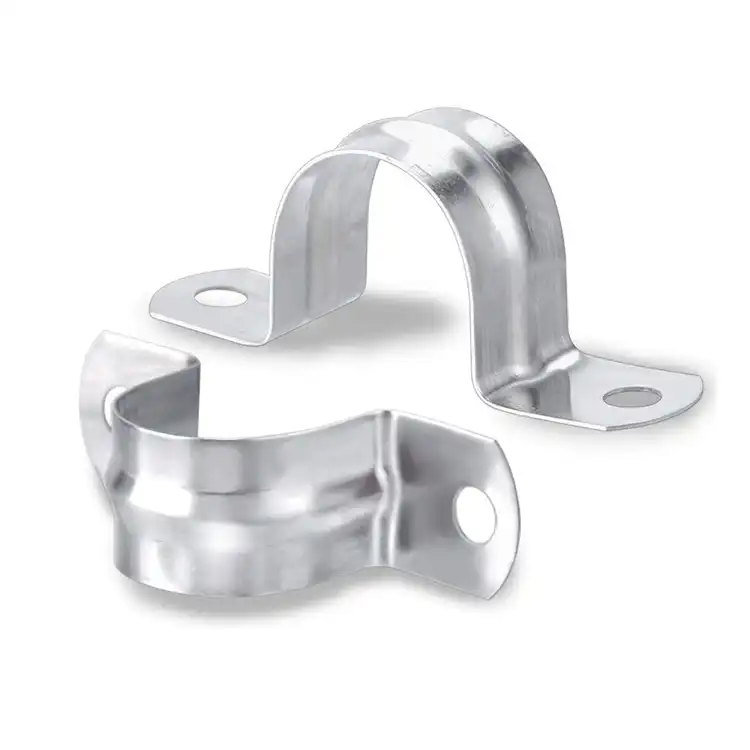

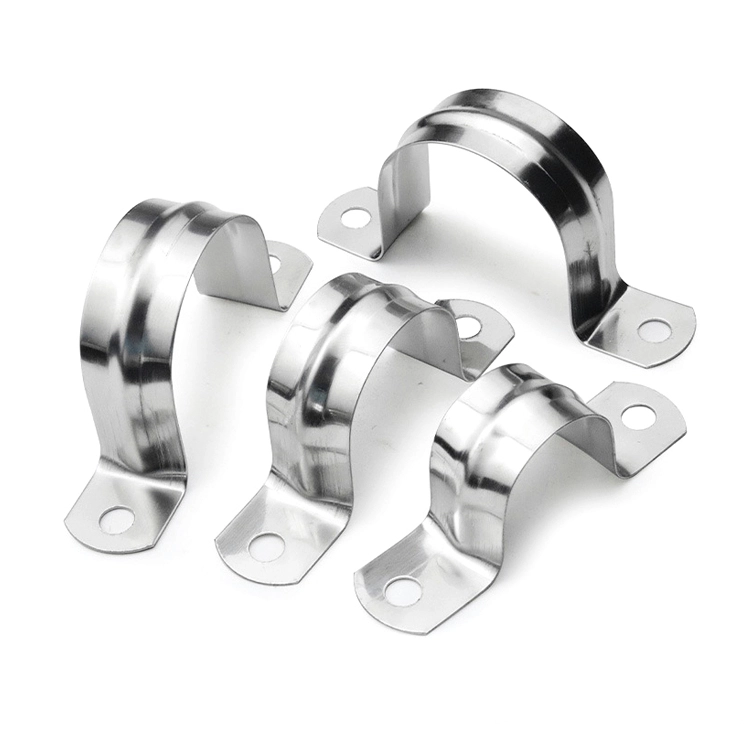

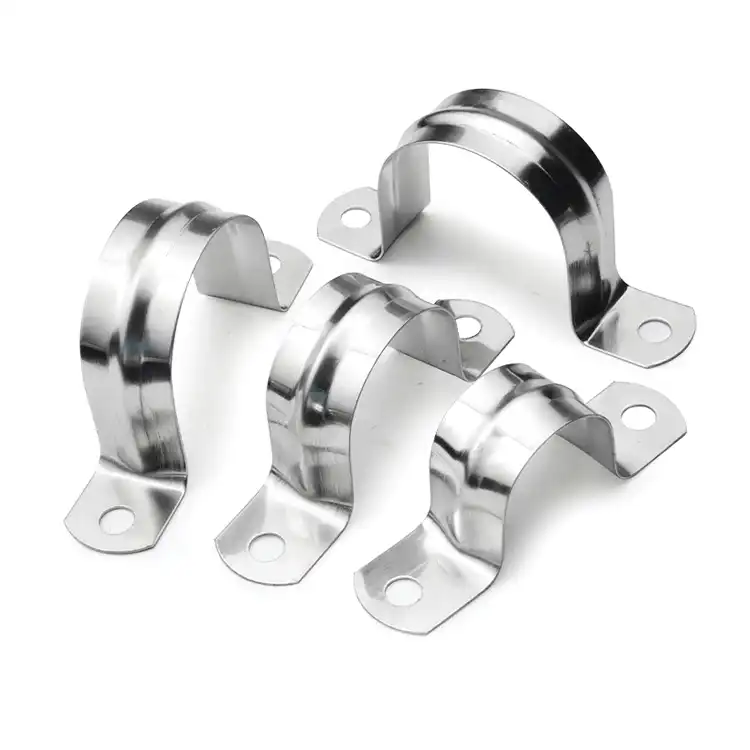

What Are U-shaped Clip Pipe Clamp Saddle Clamps?

With unmatched security, these precision-engineered fasteners hold pipes, tubes, and ducts to solid surfaces. Unlike regular straps, the saddle shape goes around circular items, which gets rid of the weak spots in single-bolt hangers' pivots.

l The pipes in your system are safe because:

l During hydraulic bursts, the two-hole saddle arrangement stops axial slippage.

l Stress accumulation spots are gone when loads are spread out evenly.

l The rigid U-profile design doesn't bend when temperatures change.

When working in places with a lot of shaking or with tiredness caused by resonance, these clamps are a must. The design solves important problems like pipe wear and structural weakness..

Key Technical Properties

Our products combine advanced materials with precision manufacturing:

Ribbed reinforcement options increase longitudinal stiffness for heavy-duty applications. You get friction-fit security without over-tightening that damages pipe coatings.

Industrial Applications That Demand Reliability

Marine & Offshore Engineering

Your hydraulic lines face constant salt spray and deck vibration. Our SS316 variants resist chloride-induced pitting corrosion. The saddle design maintains grip integrity even when waves generate multi-directional forces on piping networks.

HVAC & Industrial Plumbing

Commercial climate systems experience continuous thermal expansion. You can integrate EPDM rubber linings into the saddle interface to dampen compressor noise and absorb thermal movement without loosening anchor points.

Petrochemical Processing

High-pressure transport pipes encounter water hammer effects and pressure surges. The clamps provide shear load resistance that keeps multi-layer piping racks aligned. You avoid costly downtime from pipe misalignment or joint failure.

Infrastructure & Energy

Solar array mounting and electrical conduit routing expose fasteners to UV radiation and wind loading. Our galvanized carbon steel options withstand extreme weather while maintaining electrical grounding continuity.

Cryogenic Storage Facilities

When temperatures swing from -196°C to ambient, material contraction causes joint stress. The 180-degree wrap design accommodates thermal cycling without compromising structural integrity.

Why Choose Qingdao Ruirui's Pipe Clamps?

Factory-Direct Manufacturing Advantages

You eliminate middlemen costs and delays. Our one-stop production—from raw material procurement through CNC machining to finishing—gives you 20-30% cost savings compared to trading companies.

OEM/ODM Customization

Your project has unique requirements. Our engineering team provides free DFM (Design for Manufacturability) analysis. Send your CAD files, and we'll optimize the clamp geometry for your specific pipe diameter, wall thickness, and load conditions.

Proven Quality Systems

Every batch undergoes:

· First Article Inspection (FAI) before production runs

· CMM coordinate measurement for dimensional accuracy

· Material certification (MTC) documentation

· AQL sampling standards for statistical quality control

You receive full traceability with PPAP reports for OEM projects.

Rapid Turnaround

· Prototype samples: 1-2 weeks (free samples available)

· Mass production: 4-7 weeks with 70% on-time urgent order fulfillment

· Real-time production updates keep your procurement schedule on track

Global Logistics Support

Located near Qingdao Port, we offer flexible shipping terms (EXW/FOB/DDP). Your clamps arrive export-ready in wooden boxes, pallets, or cartons configured for container optimization.

Technical Specifications at a Glance

Non-standard modifications include integrated rubber cushions, extended mounting tabs, and reinforced ribs for seismic applications.

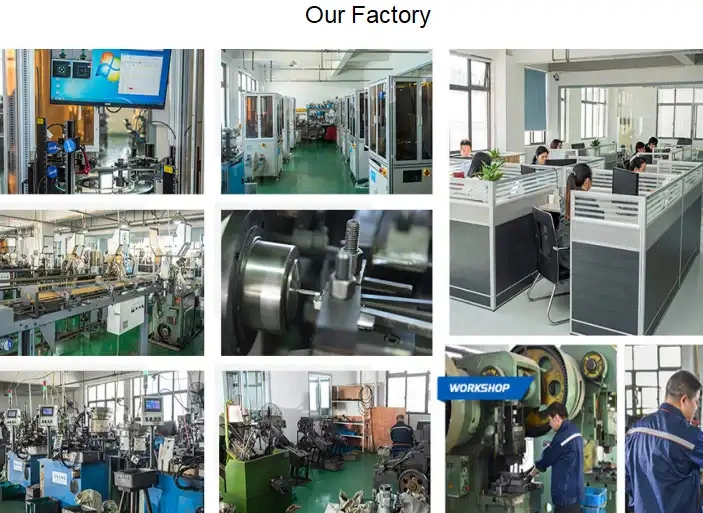

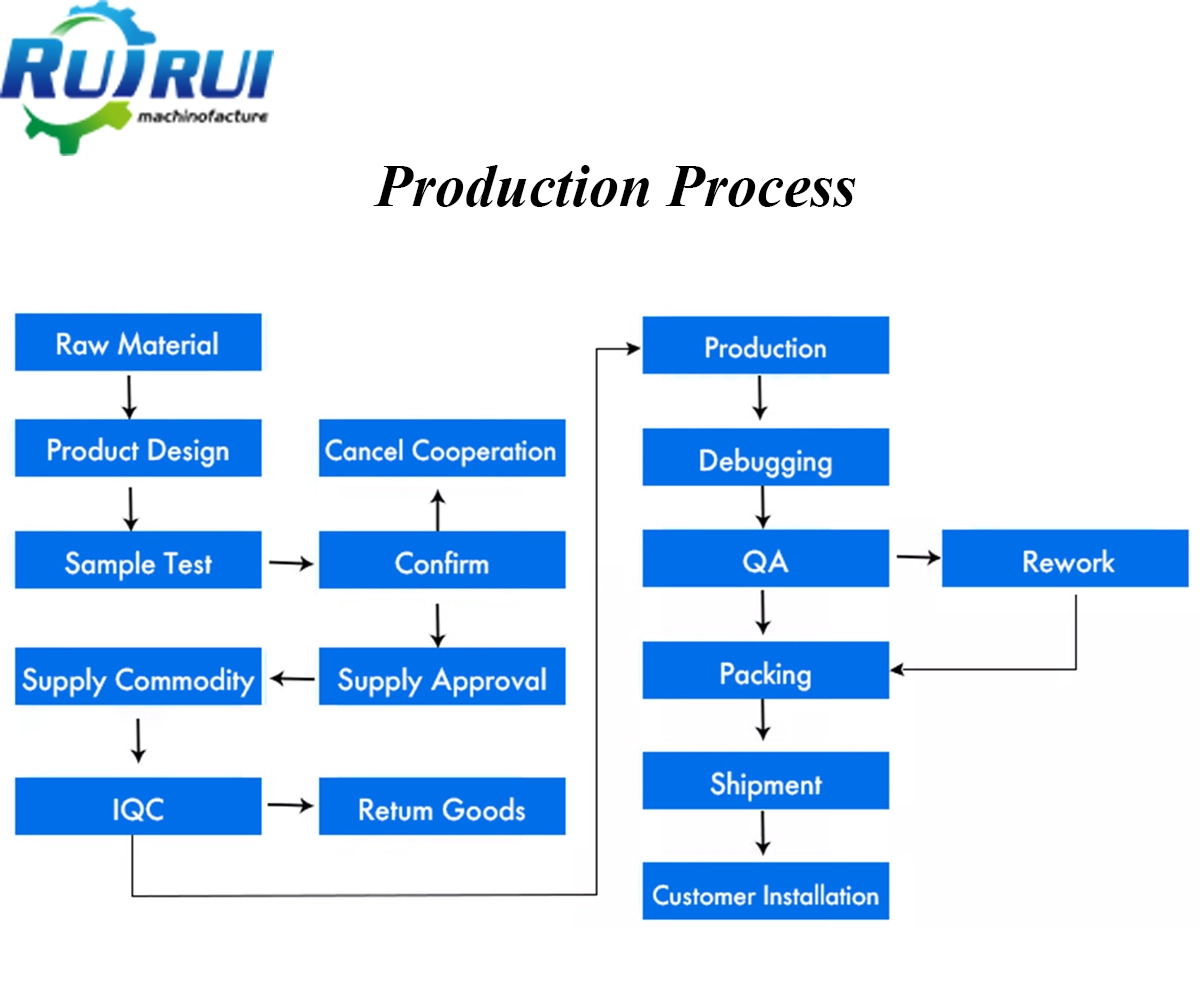

Manufacturing Process Excellence

Our 17+ years of OEM experience ensure consistent quality:

1. Raw Material Inspection: All steel undergoes chemical composition analysis and mechanical testing before warehousing

2. CNC Precision Forming: 3/4/5-axis milling creates complex saddle geometries with minimal tolerance stacking

3. Surface Treatment: In-house electroplating and powder coating eliminate outsourcing variables

4. Assembly & Testing: Automated torque testing verifies clamping force consistency

5. Packaging: Anti-corrosion VCI paper and moisture barriers protect during transit

You get consistent performance across production batches—critical for multi-phase construction projects.

How to Order Your Custom Solution?

Step 1: Email your technical requirements to kshdhardware@qdkshd.com

Include pipe diameter, material preference, quantity, and application environment.

Step 2: Receive Free DFM Analysis

Our engineers review your specifications and suggest optimizations within 48 hours.

Step 3: Approve Quotation

Transparent pricing covers tooling (if needed), production, finishing, and packaging.

Step 4: Production & Updates

We provide progress photos and inspection reports at key milestones.

Step 5: Quality-Assured Delivery

Products ship with full documentation and material certificates.

FAQ

Can you accommodate metric and imperial pipe standards?

Yes. We manufacture to DIN, ASTM, and JIS specifications. Provide your pipe OD, and we'll match the clamp inner diameter with proper clearance.

What's the minimum order quantity?

Zero MOQ for prototypes. Production runs start at 500 pieces, but we accommodate smaller batches for specialized applications.

Do you provide anti-vibration liners?

Absolutely. EPDM, NBR, and silicone cushions can be molded into the saddle interface. This prevents galvanic corrosion and dampens resonance frequencies.

How do I specify load requirements?

Share your pipe weight, fluid density, flow velocity, and vibration frequency. We'll calculate required material thickness and recommend bolt grades.

Commitment to Your Project Success

At Qingdao Ruirui, your piping system's reliability drives our manufacturing precision. Every U-shaped Clip Pipe Clamp Saddle Clamps we produce reflects 20 years of continuous improvement in quality control and customer service.

You gain:

· Cost certainty through factory-direct pricing

· Schedule confidence with proven lead times

· Technical support from prototype through installation

· IP protection with secure NDAs and data handling

Our coastal location and established logistics network mean your components arrive when you need them—whether you're managing a petrochemical expansion in Southeast Asia or retrofitting HVAC systems in North America.

Contact Us

Ready to secure your piping infrastructure with precision-engineered clamps with U-shaped Clip Pipe Clamp Saddle Clamps? Reach our engineering team today: kshdhardware@qdkshd.com
