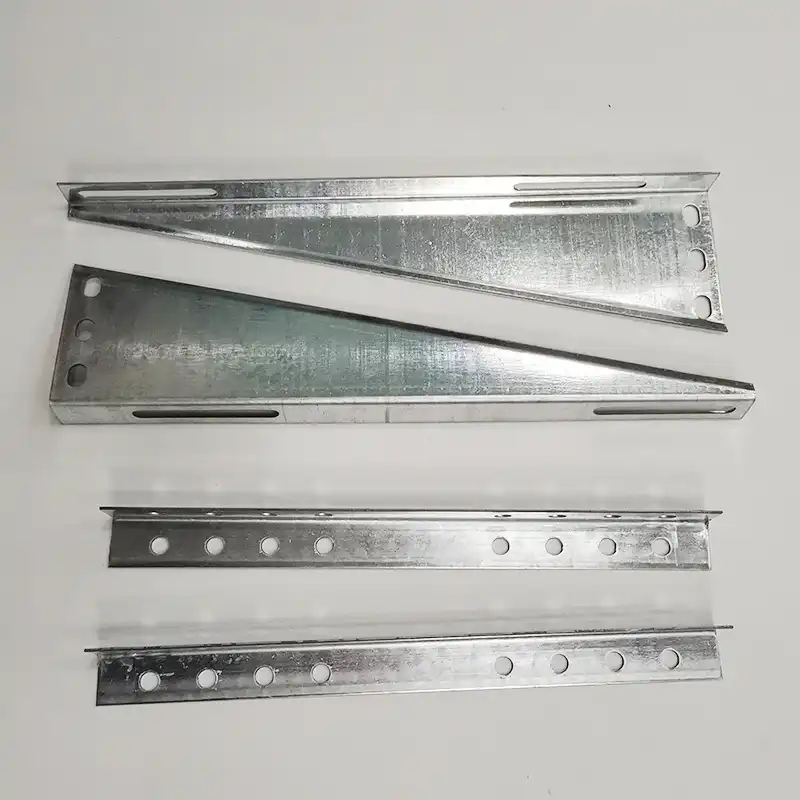

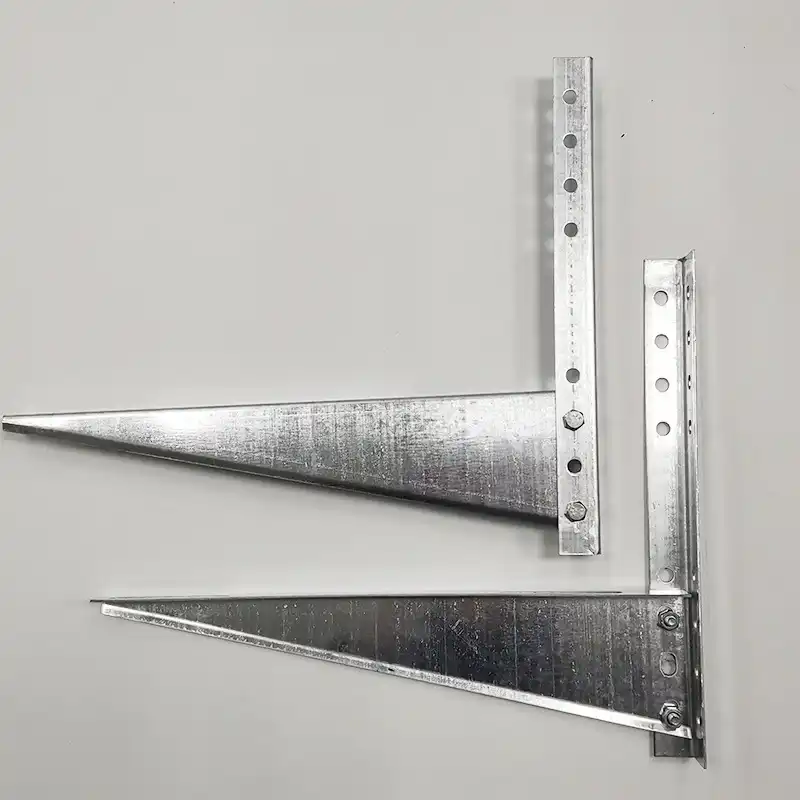

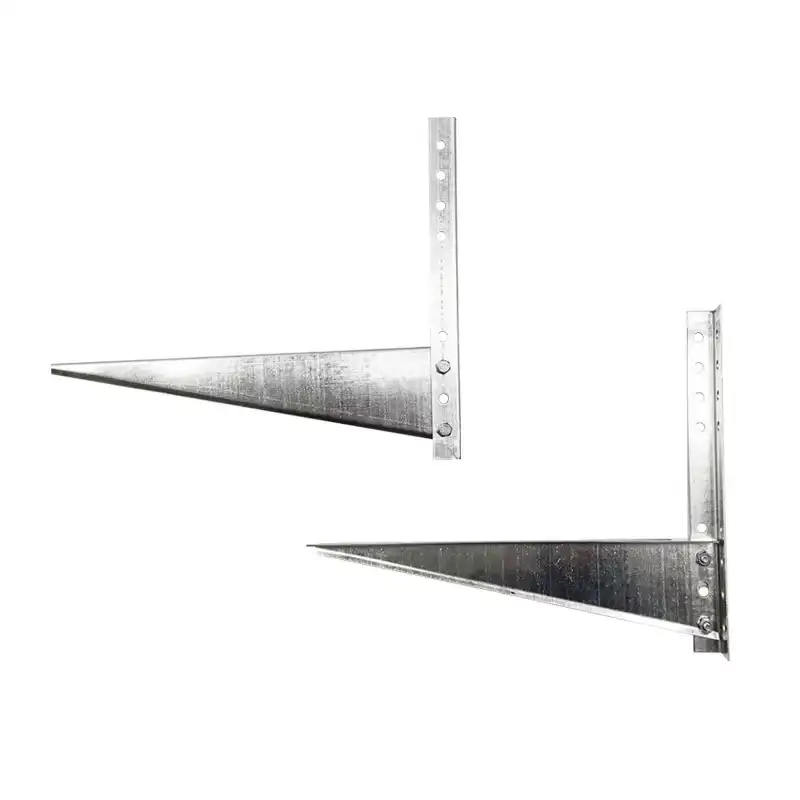

General air conditioning galvanized external unit bracket

General Air Conditioning Galvanized External Unit Bracket - Premium HVAC Mounting Solution

When you're installing outdoor air conditioning units in challenging environments, you need a support system that won't fail. Our General air conditioning galvanized external unit bracket from Qingdao RuiRui Machinery Manufacturing delivers exactly that. Designed from high-grade Q235B auxiliary steel with hot-dip galvanization, these brackets give prevalent erosion resistance with zinc coating thickness coming to 60-85 microns (assembly ISO 1461 guidelines). Stack capacity ranges from 120kg to 300kg, depending on gage thickness (1.5-3.0mm), whereas salt splash resistance surpasses 500+ hours in NSS testing. With 17+ a long time of sheet metal creation mastery and ISO 9001:2015 certification, we fabricate mounting arrangements that ensure your HVAC speculation against rust, vibration, and auxiliary failure.

Why Galvanized Steel Makes All the Difference

Standard painted brackets fall flat inside 2-3 years in coastal regions. You've likely seen the rust stains on building walls.

Our galvanized brackets unravel this issue completely.

The zinc coating acts as a conciliatory layer. It ensures the steel underneath from oxidation. Indeed when scratched, the zinc proceeds working.

Key protective features:

· Hot-dip galvanization creates molecular bonding

· Zinc layer prevents moisture penetration

· Self-healing properties at minor damage points

· UV-stable finish maintains integrity for years

You get reliable performance in humid climates, seaside locations, and industrial zones.

Technical Specifications That Matter

Parameter	Specification	Industry Standard
Base Material	Q235B Structural Steel	ASTM A36 Equivalent
Sheet Thickness	2.0mm - 3.0mm	High Load Applications
Galvanization Type	Hot-Dip Galvanized	ISO 1461 Certified
Zinc Coating Thickness	60-85 microns	Superior Protection
Load Capacity	120kg - 300kg	Supports All Unit Sizes
Salt Spray Resistance	500+ hours	ASTM B117 Testing
Surface Finish	Bright Zinc Coating	Corrosion Class C5
Mounting Pattern	Adjustable/Universal	Fits Multiple Brands
Safety Factor	3:1 Minimum	Engineering Standard

Design Features Built for Real-World Challenges

Reinforced Load Distribution

Your open-air unit produces consistent vibration. Destitute brackets exchange this clamor specifically into walls.

We've coordinates fortified crossbar ribbing into our plan. This anticipates auxiliary distortion beneath working torque. It too hoses vibration transmission.

The result? Calmer operation and longer bracket lifespan.

Adjustable Mounting System

Different AC brands have distinctive impressions. Custom manufacturing costs you time and money.

Our secluded plan obliges units from 7,000 to 60,000 BTU. Sliding rail frameworks adapt to different mounting gap designs. You get all inclusive compatibility without compromise.

Anti-Slip Surface Treatment

Condensers can shift during strong winds or earthquakes. Movement damages refrigerant lines and electrical connections.

We include textured contact surfaces and secure locking mechanisms. Your unit stays exactly where you mount it.

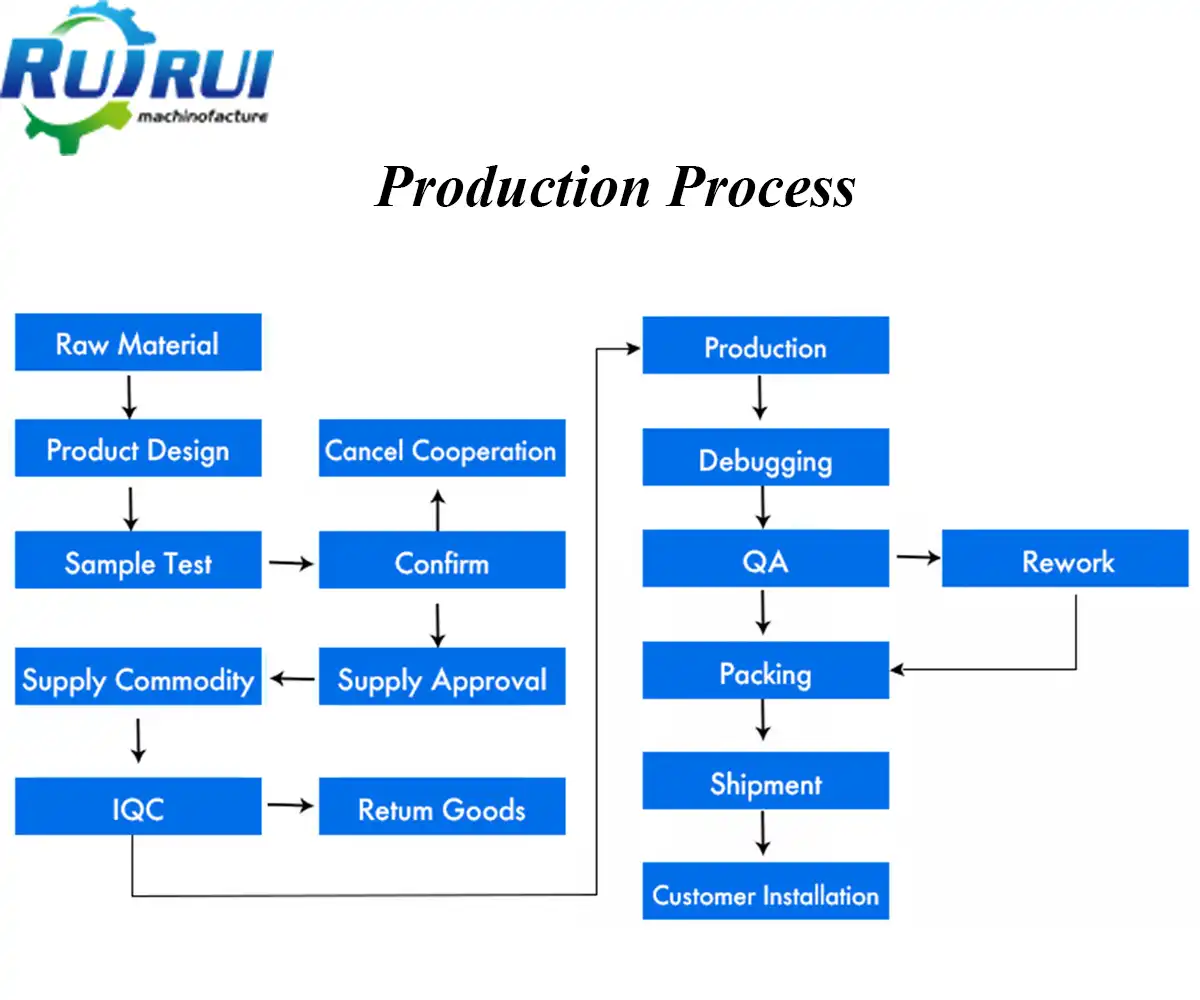

Manufacturing Excellence You Can Trust

At Qingdao RuiRui Machinery Manufacturing, we control every production step.

Our one-stop process includes:

· Precision sheet metal cutting using CNC equipment

· High-force bending with tolerance ±0.5mm

· Hot-dip galvanization in certified facilities

· 100% dimensional inspection before packaging

· Material certification documentation

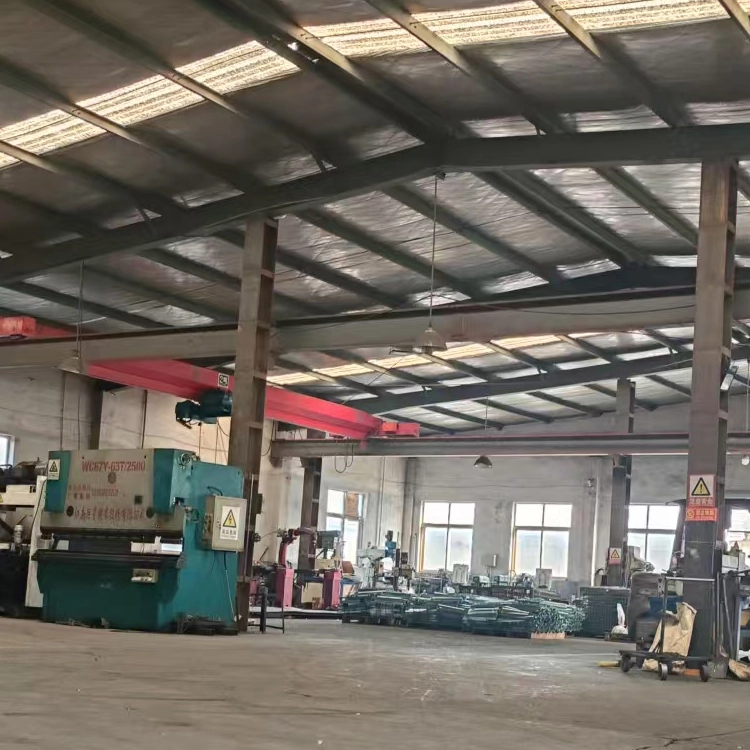

We operate 20+ CNC machines with 24/7 production capacity. This means faster turnaround for your projects.

Quality inspection happens at three checkpoints:

1. Raw material verification

2. In-process dimensional checks

3. Final load testing before shipment

Only brackets meeting full specifications leave our facility.

Where You Should Use These Brackets

Coastal and High-Humidity Regions

Salt air destroys standard hardware within months. You face expensive replacements and potential unit damage.

The General air conditioning galvanized external unit bracket withstands marine environments. The zinc coating resists chloride corrosion. Your installation remains secure for 10+ years.

High-Rise Building Installations

Wind loads increase with height. Inadequate brackets create safety hazards and liability issues.

Our brackets meet structural engineering requirements for elevated installations. High tensile strength handles dynamic stress. Secure facade mounting prevents accidents.

Commercial Multi-Unit Projects

Large HVAC projects need standardized solutions. Custom brackets slow installation and inflate costs.

Our universal design speeds up deployment across multiple units. Contractors report 30% faster installation times. Consistent quality reduces callback service visits.

Industrial Facilities

Factories and warehouses often have corrosive atmospheres. Chemical exposure accelerates metal degradation.

Galvanized protection maintains integrity in harsh conditions. Your climate control system stays operational without maintenance interruptions.

Cost Savings That Improve Your Bottom Line

Compare lifecycle costs, not just purchase prices.

Standard painted bracket: Needs replacement every 2-3 years. Add labor costs for removal and reinstallation. Factor in potential unit damage from bracket failure.

Our galvanized bracket: Lasts 10+ years with zero maintenance. One installation serves the entire equipment lifespan.

You also benefit from:

· Factory-direct pricing (20-30% below trader rates)

· Zero MOQ for prototype development

· Bulk order discounts for large projects

· Faster lead times through optimized production

Customization Options for Unique Requirements

Every building presents different challenges. We offer OEM/ODM services to match your exact needs.

Customization possibilities:

· Modified dimensions for specific unit sizes

· Additional mounting points for seismic zones

· Powder coating over galvanization for color matching

· Specialized designs for unconventional facades

Our engineering team provides free DFM (Design for Manufacturability) analysis. We optimize your design for production efficiency and cost savings.

Send us your CAD files in STEP, IGES, or X_T format. You'll receive detailed feedback within 48 hours.

Quality Certifications and Testing

We maintain ISO 9001:2015 certification for quality management. Our production processes follow international standards.

Testing protocols include:

· CMM dimensional verification

· Salt spray chamber testing (ASTM B117)

· Load stress testing at 3x rated capacity

· Coating thickness measurement

· Material composition analysis

Full documentation accompanies every shipment. You receive material certificates, inspection reports, and installation guidelines.

Frequently Asked Questions

Q: What's the difference between hot-dip and electro-galvanization?

Hot-dip galvanization provides thicker zinc coating (60-85 microns versus 20 microns). This means significantly longer corrosion protection. For outdoor applications, hot-dip is the superior choice. All our standard brackets use hot-dip process.

Q: Can these brackets support newer high-efficiency units?

Yes. Modern VRF and VRV systems often weigh more than traditional units. Our brackets support up to 300kg load capacity. We design with safety factors exceeding engineering requirements. Even oversized commercial condensers mount securely.

Q: How do I know which size bracket I need?

Measure your condenser unit's width and depth. Check the manufacturer's recommended support points. Contact us with these dimensions and unit weight. We'll recommend the appropriate bracket configuration. Our adjustable designs typically fit without custom fabrication.

Q: What's your typical production timeline?

Prototype orders ship in 1-2 weeks. Mass production orders take 4-7 weeks depending on quantity. Urgent orders receive priority scheduling. We ship 70% of rush orders on time. Contact us for expedited service availability.

Q: Do you provide installation instructions?

Every shipment includes detailed mounting guidelines. We specify required hardware, installation torque values, and safety procedures. Technical support is available if you encounter questions during installation.

Q: Can these brackets be used in earthquake-prone areas?

Our standard design includes safety factors that handle normal seismic activity. For high-risk zones, we offer reinforced versions with additional bracing. Consult your local building codes for specific requirements. We can modify designs to meet seismic specifications.

Q: What shipping options do you offer?

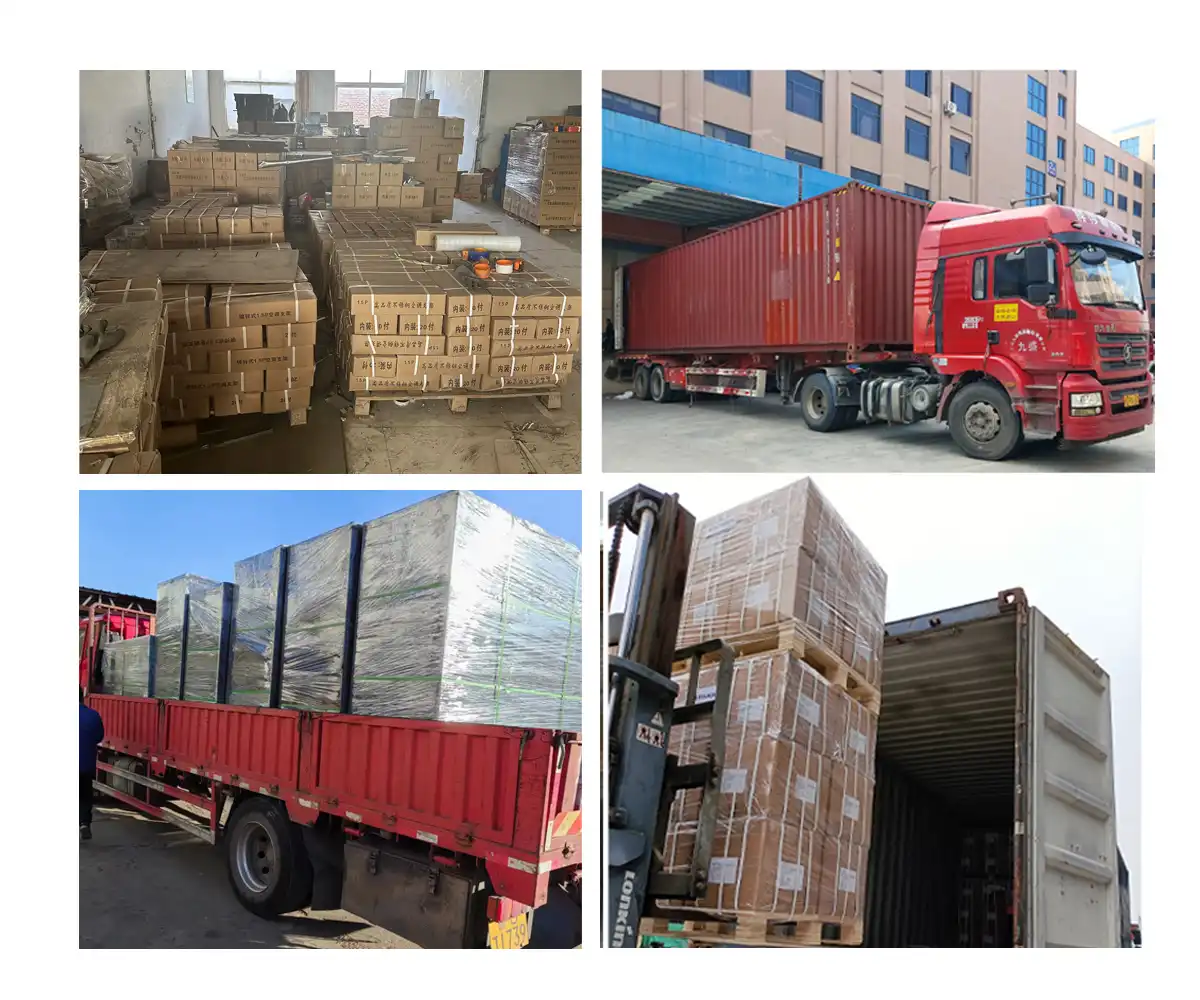

We provide EXW, FOB, and DDP terms depending on your preference. Our location near Qingdao Port enables efficient container shipping worldwide. We handle export documentation and packaging to prevent transit damage.

Partner With a Manufacturer That Delivers

You need reliable equipment supports that perform year after year. Compromising on bracket quality risks expensive failures and safety hazards.

Qingdao RuiRui Machinery Manufacturing combines 17 years of fabrication expertise with modern CNC precision. We manufacture the product contractors and building managers trust.

Factory-direct pricing eliminates middleman markups. Strict quality control ensures consistent performance. One-stop production capability means faster delivery.

Contact Us Today

Ready to specify superior mounting solutions for your next project? Get your custom General air conditioning galvanized external unit bracket quote now at kshdhardware@qdkshd.com and experience manufacturing excellence.
