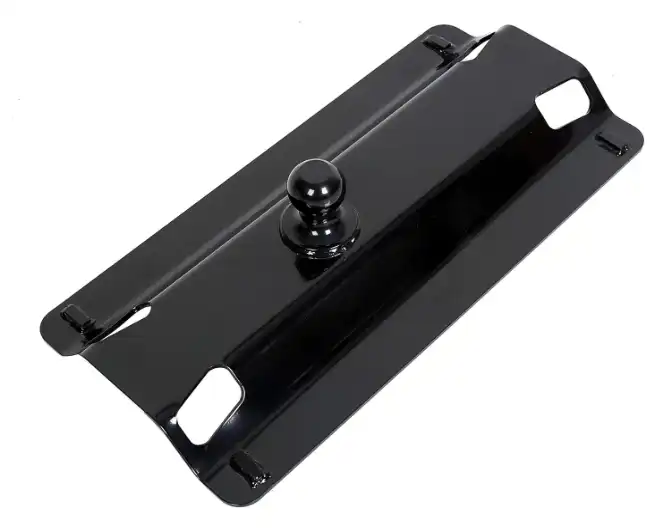

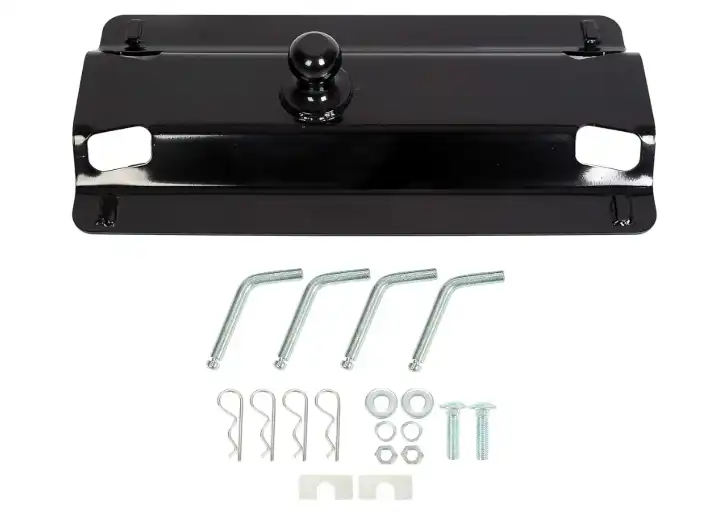

Gooseneck Hitch Ball Plate

Professional Grade Gooseneck Hitch Ball Plate from Ruirui Factory

Qingdao Ruirui Machinery Manufacturing Co., Ltd. delivers factory-direct Gooseneck Hitch Ball Plate solutions engineered for extreme towing demands. As a steel manufacture pro since 2008, Ruirui fabricates high-tensile steel hitch components with Net Trailer Weight (GTW) appraisals up to 30,000-35,000 lbs and Vertical Stack capacities coming to 7,500 lbs. Our fabricating office keeps up ISO9001:2015 certification with 20+ CNC machining centers guaranteeing ±0.005mm exactness tolerances.

With a least arrange amount of 1000 pieces and conveyance timelines of 20-40 days, we give cost-effective bulk arrangements for wholesalers and armada administrators. Factory-direct estimating disposes of agent markups whereas our one-stop generation capability—from crude fabric obtainment to powder coating—guarantees reliable quality control over each batch.

---

What Makes a Superior Gooseneck Hitch Ball Plate?

The products serves as the critical structural interface between your truck bed and gooseneck trailer system. Unlike conventional bumper hitches, this component mounts directly over the rear axle in the truck bed center.

This strategic positioning creates a high-center-of-gravity connection point. The design directly transfers immense vertical and longitudinal forces—often exceeding 30,000 lbs—into your vehicle's chassis rails.

The configuration addresses two primary pain points in heavy towing. First, it eliminates structural deflection that plagues weaker mounting systems. Second, it dramatically reduces towing instability during highway speeds and sharp maneuvers.

Premium models feature turnover or fold-down mechanisms. When not in use, the ball assembly retracts flush with the truck bed surface. This intelligent design preserves full bed utility while maintaining immediate deployment capability.

The plate essentially functions as your foundational load-bearing anchor. It safely distributes trailer weight through your truck's suspension system without compromising frame integrity or safety ratings.

Technical Specifications & Parameters

Parameter	Specification
Brand	Ruirui
Manufacturer Type	Factory Direct
Base Material	High-Tensile Low-Alloy (HSLA) Steel
Plate Thickness	3/8" to 1" (9.5mm to 25.4mm)
GTW Rating	30,000 - 35,000 lbs
Vertical Load Capacity	7,500 - 8,750 lbs
Ball Socket Tolerance	±0.005" (±0.127mm)
Surface Treatment	E-coat Base + Carbide Black Powder Coating
Corrosion Resistance	ASTM B117 Salt Spray (500-1000 hours)
Fatigue Testing	SAE J2638 Compliant (300,000+ cycles)
MOQ	1,000 pieces
Lead Time	20-40 days
Quality Certification	ISO9001:2015

Core Applications Across Industries

Agricultural Livestock Transport

Multi-axle livestock trailers require exceptional maneuverability across unpredictable terrain. The product enables turn radiuses exceeding 90 degrees.

This capability proves essential when navigating narrow farm gates. Cattle ranchers benefit from superior pivot control on uneven pasture surfaces where standard receiver hitches would bind or fail.

Heavy Industrial Construction

Flatbed trailers hauling skid steers and mini-excavators generate extreme vertical shock loads. Your hitch plate must endure equipment loading and unloading without chassis deformation.

Construction fleet managers depend on these components for transporting heavy raw materials. The direct frame connection prevents structural fatigue that compromises safety during daily operation.

Recreational Large-Scale Towing

Massive 5th-wheel RVs utilizing gooseneck connectors require uncommon steadiness at thruway speeds. The forward turn point situation diminishes trailer influence significantly.

Toy hauler devotees pick up prevalent streamlined control compared to rear-mounted collector hitches. This setup makes strides braking reaction and decreases driver weariness amid long-distance travel.

---

Advanced Fabricating & Quality Control

Precision Creation Process

Our CNC machining centers keep up dimensional exactness inside ±0.005mm resiliences. This accuracy kills "ball slop" that causes untimely wear and potential separation risks.

We utilize Ultrasonic Testing (UT) and Attractive Molecule Review (MPI) on all auxiliary weldments. These conventions identify subsurface porosity some time recently components enter generation lines.

Rigorous Testing Standards

Every batch undergoes SAE J2638 compliance validation. Your hitch plates withstand 300,000+ fatigue cycles across longitudinal, lateral, and vertical axes.

This testing simulates years of real-world abuse under maximum load conditions. Coordinate Measuring Machine (CMM) verification confirms ball socket diameter accuracy and locking pin alignment.

Surface Protection Technology

Our dual-stage finishing process begins with electrophoretic coating (E-coat). This base layer penetrates microscopic surface irregularities for superior adhesion.

The final carbide black powder coating resists road salt and abrasive wear. ASTM B117 salt spray testing validates corrosion resistance exceeding 500-1000 hours without red rust formation.

100% Inspection Protocol

Gooseneck Hitch Ball Plate First Article Inspection (FAI) validates initial production samples. Batch sampling follows AQL standards throughout manufacturing runs.

You receive full dimensional reports with material certifications. Our quality documentation supports your compliance requirements for commercial fleet operations.

Why Fleet Managers Choose Ruirui Manufacturing

Factory-Direct Cost Advantages

Eliminate middleman markups with our source manufacturer pricing. You gain 20-30% cost savings compared to distributor networks.

Our one-stop production capability reduces lead times by 15%. From raw material procurement through export-ready packaging, we control every quality touchpoint.

Proven OEM/ODM Expertise

Our dedicated engineering team provides design-for-manufacturability (DFM) consultation. We optimize your custom specifications before production begins.

With 17+ years serving automotive and industrial sectors, we understand your regulatory requirements. All products include material test certificates (MTC) and compliance documentation.

Flexible Production Capacity

Our 3-shift operation maintains 24/7 manufacturing capability. This ensures 70% of urgent orders ship within committed timelines.

While standard MOQ remains 1,000 pieces, we accommodate prototype development for qualified partners. Zero-MOQ testing validates your specifications before bulk commitments.

Strategic Location Benefits

Situated near Qingdao Port, we offer competitive EXW, FOB, and DDP shipping terms. Our logistics network ensures reliable international delivery coordination.

The convenient transportation infrastructure reduces your freight costs. You benefit from China's manufacturing ecosystem while maintaining quality oversight.

---

FAQ

Q: What distinguishes rail-mounted kits from fabrication plates?

A：Rail-mounted kits bolt directly to vehicle-specific frame holes without welding. These preserve your truck warranty while ensuring proper load distribution. Raw fabrication plates require certified welding for custom flatbed applications but offer greater flexibility for specialized builds.

Q: How do I prevent my hitch ball from seizing inside the plate?

A：Apply white lithium grease regularly to the ball shank and socket interface. Use a protective rubber cover when not towing. Micro-corrosion and dirt accumulation cause freeze-up in tight-tolerance cylinders.

Q: Can this plate accommodate 5th-wheel trailer connections?

A：The standard product requires a companion slider or adapter for 5th-wheel compatibility. Verify your plate's Vertical Load rating supports the 5th-wheel pin weight before conversion.

Q: Why does SAE J2638 certification matter for my operation?

A：SAE J2638 provides empirical proof of load ratings through dynamic fatigue testing. Non-certified plates offer only theoretical capacities, creating significant liability exposure in commercial towing operations.

Q: Should I weld or bolt the plate to my truck frame?

A：Modern high-tensile bolt-on designs often exceed frame strength specifications. Welding can compromise hydroformed steel frames if heat treatment isn't properly managed. Bolt-on installations are generally preferred for OEM truck beds.

Contact Us

Ready to secure Gooseneck Hitch Ball Plate reliable towing components for your fleet or distribution network? Our engineering team provides technical consultation and custom quotations within 48 hours.
