The Essential Guide to U-Bolts: Types, Materials, and Applications

The U-bolt is one of the most useful and reliable fasteners when it comes to holding lines in place, stabilising structure parts, or anchoring heavy machinery. Professionals in purchasing, engineering, and distribution can learn everything they need to know about these important binding solutions from this blog. We've put together useful information that helps global B2B clients make smart buying decisions. This includes learning about the different setups and materials available, as well as the best ways to choose and install them. This guide helps you choose fasteners that work well, last a long time, and are a good value for money in a wide range of challenging situations, whether you're looking for parts for city building projects, making cars, or putting together industrial equipment.

Understanding U-Bolts: Types, Uses, and Design Specifications

What Defines a U-Shaped Fastener

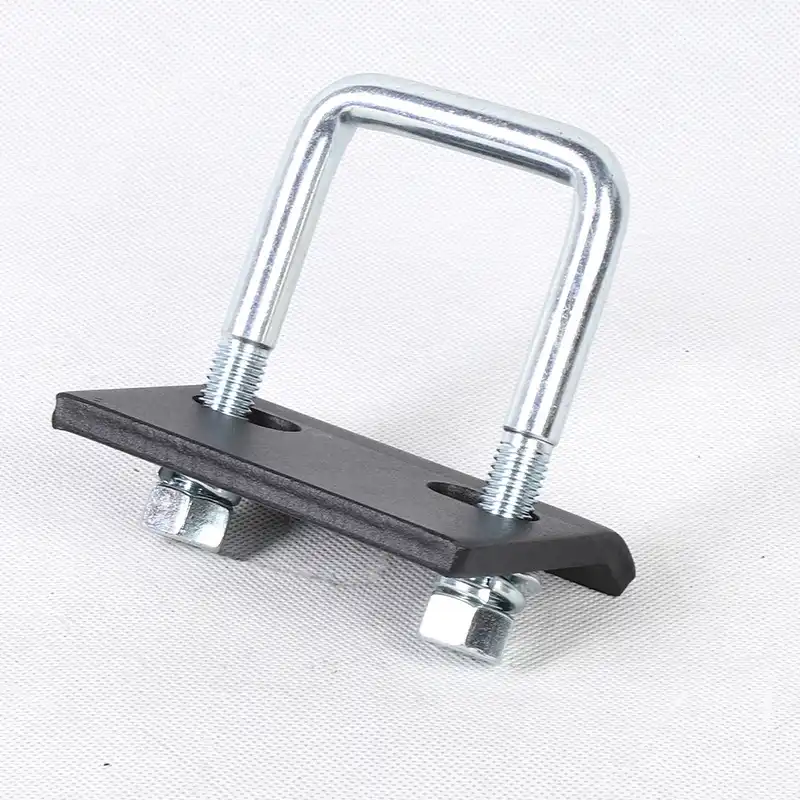

A U-shaped fastener is an industrial part that looks like the letter "U" and has arms with threads that stick out from a bent base. Standard hex bolts only connect at one point, but this design goes around cylindrical objects like pipes, ducts, and round bars, giving you full support around all sides when you pair it with backing plates or saddles. In fields where shaking, thermal expansion, and dynamic loads can damage connections, this design solves important problems. The legs with two threads spread the clamping force out equally. This keeps thin-walled tubes from being damaged by point-loading and keeps connections strong even when they are under a lot of mechanical stress.

Common Industrial Applications

These fasteners serve vital roles across multiple sectors. In building, they hold beams and walls in place for plumbing systems, HVAC pipes, and structural supports. Engineers in the auto industry use them to keep leaf springs and exhaust systems in place, where resistance to shaking is very important. For marine uses, like attaching railings and tools that will be in saltwater, corrosion-resistant models are needed. Heavy-duty versions are used in agricultural equipment to keep tools and hydraulic lines stable even when they are moving all the time and being exposed to the elements. They are used in process plumbing systems in factories, where they keep the temperature from rising too much and make sure the pipes are securely anchored to avoid costly failures.

Standard Shapes and Configurations

Three main base forms are made by manufacturers to fit a variety of mounting situations, including U-bolt designs. Round-bend designs work with standard pipe sizes and cylindrical items because they apply the same amount of clamping pressure all the way around. When building something square, it works best with rectangular tube, channel supports, and flat-surfaced structural parts. There are stair-step or multi-radius models for uses that need to mount them off-center or with non-standard space between the threaded legs. Each configuration comes in a range of sizes, from small tubes to big industrial lines. The thread sizes are the same as normal nuts so they can be used with current hardware.

Distinguishing Features from Related Fasteners

Even though J-shaped nuts and pipe clamps do similar things, it's important to know the differences between them when describing parts. J-shaped options offer a single-leg anchoring into concrete or brickwork, which works well when lasting embedment is possible but lacks the wrap-around stability needed for installs that are likely to shake. Split-band designs on pipe clamps let you install them without messing up current assemblies. However, they usually don't work as well as through-bolted connections. U-bolt fasteners are the best choice for important connections that are subject to dynamic forces or thermal cycles because they distribute load better and don't come loose when rotated.

Material and Grade Classifications

The choice of material has a direct effect on how long something lasts and how reliably it works. Carbon steel types offer affordable strength that is good for indoor uses with little chance of rusting. Hot-dip galvanised steel has a thick zinc coating that protects against rust and makes it last longer in outdoor and fairly corrosive settings. There are choices that are electrogalvanized that mix resistance to corrosion with exact dimensional standards. These are great for uses that need a perfect fit and some environmental protection. Stainless steel types offer the best protection to corrosion for marine, chemical processing, and food-grade systems that need a material that is pure and will last a long time. Grade standards, like ASTM A307 or SAE J429. List the tensile strength and material make-up of a part, making sure it meets the structural needs for a certain load situation.

How to Measure and Select the Right U-Bolt for Your Needs

Accurate Dimensional Measurement

Three important factors that determine fit and function are the first steps in finding the right size. Inside width is the distance between the threaded legs' inner edges, which must be just big enough to fit the pipe diameter or attached item with no extra space. To find the leg length, add the object's diameter, the width of the backing plate, the height of the nut, and at least three visible thread pitches for safe fastening. The leg length goes from the base curve to the thread termination point. The thread size and pitch must match the nuts that are accessible and meet the load requirements shown on engineering plans. When measuring current installations, callipers give accurate measurements for the inside width, and thread gauges make sure that the pitch standards are met so that hardware doesn't get mixed up.

Essential Selection Criteria

Which U-bolt setup is best for your purpose depends on a number of factors. When figuring out a load's capacity, the steady weight is added to the dynamic forces that come from things like vibration, thermal expansion, and practical pressures. Material choices are based on how they will be exposed to the environment. For example, marine-grade stainless steel is needed for installations near the coast, while carbon steel with protective coats may be okay for installations inside. Mechanical stress patterns affect the length of thread engagement needed. This is because repeated loading cycles need longer thread engagement and better materials to avoid wear failures. Depending on how easy it is to install, normal hex nuts may be enough or special lock nuts and backing plates may be needed to make sure the right amount of force is applied and the system stays stable over time.

Material Performance Comparison

When deciding between stainless steel and galvanised choices for a U-bolt, you have to think about how well they work and how much they cost. 304 and 316 types of stainless steel don't rust because they contain chromium, which forms a protective oxide layer. This layer keeps the steel's integrity in harsh chemical and saltwater conditions without destroying the surface coating. These high-quality materials are about 2.5 to 4 times more expensive than carbon steel options, but they don't need to be maintained or replaced as often in places where they are acidic. Electrogalvanized steel is a medium ground. The zinc electroplating gives it enough protection for outdoor uses that are shaded, but it costs about 1.5 times as much as bare steel. The coating is usually between 0.0002 and 0.0005 inches thick, which is thick enough for 5 to 10 years of work in fairly harsh conditions with regular checks and touch-ups.

Immersion processing gives hot-dip galvanised versions a thicker zinc coating, which makes the protection layers thicker and increases the service life compared to electrogalvanized versions in outdoor structure uses. Cost fees depend on how difficult the material is to work with and how long the coating lasts. Buying decisions are based on matching the initial investment with the costs of replacement and upkeep over time. Industries that know when to replace things can get the best total cost of ownership by choosing materials strategically so that they are replaced at the right time.

Real-World Selection Examples

When car companies need to describe suspension parts, they usually choose SAE J429 Grade 5 U-shaped bolts with a minimum tensile strength of 120,000 psi to handle dynamic shock loads that happen while the car is running. For marine dock building projects, forms of 316 stainless steel that contain molybdenum are needed to prevent chloride-induced pitting corrosion in saltwater soaking. Electrogalvanized carbon steel fasteners with a 50-year design life when kept out of direct sunlight are often used in industrial HVAC systems. These fasteners balance corrosion resistance with cost-effectiveness on big projects with hundreds of connection points.

Installation and Maintenance Guide for U-Bolts

Proper Installation Procedures

For the fitting to go smoothly, the surface must be carefully prepared to make sure that the load is transferred correctly and that rusting doesn't happen. Clean all surfaces that come into touch with each other to get rid of any dirt, rust, scale, or protective coatings that could stop the pressure from being spread evenly or make it harder for the threads to connect. Place backing plates or saddles so that the clamping force is spread out across the fixed object. This keeps stress from building up in one area, which could damage thin-walled lines or make leaky systems. By hand, tighten both nuts onto the fastener legs until they are finger-tight. Make sure the nuts are aligned before applying force to avoid cross-threading, which breaks connections.

Specifications for torque rely on the thread size, the grade of the material, and the needs of the product. Under-tightening lets the threads move and become loose due to vibrations, while too much torque stretches the threads past their elastic limits, deforming them permanently and lowering the gripping force. Fasteners made of Grade 5 carbon steel need between 15 and 280 foot-pounds of power for 1/4-inch threads and 1-inch sizes. Torque wrenches that have been calibrated give the same results on all links. When fastening things with more than one U-bolt, apply torque in a crisscross pattern, gradually tightening to specification instead of finishing one side before moving on to the other. This keeps the objects in the middle of the process.

Common Installation Mistakes

The most common fitting mistake is over-tightening, which creates stress concentrations that speed up fatigue failure and crack onset. Too much force can also crush gaskets beyond what their elastic recovery ability can handle. This makes seal integrity in fluid systems less reliable. When the bolt base and attached object are not lined up correctly, it causes uneven loading that puts most of the stress on one leg. This lowers the effective load capacity by 40 to 60 percent compared to installations that are centred correctly. When you put screws on thin-walled pipes without backing plates, the pipes bend in certain places and eventually crack from stress. If you don't use lock washers or thread-locking solutions in places where vibrations are likely to happen, nuts will come loose over time, which will cause the link to break while it's being used.

Corrosion Prevention Strategies

Protective finishes that are kept up will last a lot longer in outdoor and harsh settings. Check zinc coats on the U-bolt every three months for white rust or signs that the covering is breaking down. If you find any damage, fix it with zinc-rich paint before the corrosion gets to the base metal. Cleaning stainless steel screws on a regular basis is a good way to get rid of surface dirt and other things that can cause crevice rust in wet conditions. When anti-seize chemicals are put on threads during installation, they stop galling and make dismantling easier in the future without hurting the threads or needing destructive removal methods.

Consider supplemental protection measures in extremely corrosive settings. Attaching protective zinc anodes to structure parts slows the corrosion of nearby steel bolts by acting as cathodes. Covers or boots that protect connection points from direct saltwater spray are used in marine settings. The frequency of inspections should meet the intensity of the environment. For example, installations near the coast should be checked every month, while installations inside that are protected should only be checked once a year.

Troubleshooting and Maintenance

Finding wear patterns early on stops catastrophic fails and unnecessary downtime. If you can see rust spots around where the fasteners are, that means there is ongoing corrosion that needs your instant attention. Loose nuts mean that the initial torque wasn't enough or that vibrations caused them to come loose. They need to be retightened to specification and maybe locking hardware needs to be added. If you see cracks at the base radius or thread roots, you need to replace them right away because these stress risers spread quickly when the load is cycled. If the backing plates are deformed, it means that the parts are too big or too small for the job.

Set preventive repair schedules that are in line with how important the process is and how exposed the equipment is to the surroundings. High-stakes connections in pressurised systems or high installations need to be inspected every three months and replaced every year, no matter how good or bad they look. For less important tasks in controlled settings, inspections may be delayed a year at a time, and parts may be replaced based on how much they break down instead of time-based processes. Keeping track of what was found during inspections and repair actions creates data on dependability that helps improve future buying guidelines and installation steps.

Conclusion

To choose the right U-shaped fasteners, such as a U-bolt, you need to know how the material's features, size requirements, surroundings, and application needs affect each other. Professionals in purchasing and engineering can now use this guide to confidently choose parts, including U-bolts, that will work well in a wide range of industry, building, automotive, and infrastructure settings. By focusing on exact measurements, choosing materials that are right for the job, using the right installation methods, and building strategic ties with suppliers, B2B buyers can get the best deal on both the original investment and the costs over the product's lifetime. The fixing options, like U-bolt choices, you pick today will affect how well they work and how much upkeep they need for years to come. This is why making smart purchasing decisions, including for U-bolts, is so important for project success and long-term value creation.

FAQ

1. What factors most significantly affect corrosion resistance in U-shaped fasteners?

The basic corrosion protection of a material depends on its makeup. Stainless steel alloys work better than carbon steel options. The type and thickness of the coating add to the safety. For example, hot-dip galvanising creates thicker zinc layers than electrogalvanizing, which makes it last longer in harsh settings. The amount of saltwater interaction, chemicals present, and wetness in the environment all speed up the degradation process. No matter what base material you choose, regular upkeep, protective treatments, and proper fitting methods that keep moisture out greatly increase the life of components.

2. How do I decide between U-shaped fasteners and J-shaped alternatives for my application?

When you need to secure a cylinder that needs to be supported in all directions and not be able to rotate, choose a U-shaped design. Their dual-leg anchoring keeps them from coming loose in situations with shaking, temperature changing, or moving loads. Choose J-shaped screws when they can be permanently embedded into concrete or brickwork and the job only requires static loads that don't need to be rotated a lot. J-shaped choices are good for anchoring structures, but they don't have the wrap-around stability needed for fixing tools and supporting pipes that are under a lot of stress.

3. Can manufacturers provide custom sizing for non-standard applications?

Reliable makers can make changes to custom measurements like inside width, leg length, thread specs, and base radius. Depending on how complicated the tooling is, the minimum order quantity for unique setups is usually between 1,000 and 5,000 pieces. During the quotation process, you should send thorough engineering sketches with allowed size ranges and material needs. Suppliers with their own engineering teams can offer design improvements that make it easier to make the product while still meeting your performance needs. This can often lower costs and lead times compared to strictly following the original specs without any technical input.

Source Premium Electrogalvanized U-Bolt Solutions from a Trusted Manufacturer

RUIRUI specializes in manufacturing high-performance electrogalvanized U-shaped fasteners engineered for demanding industrial applications. Our Qingdao facility combines advanced bending technology with precision threading processes, producing components that meet ISO 9001 and ISO 14001 standards for quality and environmental management. We offer complete customization—specify your exact inside width, leg length, thread type, and coating thickness to match application requirements perfectly. Our electrogalvanized finish delivers excellent corrosion resistance lasting up to 10 years, with load capacities reaching 20 tons suitable for construction, automotive, agricultural equipment, and heavy machinery installations. With a minimum order quantity of 1,000 pieces and competitive factory-direct pricing, we serve global distributors, infrastructure contractors, and OEM manufacturers seeking reliable U-bolt suppliers who deliver consistent quality and on-time container-level shipments. Contact our engineering team at kshdhardware@qdkshd.com to discuss your specifications, request samples, or receive detailed quotations with lead time estimates tailored to your project schedule.

References

1. American Society for Testing and Materials. (2021). "ASTM A307: Standard Specification for Carbon Steel Bolts, Studs, and Threaded Rod." ASTM International, West Conshohocken, PA.

2. Industrial Fasteners Institute. (2020). "Fastener Standards Manual: Dimensional and Mechanical Requirements for Industrial Fastening Applications." Cleveland, OH: IFI Publications.

3. Society of Automotive Engineers. (2019). "SAE J429: Mechanical and Material Requirements for Externally Threaded Fasteners." Warrendale, PA: SAE International.

4. Bickford, John H. (2018). "Introduction to the Design and Behavior of Bolted Joints: Non-Gasketed Joints." CRC Press, Boca Raton, FL.

5. European Committee for Standardization. (2020). "EN ISO 3506: Mechanical Properties of Corrosion-Resistant Stainless Steel Fasteners." Brussels: CEN Publications.

6. National Association of Corrosion Engineers. (2019). "Corrosion Control in Fastener Applications: Material Selection and Protective Coatings for Extended Service Life." Houston, TX: NACE International Press.
