Air conditioner holder bracket

Industrial-Grade Air Conditioner Holder Bracket from Qingdao

Qingdao Ruirui Machinery Manufacturing Co., Ltd. delivers enterprise-grade air conditioner holder bracket solutions engineered for commercial and residential HVAC installations. Originating from Qingdao, China, our brackets feature customizable sizing (standard or tailored dimensions) with a minimum order quantity of 1000 pcs.

Made utilizing high-precision CNC machining with resiliences as tight as ±0.005mm, our items bolster stack capacities from 150kg to 180kg+, pleasing AC units extending from 9,000 to 36,000 BTU. Built from cold-rolled steel (SPCC 2.0-2.5mm thickness) or stainless steel (304/316 review), each bracket experiences hot-dip galvanization and passes 500+ hours salt shower testing (ASTM B117).

Available in royal and metric estimation frameworks, Ruirui's one-stop fabricating guarantees ISO 9001:2015 certified quality from crude fabric acquirement through last inspection.

What Makes Our Air Conditioner Holder Bracket Different?

Source Factory Advantages

When you partner with Ruirui, you eliminate middlemen costs. Our factory-direct pricing delivers 20-30% savings compared to trading companies.

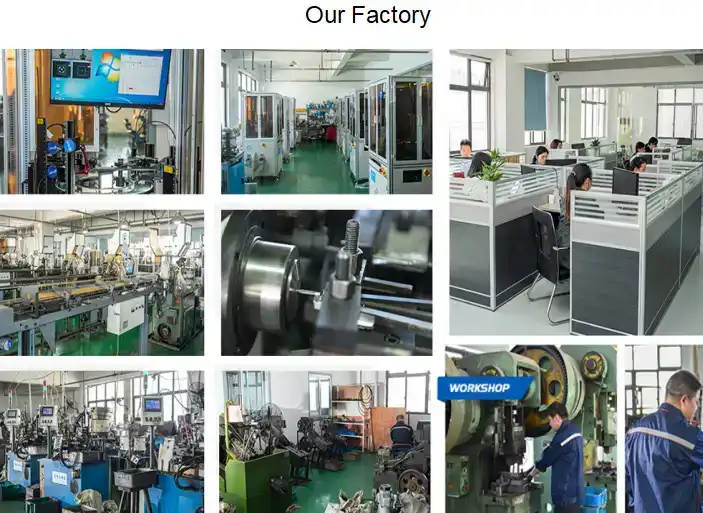

We control the entire production chain. From steel sheet selection to powder coating application, every step happens under our roof.

This vertical integration means faster turnaround times. Prototype orders ship within 1-2 weeks, while bulk production completes in 4-7 weeks.

Engineering That Withstands Real-World Stress

Your outdoor AC units face constant challenges. Compressor vibrations run 24/7 during summer months. Temperature swings cause metal expansion and contraction. Coastal humidity accelerates corrosion.

Our product addresses these issues through three core design principles:

Material Selection:Cold-rolled steel (SPCC) provides optimal strength-to-weight ratio for standard applications. For marine environments within 5km of coastlines, we recommend stainless steel 316 grade.

Structural Integrity:Each bracket maintains a safety factor of 3:1. This means a 150kg-rated bracket successfully bears 450kg in destructive load testing.

Vibration Dampening:Integrated rubber isolators decouple the ODU from wall structures. This reduces noise transmission through building frames by up to 40%.

Customization Meets Scalability

Standard bracket dimensions fit 80% of split-system air conditioners. However, you may need adjusted arm lengths for specific installation scenarios.

Our in-house R&D group gives DFM (design-for-manufacturability) examination at no fetched. Send your CAD records in STEP, IGES, or X_T arrange to get optimization recommendations inside 48 hours.

Whether you require 1,000 units with minor changes or a totally custom geometry, our 20+ CNC machines handle both scenarios effectively.

Technical Specifications

Parameter	Standard Option	Premium Option
Material	Cold Rolled Steel (SPCC)	Stainless Steel 304/316
Thickness	2.0mm	2.5mm
Load Capacity	150kg (330 lbs)	180kg+ (400 lbs)
BTU Range	9,000-24,000	18,000-36,000
Surface Treatment	Electro-galvanization + Powder Coating	Hot-dip Galvanization + UV-resistant Coating
Salt Spray Test	200 hours (ASTM B117)	700+ hours (ASTM B117)
Safety Factor	3:1	3:1
Vibration Isolators	Optional	Included
Coating Thickness	60-80 microns	100+ microns
Installation Type	Wall-mount / Ground-mount	Wall-mount / Roof-mount
Measurement Systems	Imperial, Metric	Imperial, Metric
MOQ	1000 pcs	1000 pcs
Origin	Qingdao, China	Qingdao, China

Application Scenarios: Where Performance Matters Most

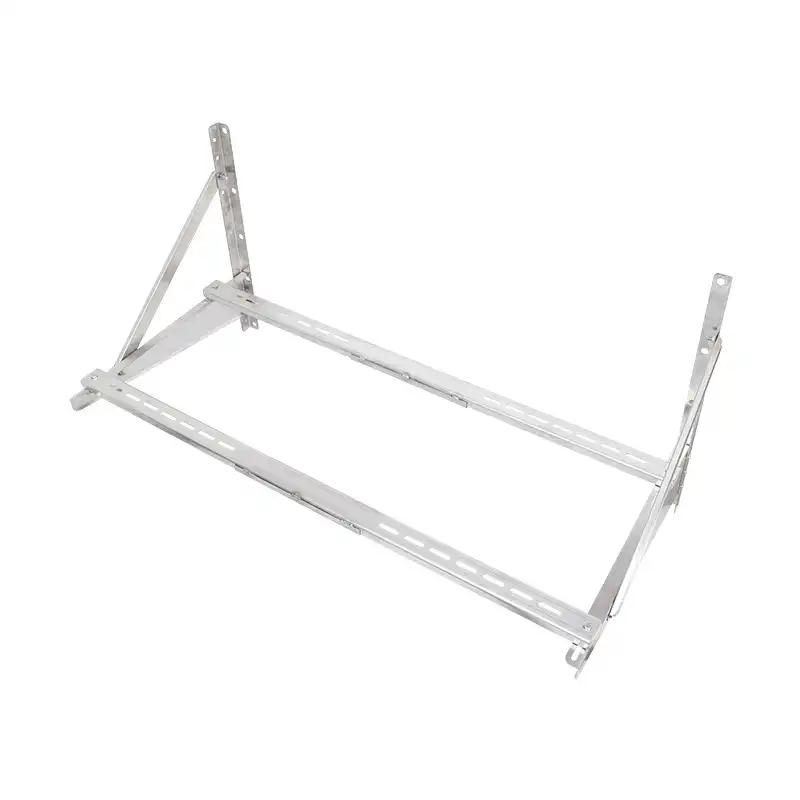

High-Rise Residential Buildings

Installing AC units on apartment building facades presents unique challenges. You need brackets that withstand blind installation conditions while supporting units 10+ stories above ground.

Our wall-mounted brackets feature extended cantilever designs. The pull-out strength exceeds industry minimums by 40%, ensuring anchors hold firm in concrete or brick substrates.

Anti-vibration pads come standard. This prevents neighbor noise complaints—a common issue in multi-unit dwellings where structure-borne sound travels through walls.

Coastal Commercial Properties

Hotels and resorts near oceans face accelerated corrosion timelines. Standard galvanized steel shows rust within 18 months in high-salinity environments.

For these applications, we mandate stainless steel 316 construction. This alloy resists galvanic corrosion caused by salt mist exposure.

Your bracket investment lasts 15+ years instead of requiring replacement every 2-3 years. The lifecycle cost savings outweigh the initial material premium.

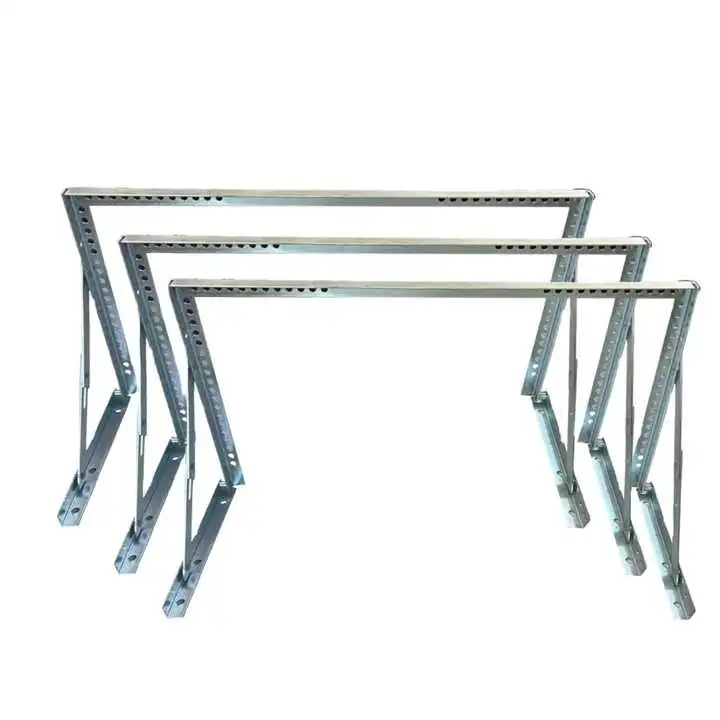

Rooftop VRF Systems

Commercial buildings often house multiple ODUs on flat roofs covered with TPO or EPDM membranes. Penetrating these waterproof layers creates leak risks.

Our low-profile ground-mount brackets use rubber pad feet. These distribute tonnage loads across wider surface areas without puncturing membranes.

The foldable design reduces shipping volumes by 50%. This matters when you're transporting 50+ units to a construction site with limited storage space.

Quality Control: Every Bracket Undergoes Four Critical Tests

Static Load Verification

We apply 3-4 times the rated capacity during destructive testing. A 150kg-rated air conditioner holder bracket must support 600kg without weld failure or permanent deformation.

This test replicates worst-case scenarios—like technicians standing on units during maintenance or unexpected snow loads in northern climates.

Salt Spray Chamber Testing

Samples spend 200-700+ hours in mist chambers (depending on grade). This accelerates years of outdoor exposure into weeks of lab testing.

We inspect for red rust penetration. Premium brackets show zero corrosion breakthrough even after 700 hours, confirming the coating system's integrity.

Coating Adhesion Analysis

Using the cross-cut tape test (ISO 2409), technicians score the powder coating in a grid pattern. Adhesive tape application reveals whether coatings peel from the substrate.

Failure here leads to under-film corrosion—invisible rust that weakens brackets from the inside out. Our batches consistently achieve the highest adhesion ratings.

Dimensional Precision Checks

CNC machining delivers ±0.01mm tolerances on critical dimensions. Bolt hole alignment must be perfect—misaligned holes cause onsite installation delays.

We verify steel thickness at multiple points. Even 0.2mm variations compromise load ratings, so our quality team rejects non-conforming material before processing.

Why Global HVAC Contractors Choose Ruirui

Proven Track Record

Since 2008, we've supplied brackets for residential complexes, industrial facilities, and marine applications across 40+ countries. Our Qingdao location near the port reduces shipping times to North America and Europe.

Cost-Effective Excellence

Factory-direct pricing eliminates trader markups. You receive the same quality brackets at 20-30% lower costs than competitors sourcing through intermediaries.

Bulk orders benefit from economies of scale. We optimize production runs to balance your budget requirements with our manufacturing efficiency.

Engineering Support Included

Our R&D team doesn't just manufacture to spec—we improve your designs. Common optimizations include:

· Repositioning reinforcement ribs for better load distribution

· Adjusting arm lengths to improve airflow behind ODUs

· Selecting alternative materials for specific environmental conditions

This consultative approach prevents costly redesigns after initial production runs.

Packaging & Logistics

Each bracket receives individual protective wrapping to prevent scratches during transit. We use reinforced cardboard cartons with EPE foam inserts for shock absorption.

Standard packaging accommodates foldable designs, reducing container space by 50%. This lowers your per-unit freight costs significantly.

We support EXW, FOB, and DDP shipping terms. Our logistics team coordinates with freight forwarders to ensure timely delivery whether you're in Los Angeles, London, or Lagos.

​​​​​​​FAQ

Q: How do I select the correct size for my specific AC unit?

A: Match three factors—your ODU's mounting hole spacing (foot distance), total weight, and depth. The bracket's arm length should exceed unit depth by 2+ inches for proper airflow. Always choose a load rating 150% above your unit's weight.

Q: Why do some brackets rust within the first year?

A: This indicates inadequate surface treatment. Low-quality brackets skip phosphating stages or apply powder coatings thinner than 60 microns. Upgrade to hot-dip galvanized or stainless steel options if you're in humid regions.

Q: Can these brackets reduce compressor noise?

A: The metal structure itself doesn't dampen sound, but high-quality kits include rubber vibration isolators. These isomounts decouple ODU vibrations from wall structures, cutting transmitted noise by 40%+.

Q: Is the crossbar component necessary?

A: While not required for structural support, crossbars ensure arms remain parallel during installation. This prevents misalignment issues that cause uneven load distribution and potential bracket failure over time.

Q: What's the difference between plastic and metal brackets?

A: Plastic (polypropylene) won't rust but becomes brittle after 5-10 years of UV exposure. Metal brackets offer superior long-term load reliability if properly coated. For commercial applications, metal is the industry-standard choice.

Q: Do you provide installation hardware?

A: Standard packages include mounting bolts and vibration pads. Anchor bolts for wall attachment are sold separately since substrate types (concrete, brick, wood) require different fastener specifications.

Q: What's your lead time for customized orders?

A: After DFM approval, prototype samples ship in 7-10 days. Full production runs of 1,000+ units complete within 4-6 weeks, including quality testing and packaging.

Contact Us

Ready to upgrade your Air conditioner holder bracket HVAC mounting solutions? Contact our engineering team for free DFM analysis and competitive pricing. Email us at kshdhardware@qdkshd.com with your project specifications.
