Mounting metal brackets

Professional Mounting Metal Brackets from Ruirui Machinery

Mounting metal brackets manufactured by Qingdao Ruirui Machinery represent precision-engineered structural solutions combining 17+ years of OEM/ODM expertise. Originating from Qingdao, China—a strategic coastal manufacturing hub—our stainless steel brackets deliver exceptional strength and waterproof performance for critical applications.

Ruirui's enterprise-grade capabilities incorporate tight resistance control of ±0.005mm through 20+ CNC machines and multi-axis handling centers. Our factory-direct demonstrate dispenses with middle people, diminishing costs by 20-30% whereas keeping up ISO 9001:2015 certified quality measures. Each bracket experiences thorough dimensional review and salt shower testing surpassing 500 hours for ruddy rust resistance.

With coordinates generation from fabric obtainment to wrapping up, we acknowledge full OEM/ODM customization. Our one-stop benefit guarantees your brackets meet correct load-bearing details whereas keeping up ideal strength-to-weight ratios.

What Are Mounting Metal Brackets?

These components serve as critical mechanical interfaces between loads and supporting structures in complex assemblies. Unlike generic fasteners, they feature geometric complexity tailored for specific spatial constraints.

The products solve key industrial challenges:

· Structural instability from vibration fatigue

· Galvanic corrosion in dissimilar metal joints

· Installation misalignment due to poor tolerances

Our brackets integrate advanced features like self-clinching fasteners and anti-rotation tabs. These design elements streamline your assembly processes significantly.

High-precision manufacturing processes define our approach. We utilize progressive die stamping, laser cutting, CNC bending, and casting technologies. This versatility ensures optimal solutions for your unique application requirements.

Technical Specifications & Material Properties

Understanding material parameters helps you select the right bracket for demanding environments. Our manufacturing capabilities support diverse substrate options.

Parameter	Specification	Standard
Primary Material	Stainless Steel 304/316	ASTM A240
Alternative Options	Carbon Steel SPCC/SECC, Aluminum 5052/6061	ASTM A1008, ASTM B209
Yield Strength	≥200 MPa (structural steel)	ISO 6892-1
Tolerance Standard	±0.1mm (general), ±0.05mm (precision)	ISO 2768-m
Surface Treatment	Hot-Dip Galvanizing, Powder Coating, Passivation	ASTM B117
Corrosion Resistance	500+ hours salt spray (red rust)	ASTM B117
Work Envelope	Up to 2,000 x 1,000 x 600 mm	CNC capability

Core Mechanical Advantages

Stainless steel substrates give prevalent erosion resistance for open air applications. Carbon steel alternatives offer great ductility and cost-effectiveness for indoor installations.

Aluminum amalgams convey lightweight arrangements with extraordinary warm conductivity. This makes them perfect for hardware cooling applications requiring EMI/RFI shielding.

Our exact twist radii anticipate push breaks amid shaping. This consideration to detail guarantees long-term auxiliary keenness beneath cyclic stacking conditions.

Industrial Applications & Use Cases

Solar Photovoltaic Mounting Systems

Roof hooks and rail mounts demand exceptional durability. These brackets withstand extreme wind uplift loads exceeding 2.4 kPa in coastal installations.

Hot-dip galvanized steel ensures 25+ year service life outdoors. Thermal cycling from -40°C to +85°C requires materials with stable mechanical properties.

Automotive Electronic Control Units

Engine bay environments expose brackets to high-frequency vibrations and temperatures reaching 125°C. Our mounting metal brackets utilize Zinc-Nickel electroplating for superior road salt resistance.

Natural frequency tuning prevents resonance failures. FEA validation confirms stress distribution before production tooling investment.

Heavy Industrial HVAC & Piping

Seismic bracing applications require certified performance in high-shear environments. Our brackets integrate rubber isolators for vibration damping in compressor installations.

Load ratings comply with ASCE 7 seismic design standards. This ensures code compliance for commercial building projects across various seismic zones.

Industrial Machinery & Fixtures

Gearbox housings and hydraulic valve mounts benefit from our tight tolerance capabilities. Multi-axis CNC turning creates complex geometries in single setups.

Swiss-type machining produces long, slender components with L:D ratios up to 20:1. This eliminates secondary operations and reduces your total assembly costs.

Manufacturing Process & Quality Assurance

Our one-stop production capability controls every quality touchpoint. This vertical integration ensures consistent results across prototype and mass production volumes.

Advanced Production Technologies

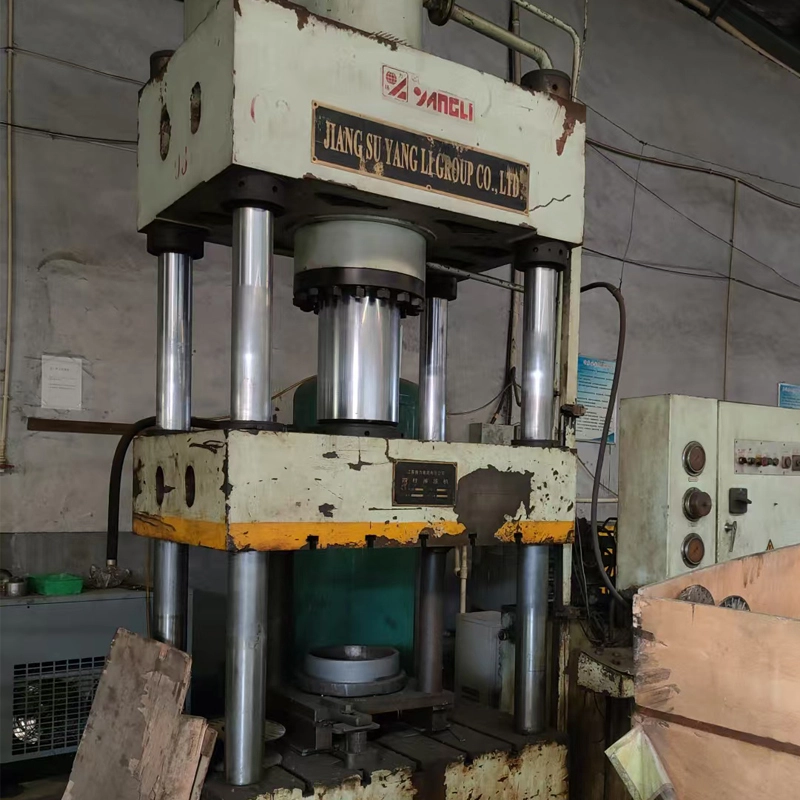

Stamping & Forming:Progressive die stamping handles volumes exceeding 10,000 units economically. Initial tooling costs amortize rapidly through lower per-unit pricing.

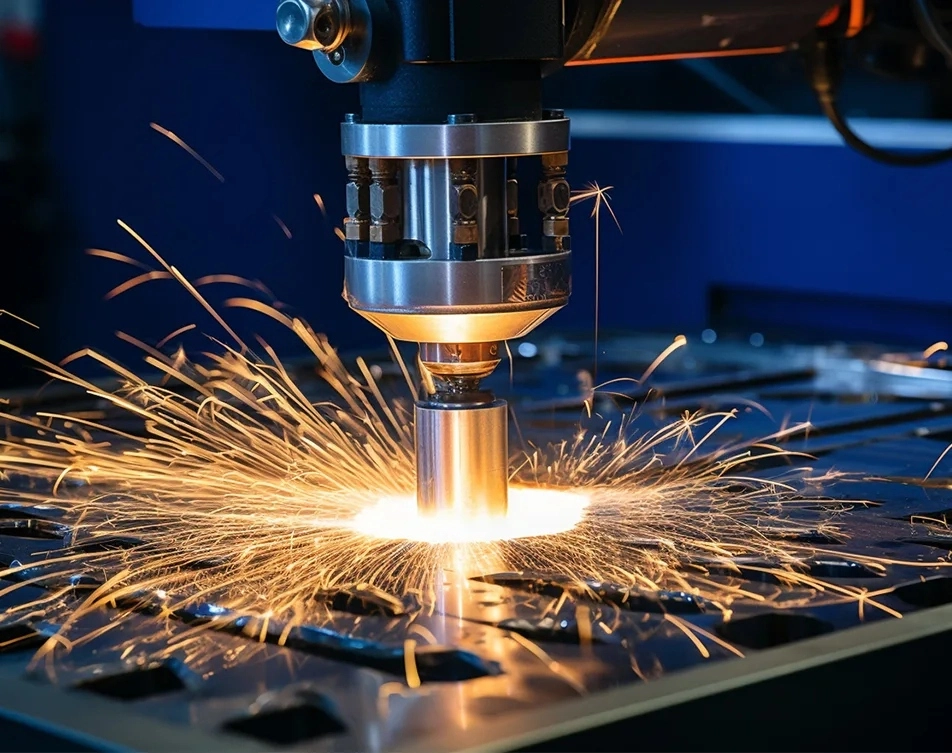

Laser Cutting:For quantities under 1,000 units, our fiber laser systems eliminate tooling investment. This approach reduces lead times for custom bracket development.

CNC Machining:3/4/5-axis milling centers produce complex geometries with ±0.005mm tolerances. Swiss-type lathes handle precision turning for cylindrical features.

Comprehensive Quality Control

Material Verification:X-ray fluorescence spectrometry confirms substrate composition. This prevents costly material substitutions affecting corrosion resistance.

Dimensional Inspection:CMM and optical profilometers verify hole positions and bend angles. We document full dimensional reports for critical automotive and aerospace applications.

Surface Treatment Testing:Salt spray chambers validate coating performance per ASTM B117. Cross-hatch adhesion testing ensures powder coat durability for architectural applications.

Load Testing:Tensile and shear testing on random samples confirms safe working load limits. This data supports your engineering calculations for structural applications.

Customization & OEM/ODM Capabilities

Ruirui's dedicated R&D team provides design-for-manufacturability analysis at no charge. We optimize your bracket designs for cost-effective production.

Design Support Services

Upload CAD files in STEP, IGES, or X_T formats for free DFM review. Our engineers identify potential manufacturing issues before tooling investment.

You'll receive detailed quotes within 48 hours including pricing and lead times. Prototype delivery occurs in 1-2 weeks, with mass production completing in 4-7 weeks.

Flexible Production Options

Zero MOQ policy supports prototype development without volume commitments. This allows thorough testing before scaling to production quantities.

Our 24/7 production capacity with three-shift operations ensures 70% of urgent orders ship on time. This reliability protects your just-in-time assembly schedules.

IP protection through NDAs and secure data rooms safeguards your proprietary designs. Confidentiality remains paramount throughout our partnership.

FAQ

Q：How do I prevent galvanic corrosion when mounting dissimilar metals?

A：Galvanic corrosion occurs when aluminum the products contact steel frames. We recommend Zinc-Nickel plating or dielectric insulating washers to break the electrical path between dissimilar metals.

Q：What tolerances can stamped brackets achieve?

A：ISO 2768-m (medium) applies to general industrial stamping. For precision electronics or automotive applications, we achieve ±0.05mm on critical features through progressive die stamping.

Q：Will these brackets survive high-vibration environments?

A：Yes, when properly designed. We use Finite Element Analysis to identify stress concentrations. Adding stiffening ribs or gussets increases rigidity without additional material thickness or weight.

Q：Which surface finish provides maximum outdoor durability?

A：Hot-Dip Galvanizing offers superior protection for carbon steel substrates. For combined aesthetics and performance, powder coating over zinc-rich primer passes 1000+ hour salt spray tests.

Passivated 316 Stainless Steel provides excellent corrosion resistance without additional coatings. This option suits food processing and pharmaceutical equipment applications.

Q：How do I choose between laser cutting and stamping?

A：Volumes under 1,000 units favor laser cutting and CNC bending with no tooling costs. Projects requiring 10,000+ units benefit from progressive die stamping's significantly lower per-unit pricing despite initial tooling investment.

Q：Can you handle rapid prototype development?

A：Absolutely. Our CNC capabilities produce functional prototypes in 1-2 weeks. You'll receive fully finished samples matching your specified surface treatments for thorough testing.

Q：What documentation do you provide for quality verification?

A：Complete material certifications (MTC), PPAP packages, and FAIR reports accompany OEM orders. CMM dimensional reports and salt spray test results document quality compliance.

Contact Us

Ready to optimize your structural assembly with precision mounting metal brackets? Our engineering team provides expert consultation on material selection, tolerance requirements, and cost-effective manufacturing approaches.
