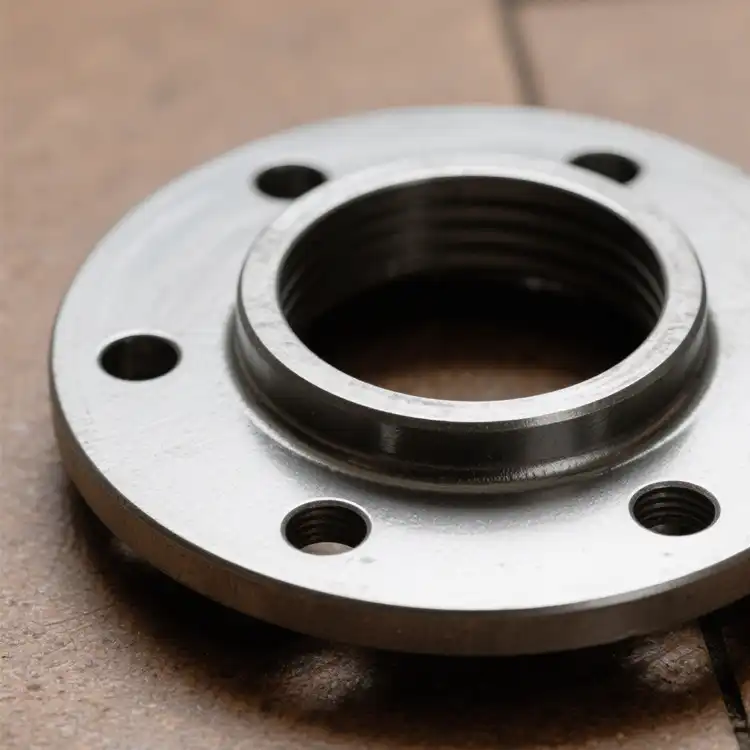

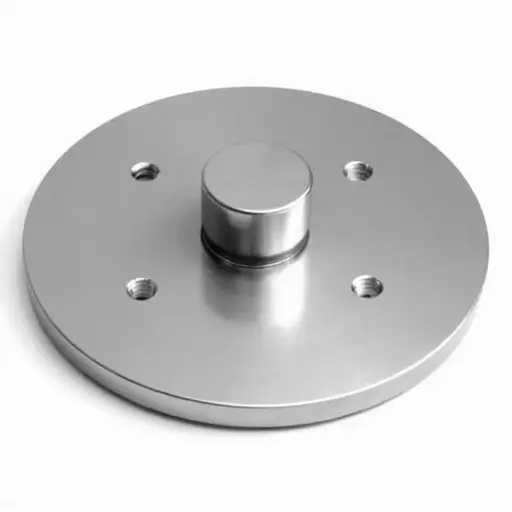

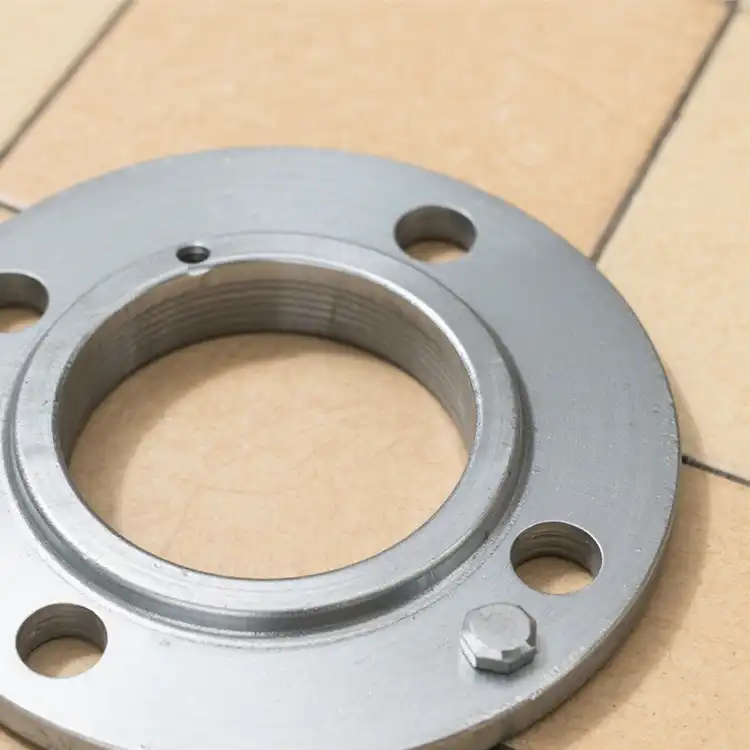

Steel Mount Floor Flange

Steel Mount Floor Flange - Heavy-Duty Industrial Mounting Solution

When your business needs to be completely stable, our Steel Mount Floor Flange provides enterprise-level anchoring that has been shown to work. These precision-engineered flanges are made by Qingdao RuiRui Machinofacture Co., Ltd. They are made of carbon steel and have thicknesses that range from 0.8mm to 30mm. We use modern CNC machining to keep tolerances as close as ±0.005mm and can produce up to 100 tonnes per day. We are ISO 9001:2015 certified. With more than 20 years of experience making things, we make sure that every flange goes through a strict dimensional check before it is shipped. Delivery times range from 20 to 45 days, and 70% of urgent orders are met faster. In safety-critical uses, each unit spreads vertical loads out over larger mounting surfaces. This keeps the substrate from getting damaged.

What Makes Our Floor Mounting Flanges Different?

You're not just buying a metal fitting. You're investing in structural integrity.

Our floor flanges solve three critical pain points you face daily:

Vibration Resistance

Heavy machinery creates constant movement. Standard fittings loosen over time. Our flanges feature machined flat-faced bases that maximize contact area. This design maintains perpendicularity even under cyclical stress.

Load Distribution Excellence

Point loads crack concrete and bend steel. Our circular and square baseplates spread forces evenly. You get reliable anchoring for vertical posts carrying significant axial and bending loads.

Corrosion Protection

Harsh environments destroy ordinary hardware fast. We apply hot-dip galvanizing meeting ASTM A153 standards. Black oxide finishes are available for indoor applications. Your installations stay secure for years.

Technical Specifications

Parameter	Specification
Material	Carbon Steel (ASTM A105 compatible)
Thickness Range	0.8mm - 30mm
Tensile Strength	Up to 70,000+ PSI
Tolerance	±0.005mm (CNC precision)
Surface Treatment	Hot-Dip Galvanizing / Black Oxide
Production Capacity	100 tons/day
Quality Standard	ISO 9001:2015 Certified
Lead Time	20-45 days (standard) / 1-2 weeks (prototypes)
Inspection	100% dimensional verification with CMM

Where Your Projects Benefit Most

Industrial Safety Systems

You need guardrails and handrails that won't fail. Our Steel Mount Floor Flange anchors safety barriers in chemical plants and warehouses. The high-impact resistance prevents structural failure when workers lean against railings. Corrosion-resistant finishes handle exposure to acids and alkaline solutions.

Heavy Piping Infrastructure

HVAC risers and process piping create enormous stress at mounting points. Our flanges secure large-diameter pipes to structural steel beams. They manage thermal expansion without loosening. Threaded NPT and BSP options eliminate field welding requirements. You get faster installation with modular design.

Mezzanine Construction

Multi-level storage systems demand robust column supports. These flanges distribute weight from vertical posts across concrete and steel decking. Your mezzanine structure remains stable under forklift traffic and dynamic loading. Precise bolt patterns align with standard structural steel dimensions.

Equipment Mounting Platforms

Machinery bases require solid foundations. Our flanges create reliable connection points for pump stands, compressor frames, and processing equipment. The machined surfaces ensure level installation. This reduces vibration transmission and extends equipment life.

Manufacturing Excellence You Can Trust

Precision CNC Machining

We operate 20+ CNC machines including 3/4/5-axis milling centers. Every flange undergoes computer-controlled manufacturing. This guarantees consistent hole patterns and flat mounting surfaces. You receive components that fit correctly the first time.

Material Traceability

Each production batch includes material certification. We source carbon steel from verified suppliers. Heat treatment processes enhance ductility and impact resistance. Your flanges won't crack under installation torque like brittle cast iron alternatives.

Quality Control Process

Our inspection protocol includes:

· First article inspection before full production

· Batch sampling per AQL standards

· CMM dimensional verification

· Surface finish testing

· Full documentation with material test certificates

Only products meeting all quality checkpoints reach your facility.

Factory-Direct Advantages

As the source manufacturer, we control every production step. You avoid middleman markups. Our clients report 20-30% cost savings compared to trading companies. Direct communication with our engineering team speeds up custom modifications.

Why Choose Qingdao RuiRui for Your Flange Needs?

Two Decades of Manufacturing Heritage

Since 2008, we've produced metal components for automotive, industrial machinery, and construction sectors. Our experience translates to better design recommendations for your specific application.

One-Stop Production Capability

From raw material procurement through final testing, everything happens in-house. We handle material sourcing, CNC machining, surface treatment, and export packaging. This integrated approach ensures faster lead times.

Strategic Location Benefits

Our Qingdao facility sits near major port infrastructure. International shipping becomes simpler and more cost-effective. We offer EXW, FOB, and DDP terms to match your logistics preferences.

Flexible Order Quantities

Whether you need prototype quantities or mass production, we accommodate your volume. Zero MOQ policy supports product development phases. Our 100-ton daily capacity handles large orders without delays.

Engineering Support

Our R&D team provides design-for-manufacturability analysis. Send your CAD files in STEP, IGES, or X_T formats. Within 48 hours, you'll receive pricing and technical feedback. We help optimize designs for better performance and lower costs.

FAQ

What is the difference between a malleable iron flange and this product?

Our steel flanges offer significantly higher ductility and impact resistance. They're weldable and less prone to cracking under extreme tension. Malleable iron becomes brittle in cold temperatures and can fail without warning.

Can these flanges work in marine environments?

Yes, when manufactured from 316-grade stainless steel or treated with specialized marine coatings. Standard galvanized versions suit most industrial indoor applications. Contact us to specify corrosion requirements for your environment.

How do I determine the correct bolt pattern?

Bolt patterns follow standard pipe sizes. For custom applications involving unusual loads or substrates, our engineering team calculates patterns based on shear strength requirements. Share your installation details for specific recommendations.

Are these flanges rated for high-pressure steam applications?

Structural mounting flanges differ from pressure-rated pipe flanges. For steam containment, you need forged steel flanges meeting ASME B16.5 pressure ratings. Our products excel at securing pipes and posts to mounting surfaces rather than containing internal pressure.

What salt spray test rating does galvanizing provide?

Hot-dip galvanizing typically achieves 500-1000 hours in neutral salt spray testing per ASTM B117. This translates to years of outdoor service life. Actual performance depends on coating thickness and environmental exposure.

Can you customize dimensions for unique projects?

Absolutely. Our CNC capabilities handle custom base diameters, bolt hole configurations, and thickness requirements. Minimum order quantities apply to custom tooling setups. Share your specifications for detailed quotation.

What documentation comes with each order?

Standard shipments include material test certificates and dimensional inspection reports. For OEM clients, we provide PPAP documentation and FAIR reports. All paperwork supports quality verification and compliance tracking.

Contact Us

Ready to secure your infrastructure with Steel Mount Floor Flange? Our engineering team is standing by to assist with technical specifications and pricing.

Contact us now:kshdhardware@qdkshd.com
